Запчасти Case IH 685 (07-132) - TORQUE AMPLIFIER LEVER AND CONNECTIONS (04) - Drive Train

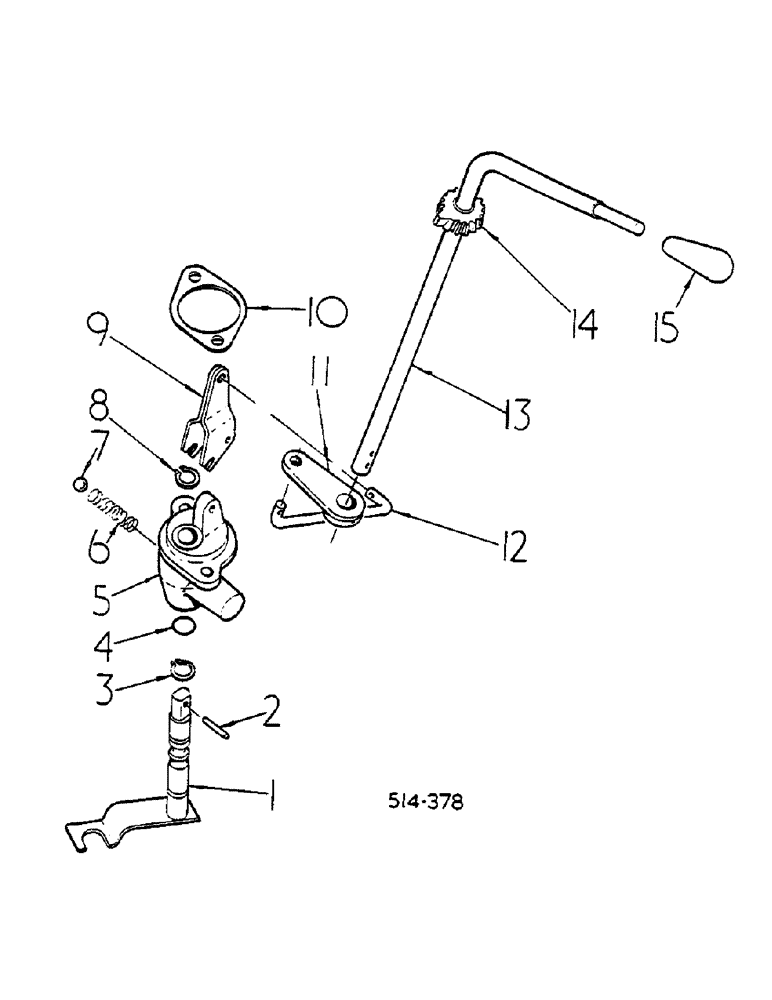

Схема запчастей Case IH 685 - (07-132) - TORQUE AMPLIFIER LEVER AND CONNECTIONS (04) - Drive Train
4
9
10
13
1
8
7
3
15
5
14
2
11
6
12

Артикул

Название

Примечание

Количество

1

531553R1

LEVER ASSY.

TA CONTROL

1шт.

2

20702R1

DOWEL,3/16" x 3/4"

PIN 3/16 X 3/4

1шт.

3

309032R1

SNAP RING,#62, Ext

TA control shaft #62, Ext

1шт.

4

370920R1

O-RING,1/2" ID

1/2 X 5/8 X 1/16

1шт.

5

402595R2

SUPPORT

TA CONTROL SHAFT, INCLUDES SCREWS AND WASHERS

1шт.

1093107R5

CATALOG

2шт.

103320

LOCK WASHER,5/16"

2шт.

6

402596R1

SPRING

TA CONTROL

1шт.

7

17014R1

BALL

7/16 CR STL

1шт.

8

309032R1

SNAP RING,#62, Ext

TA control shaft #62, Ext

1шт.

9

402589R1

LEVER ASSY.

TA CONTROL, INCLUDES PINS AND WASHER

1шт.

22731D

SPLIT PIN/SAFETY PIN

1/4 X 29/32 ROD END

1шт.

16558R1

WASHER

17/64 X 5/8 X .036

1шт.

107761

COTTER PIN,1/16" x 5/8"

1шт.

10

401623R1

GASKET

TA CONTROL SHAFT SUPPORT

1шт.

11

402585R1

ARM

TA CONTROL, INCLUDES PIN

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

12

402588R1

ROD

TA CONTROL, INCLUDES WASHER AND PIN

1шт.

95-11028

WASHER,1/4"

9/32 X 5/8 X .051

2шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

13

1500441C1

ARM

T.A., CAB NO 183150 UP, SUPER DE-LUXE CAB ONLY

1шт.

13

3121402R1

ROD

TA CONTROL HANDLE, INCLUDES CLUTCH, SHAFT AND BUSHING

1шт.

3125534R1

CLUTCH ASSEMBLY

PIECE TA

1шт.

3125535R1

SHAFT HOUSING

1шт.

3125536R1

BUSHING

UP TO CAB NO 183149, STILL REQ'D FOR M/C'S WITHOUT SUPER DE-LUXE CAB

1шт.

14

528290R1

GUIDE RING

COLLAR, TA CONTROL HANDLE, INCLUDES SCREW

1шт.

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

8-32 X 3/8 HEX HD SOC F PT

1шт.

15

3129518R1

KNOB

T.A. CONTROL HANDLE ROD, CAB NO 183150 UP, SUPER DE-LUXE CAB ONLY

1шт.

15

402584R1

BUTTON

KNOB, TA CONTROL HANDLE ROD, UP TO CAB NO 183149, STILL REQ'D FOR M/C'S WITHOUT SUPER DE-LUXE CAB, INCLUDES WASHER AND PIN

1шт.

Q5035

WASHER

1/2 X 1 X 1/16

1шт.

103384

COTTER PIN,1/8" x 3/4"

1/8 X 1

1шт.

533594R1

DECAL

TA CONTROL, NOT ILLUSTRATED

1шт.

1093384R1

PRODUCT GRAPHIC

DECELERATION WARNING, NOT ILLUSTRATED

1шт.

Выбрано товаров: 33
