Запчасти Case IH 685 (07-119) - DRIVE CONTROL AND FOOT-N-INCH VALVE TUBING, TRACTORS FITTED WITH HAND SPEED CONTROLS (04) - Drive Train

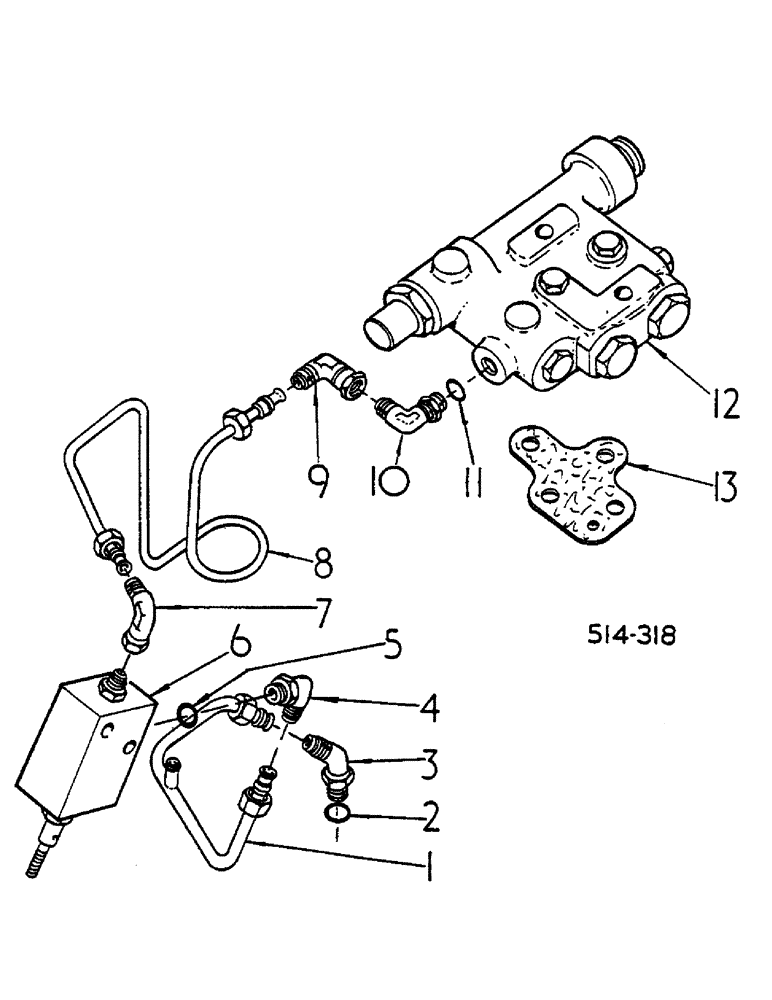

Схема запчастей Case IH 685 - (07-119) - DRIVE CONTROL AND FOOT-N-INCH VALVE TUBING, TRACTORS FITTED WITH HAND SPEED CONTROLS (04) - Drive Train
9
1
10
2
11
13
5
7
8
3
4
6
12

Артикул

Название

Примечание

Количество

1

529627R1

TUBE ASSY.

SPARE PART PILOT VALVE DUMP

1шт.

3

9411103

ELBOW,45 Degree, 1/2"-20, 37 Degree x 1/2"-20, O-Ring

1/2-20 C-Z 37 DEG YD FLARED TUBE ADJ STR THD 45 DEG HS DRIVE UNIT

1шт.

4

9410975

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, O-Ring

1/2-20 C-Z 37 DEG HYD FLARED TUBE ADJ STR THD 90 DEG FOOT-N-INCH

1шт.

6

398705R91

VALVE

ASSY, FOOT-N-INCH, FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF FOOT-N-INCH VALVE, INCLUDES SCREWS, WASHERS AND NUTS

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW 3/8-16 X 2 ZND HEX-HD CAP

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

7

9410278

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

UNION, 7/16-20 C-Z 37 DEG HYD FLARED TUBE 90 DEG SWIVEL PILOT VALVE PRESSURE

1шт.

8

3116968R1

TUBE ASSY.,0.25" OD, 6.54, 9.5" Length

PILOT VALVE PRESSURE

1шт.

9

9410278

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

7/16-20 C-Z 37 DEG. HYD FLARED

1шт.

10

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

7/16-20 C-Z 37 DEG HYD FLARED TUBE ADJ STR THD 90 DEG DRIVE CONTROL

1шт.

12

401852R91

LOCK VALVE

ASSY, DRIVE CONTROL, FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF DRIVE CONTROL VALVE, INCLUDES O-RING

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 X 3/4 X 3/32

1шт.

13

405032R1

GASKET

DRIVE CONTROL VALVE, INCLUDES SCREWS, PINS AND WASHER

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW 3/8-16 X 3 ZND HEX-HD CAP

2шт.

42947V

CLEVIS PIN,1/4" x 1 1/8"

1/4 X 1-1/8 ROD END

1шт.

95-11028

WASHER,1/4"

9/32 X 5/8 X .051

1шт.

103362

COTTER PIN,1/16" x 3/4"

1шт.

2

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5/16 OD tube, Foot-n-inch valve

1шт.

5

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5/16 OD tube

1шт.

11

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube, Drive control valve

1шт.

Выбрано товаров: 21
