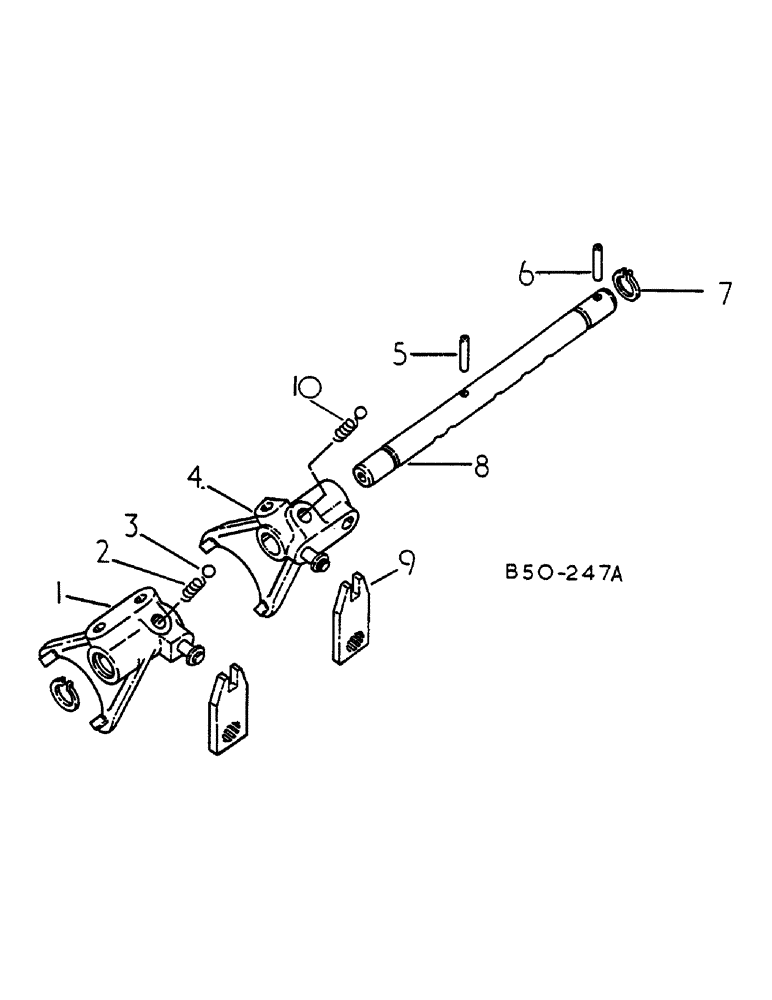

Запчасти Case IH 685 (07-104) - GEAR SHIFT MECHANISM, 685 SLOW AND FAST SPEED (04) - Drive Train

1

538911R4

FORK

FRONT

1шт.

2

534053R1

SPRING

POPPET BALL

1шт.

3

17013R1

BALL,13/32" Dia

Optional w/16013R1

2шт.

3

16013R1

BALL

13/32 CR-STL, OPTIONAL W/17013R1

2шт.

4

538912R4

FORK

REAR, SYCHROMESH DRIVE TRACTORS

1шт.

5

20122R1

PIN,1/4" x 1 1/2", Coiled

1шт.

6

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

7

661652R1

SNAP RING,#75, Ext

Shift fork rail

3шт.

8

537473R1

RAIL ASSY.

RANGE SHIFT FORK, SYNCHROMESH DRIVE TRACTORS

1шт.

9

405169R2

ARM

RANGE SHIFT INNER, INCLUDES NUTS

2шт.

19605R1

LOCK NUT,1/2"-13, GB

1/2 PLN P/T LOCK TYPE 5

2шт.

10

534053R1

SPRING

POPPET BALL

1шт.
