Запчасти Case IH 685 (07-069) - REAR AXLE, CARRIER AND CONNECTIONS (04) - Drive Train

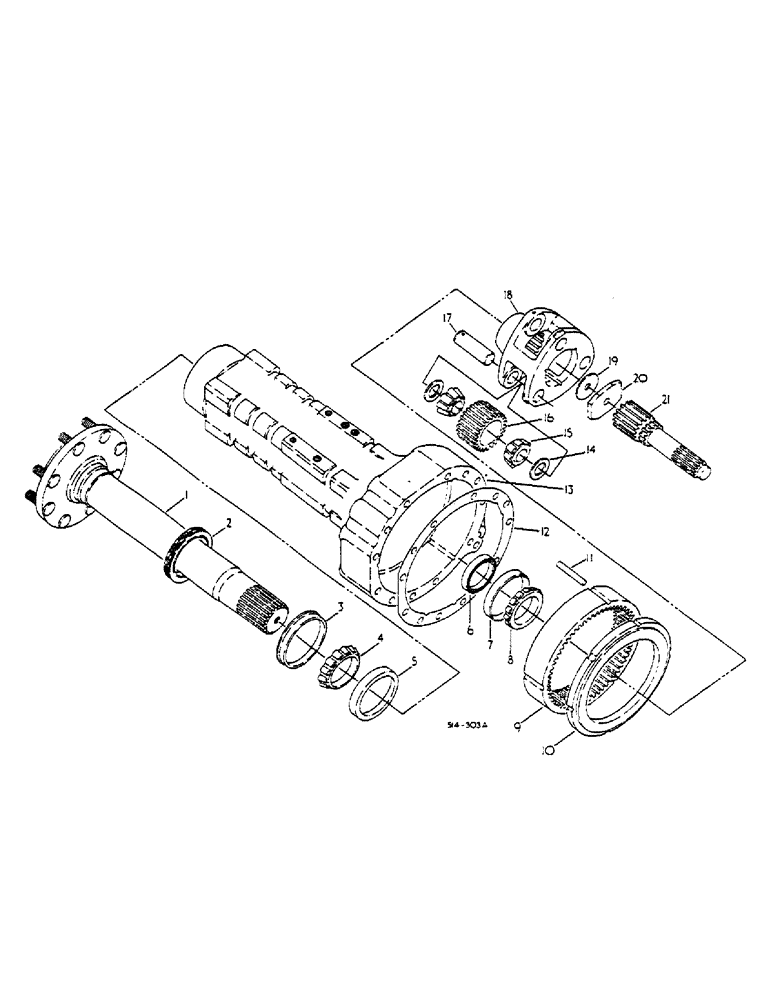

Схема запчастей Case IH 685 - (07-069) - REAR AXLE, CARRIER AND CONNECTIONS (04) - Drive Train
3
14
19
20
2
17
12
21
4
9
5
13
16
15
1
7
8
6
10
11
18

Артикул

Название

Примечание

Количество

1

539275R91

4WD AXLE ASSY

REAR, INCLUDES BOLTS AND NUTS

2шт.

539276R1

BOLT (SPREADER)

REAR WHEEL

16шт.

3047575R2

NUT,Wheel, 5/8"-18

REAR WHEEL

16шт.

1

528441R12

4WD AXLE ASSY

REAR, TRACTORS W/HAND-OPERATED DRUM BRAKE, INCLUDES BOLTS AND SCREWS

2шт.

528440R2

BOLT

REAR WHEEL

16шт.

NLS

NO LONGER SERVICED

5/16-18 X 1 SLT-F-HD MACH

4шт.

1

527353R11

AXLE, REAR

AXLE REAR ASSY, ROW CROP

2шт.

2

105471C1

OIL SEAL

REAR AXLE OUTER

2шт.

3

399796R1

SLEEVE

SLEEVE, WEAR

2шт.

4

ST2130

BEARING ASSY,3.0625" ID x 4.7812" OD x 0.9688"

ASSY, REAR AXLE OUTER

2шт.

4

384695R91

BEARING ASSY

ASSY, REAR AXLE OUTER

2шт.

4

384734R91

BEARING ASSY,4.7812" ID x 3.0625" OD x 0.9688, 0.6875"

ASSY, REAR AXLE OUTER, OPTIONAL

2шт.

5

BEARING ASSY, REAR AXLE CUP, ORDER ST 2130 OR 384695R91 OR 384734R91

2шт.

6

399798R91

OIL SEAL

REAR AXLE INNER

2шт.

6

530102R91

OIL SEAL

REAR AXLE INNER, OPTIONAL

2шт.

7

BEARING, REAR AXLE INNER CUP, ORDER 972467R91 OR 399799R91

2шт.

8

972467R91

BEARING ASSY

ASSY, REAR AXLE INNER

2шт.

8

399799R91

BEARING ASSY,2.75" ID x 4.4375" OD x 1, 0.75"

ASSY, REAR AXLE INNER, OPTIONAL

2шт.

9

535317R1

GEAR, RING

RING, GEAR 66T

2шт.

10

114620C1

RING,260mm OD

BRAKE OUTER DISC

2шт.

11

529686R1

DOWEL

PIN

6шт.

12

399762R3

GASKET

REAR AXLE CARRIER

2шт.

13

399801R2

AXLE CARRIER

REAR L.H.

1шт.

13

528444R2

AXLE CARRIER

REAR L.H., TRACTORS W/HAND-OPERATED DRUM BRAKE

1шт.

13

399803R2

AXLE CARRIER

REAR R.H.

1шт.

13

528445R2

AXLE CARRIER

REAR R.H., TRACTORS W/HAND-OPERATED DRUM BRAKE, INCLUDES SCREWS

1шт.

20665R1

BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 8

5/8-11 X 4-1/4 HEX HD CAP TYPE 8

22шт.

13

527355R1

AXLE CARRIER

REAR LH

1шт.

13

527356R1

AXLE CARRIER

REAR RH, ROW CROP

1шт.

13

20487R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

20шт.

13

25926R1

BOLT,Hex, 5/8" - 11 x 6 1/4", Gr 8

5/8-11 X 6-1/2 HEX HD CAP

2шт.

14

65421C2

SHIM KIT

PACKAGE, PLANET GEAR SERVICE

1шт.

15

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

ASSY, PLANET GEAR

12шт.

16

66128C2

PINION

GEAR, PLANET

6шт.

17

399812R1

SHAFT

PIN, PLANET, INCLUDES PINS

6шт.

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.

18

114613C1

CARRIER

PLANET GEAR, ON ORDERS FOR 404344R2 FURNISH 114613C1 W/3 OFF 66128C2

2шт.

19

65422C2

PACKAGE

REAR AXLE RETAINER SHIM

1шт.

20

399748R1

SPACER

PLANET CARRIER RET, INCLUDES SCREWS

2шт.

20668R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

5/8-18 X 1-1/2 HEX HD CAP

2шт.

21

404343R1

SHAFT

PLANETARY DRIVE RH

1шт.

21

404342R1

SHAFT

PLANETARY DRIVE LH

1шт.

Выбрано товаров: 42
