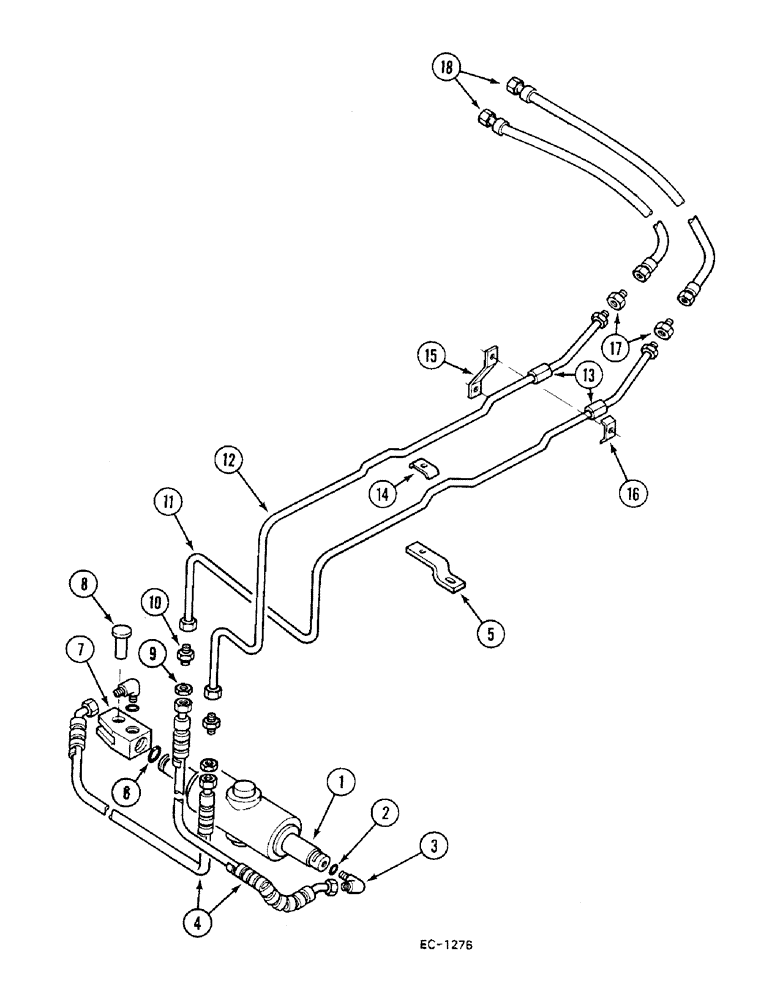

Запчасти Case IH 685 (5-258) - STEERING PIPES FRONT - 2 WHEEL DRIVE, 685 : 18001-, 885 : 18001- (05) - STEERING

1

NSS

NOT SOLD SEPARAT

CYLINDER ASSEMBLY, see power steering cylinder

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

2шт.

4

3121235R1

HOSE

ASSEMBLY

2шт.

5

99790C1

SUPPORT

BRACKET

1шт.

109084

NUT,1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

6

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

3125306R1

CLEVIS,9/16" - 18

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

LUBRICATOR

1шт.

8

3125305R1

PIN

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

9

9403293

LOCK NUT,Blkhd, 9/16"-18

2шт.

115553

LOCK WASHER,Int Tooth, 5/8"

2шт.

10

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

11

99426C1

PIPE

TUBE ASSEMBLY, left

1шт.

12

99425C1

PIPE

TUBE ASSEMBLY, right

1шт.

13

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve

2шт.

14

529644R11

CLAMP

ASSEMBLY

1шт.

NLS

NO LONGER SERVICED

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

95-11028

WASHER,1/4"

1шт.

15

1500313C1

SUPPORT

BRACKET ASSEMBLY

1шт.

16

529644R1

CLAMP

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

933833R1

LOCK WASHER,M6

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

17

99713C1

FITTING

UNION

2шт.

18

99784C1

HOSE

2шт.
