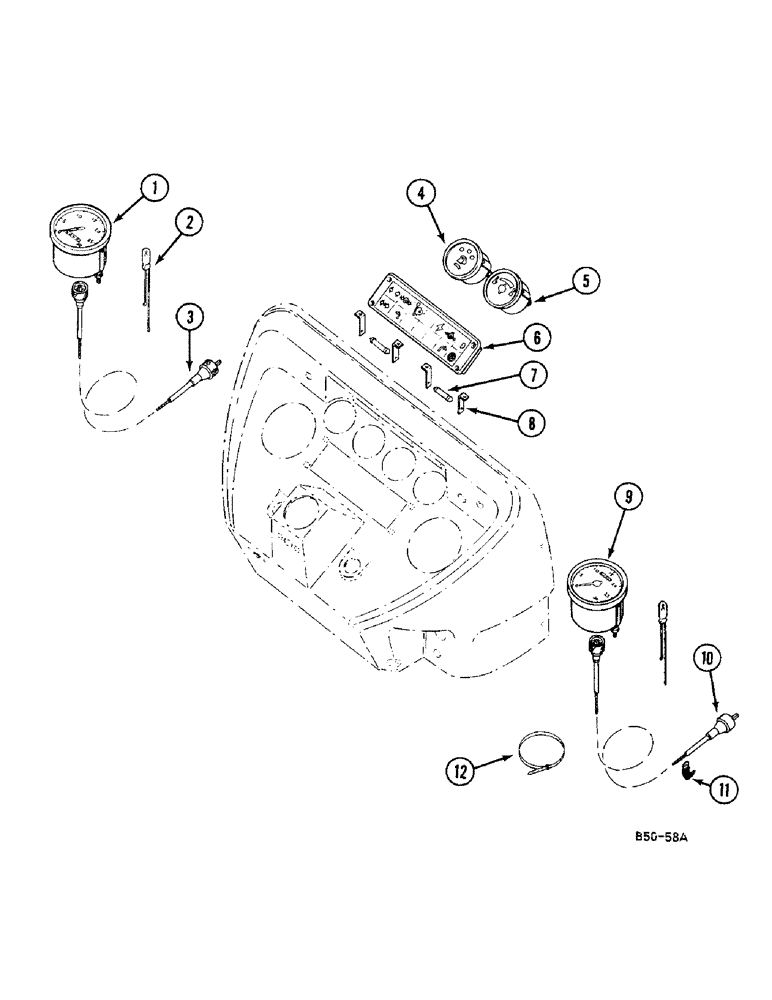

Запчасти Case IH 685 (4-242) - INSTRUMENTS (04) - ELECTRICAL SYSTEMS

1

3125106R92

TACHOMETER

1шт.

3121927R91

TACHOMETER

TACHOMETER

1шт.

528364R92

TACHOMETER

optional

1шт.

1093093R1

DECAL

PRODUCT GRAPHIC mph, row crop

1шт.

1093095R1

DECAL

PRODUCT GRAPHIC mph

1шт.

1093225R1

DECAL

PRODUCT GRAPHIC km/h, drive train, BT

1шт.

1288014C1

DECAL

PRODUCT GRAPHIC mph

1шт.

1288015C1

PRODUCT GRAPHIC

km/h, drive train, DT, for tires 13.6/12-36, 13.6/12-38, 13.6R36, 13.6R38, 16.9/14-30, 16.9/14-34, 18.4/15-30, 18.4R30

1шт.

1093093R1

DECAL

PRODUCT GRAPHIC mph

1шт.

1093094R1

DECAL

PRODUCT GRAPHIC km/h, drive train BT

1шт.

1288010C1

PRODUCT GRAPHIC

mph

1шт.

1288011C1

PRODUCT GRAPHIC

km/h, drive train DT, for tires 12.4/11-38, 13.6/12-36, 13.6/12-38, 13.6R36, 138.R38, 16.9/14-34, 18.4/15-30

1шт.

1093221R1

DECAL

PRODUCT GRAPHIC mph

1шт.

1093222R1

DECAL

PRODUCT GRAPHIC km/h, drive train, BT

1шт.

1288012C1

PRODUCT GRAPHIC

mph

1шт.

1288013C1

PRODUCT GRAPHIC

km/h, drive train DT for tires 14.9/13-30, 16.9/14-30

1шт.

2

3123661R1

HOLDER

LAMP ASSEMBLY

1шт.

529233R1

LAMP

12V 3W

7шт.

3

529234R1

CABLE,1480.32mm L

CABLE ASSEMBLY

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

2шт.

4

3121239R1

FUEL GAUGE

ASSEMBLY, AC Delco

1шт.

4

3129840R1

FUEL GAUGE

ASSEMBLY, fuel, Icknield, optional

1шт.

5

3121240R1

ELECTRICAL GAUGE

ASSEMBLY, AC Delco, used with P/N 3073787R91

1шт.

5

3127959R2

GAUGE

ASSEMBLY, water temperature, Icknield, used with P/N 3127956R1

1шт.

6

1502006C2

HOUSING

1шт.

3121718R1

SCREW

4шт.

3121717R1

LOCK NUT

4шт.

529233R1

LAMP

12V 3W

6шт.

7

710196R1

BULB,C5W, 12V, 5W

2шт.

8

3121705R1

CONTACT HOUSING

4шт.

3121704R1

SCREW

4шт.

3121703R1

TERMINAL CONNECTOR

4шт.

9

not used

1шт.

10

not used

1шт.

11

not used

1шт.

12

not used

1шт.
