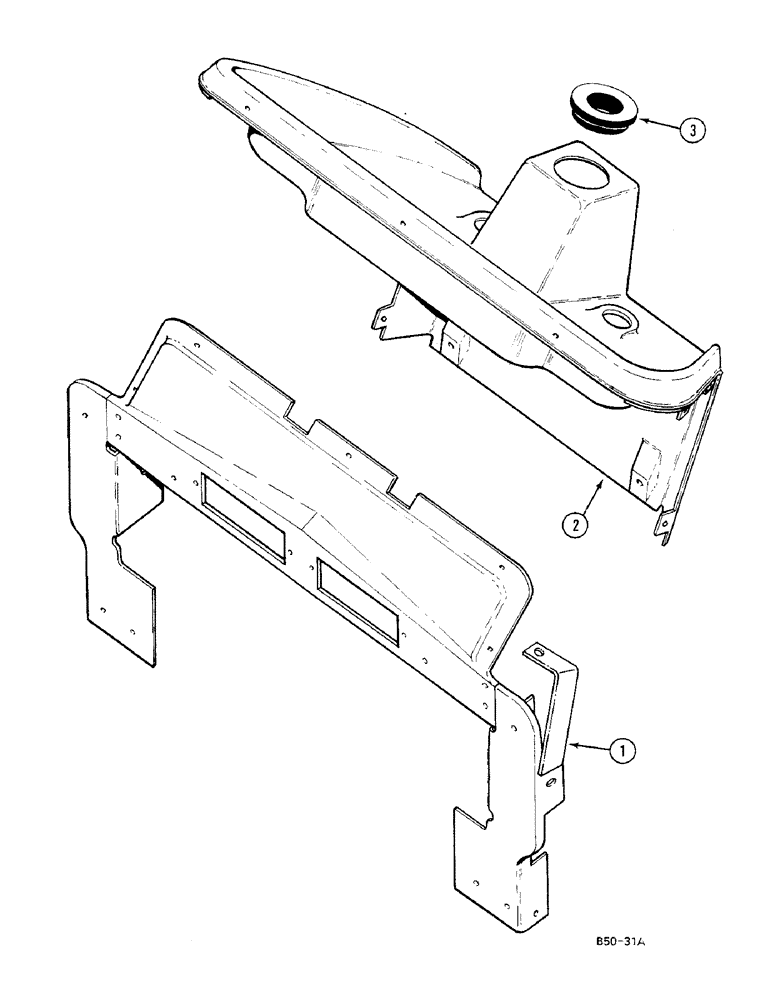

Запчасти Case IH 685 (4-238) - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

3123667R93

PLATE ASSY.

version with cab

1шт.

1

3125771R92

PLATE ASSY.

version without cab, Includes: P/N's 3121684R4, 3123171R1, 24394R1, 23985R1, 179814, 102634, 103320, and 3123171R1

1шт.

3121684R4

PLATE

1шт.

3123171R1

NUT

7шт.

24394R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

4шт.

23985R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

3шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

103320

LOCK WASHER,5/16"

4шт.

3123171R1

NUT

7шт.

2

1500972C3

PANEL, INSTRUMENTS

PANEL, INSTRUMENT HOUSING, version with basic lighting

1шт.

2

1500973C3

HOUSING

version with De-luxe lighting

1шт.

160536

SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"

2шт.

23994R1

SELF-TAP SCREW,Hex Hd, #10 x 5/8"

3шт.

120391

WASHER,#10

3шт.

3125816R1

LENS

1шт.

3123774R1

INSULATOR

version with cab

1шт.

3

3123366R1

PLUG

1шт.

3113429R1

PLUG

blanking, torque amplifier control, not illustrated

1шт.

538239R1

PLUG

blanking, horn switch, not illustrated

1шт.

538240R1

PLUG

blanking, cigarette lighter, not illustrated

1шт.

3114406R1

PLUG

blanking, ignition, not illustrated

1шт.

3113429R1

PLUG

blanking, parking brake warning, not illustrated

1шт.

3112888R1

PLUG

blanking, 13 mm, 2 speed powershift switch, not illustrated

1шт.

245918C1

LENS

PLUG blanking, 4 wheel drive switch, not illustrated

1шт.
