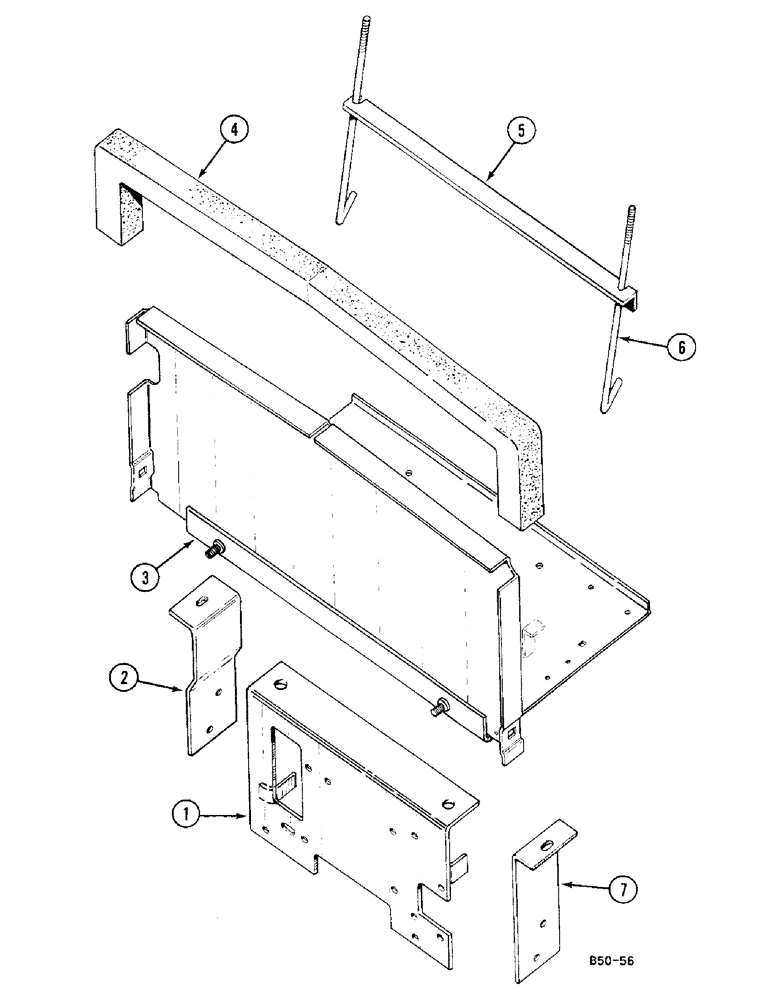

Запчасти Case IH 685 (4-230) - BATTERY TRAY, VERSION WITH CAB (04) - ELECTRICAL SYSTEMS

1

3123057R2

SUPPORT ASSY.

battery tray

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

2

1287804C2

SUPPORT

1шт.

2

3116893R1

SUPPORT

SPARE PART right

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

21872R1

WASHER

1шт.

3

3123055R2

TRAY ASSY.

1шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

20893R1

WASHER

2шт.

80681

LOCK WASHER,5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

3121629R1

NUT

2шт.

120393

BEARING WASHER,5/16", SAE

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

4

73217C1

FILLING STRIP

1220 mm, bulk length

1шт.

5

3121178R1

BRACKET

1шт.

6

527605R3

ROD

2шт.

120393

BEARING WASHER,5/16", SAE

2шт.

120376

NUT,5/16"-18, G5

2шт.

7

3116892R1

SUPPORT

left

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

21872R1

WASHER

1шт.

103319

LOCK WASHER,1/4"

Not Illustrated

1шт.

109084

NUT,1/4"-20, G5

Power Steering Pipe Clamp, Not Illustrated

1шт.

245300C1

WET BATTERY

Sonnak, wet charged, not illustrated

1шт.

528217R2

BATTERY, DRY

BATTERY DRY Chloride, not illustrated

1шт.

245299C1

WET BATTERY

Sonnak, dry charge, optional, not illustrated

1шт.

1502296C1

BATTERY, DRY

BATTERY DRY Chloride, Not illustrated

1шт.

245301C1

WET BATTERY

Sonnak, heavt duty dry charge, optional, not illustrated

1шт.

1502297C1

BATTERY, WET

BATTERY WET Chloride, not illustrated

1шт.

245302C1

WET BATTERY

Sonnak, wet charged, optional, not illustrated

1шт.
