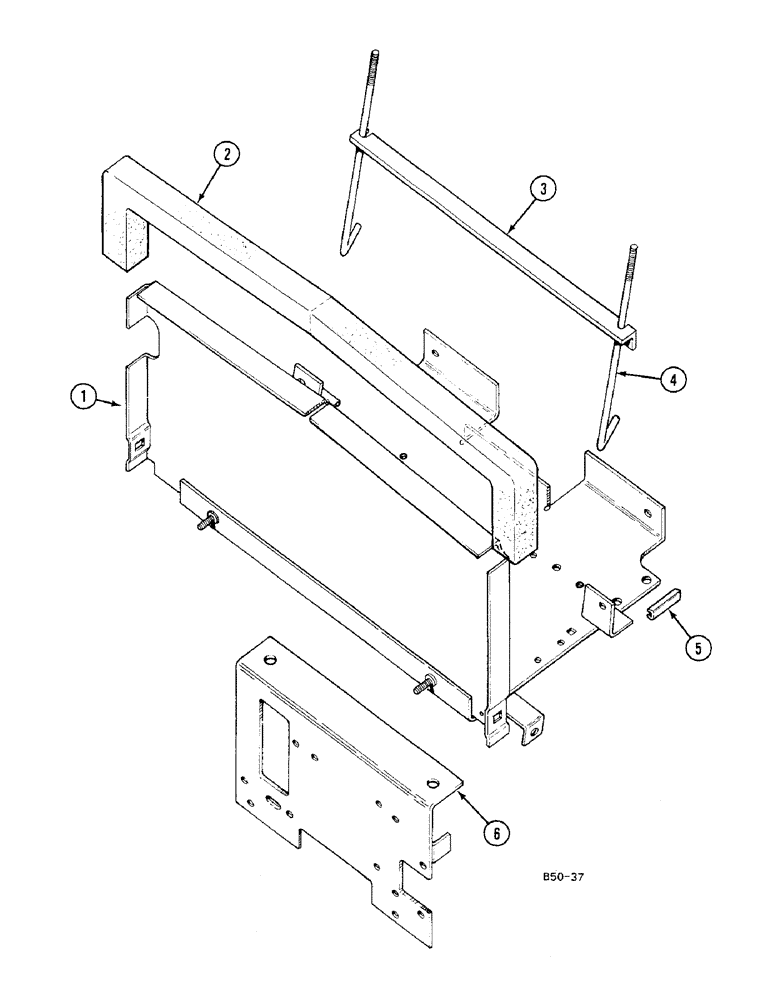

Запчасти Case IH 685 (4-226) - BATTERY TRAY, VERSION WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

3121626R1

TRAY ASSY.

1шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

20893R1

WASHER

2шт.

80681

LOCK WASHER,5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

120394

WASHER,3/8", SAE

2шт.

3121629R1

NUT

2шт.

2

73217C1

FILLING STRIP

1220 mm, bulk length

1шт.

3

3121178R1

BRACKET

1шт.

4

527605R3

ROD

2шт.

120393

BEARING WASHER,5/16", SAE

2шт.

120376

NUT,5/16"-18, G5

2шт.

5

3113841R1

MOLDING

1шт.

6

538054R2

SUPPORT

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

103319

LOCK WASHER,1/4"

Not Illustrated

1шт.

109084

NUT,1/4"-20, G5

Power Steering Pipe Clamp, Not Illustrated

1шт.

245300C1

WET BATTERY

Sonnak, wet charged, not illustrated

1шт.

528217R2

BATTERY, DRY

BATTERY DRY Chloride, not illustrated

1шт.

245299C1

WET BATTERY

Sonnak, dry charge, optional, not illustrated

1шт.

A186026

BATTERY, DRY

wet charged, maintenance free, not illustrated

1шт.

3125823R1

CLIP

CABLE, not illustrated

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Not Illustrated

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

Not Illustrated

1шт.

492-11025

LOCK WASHER,1/4"

Not Illustrated

1шт.
