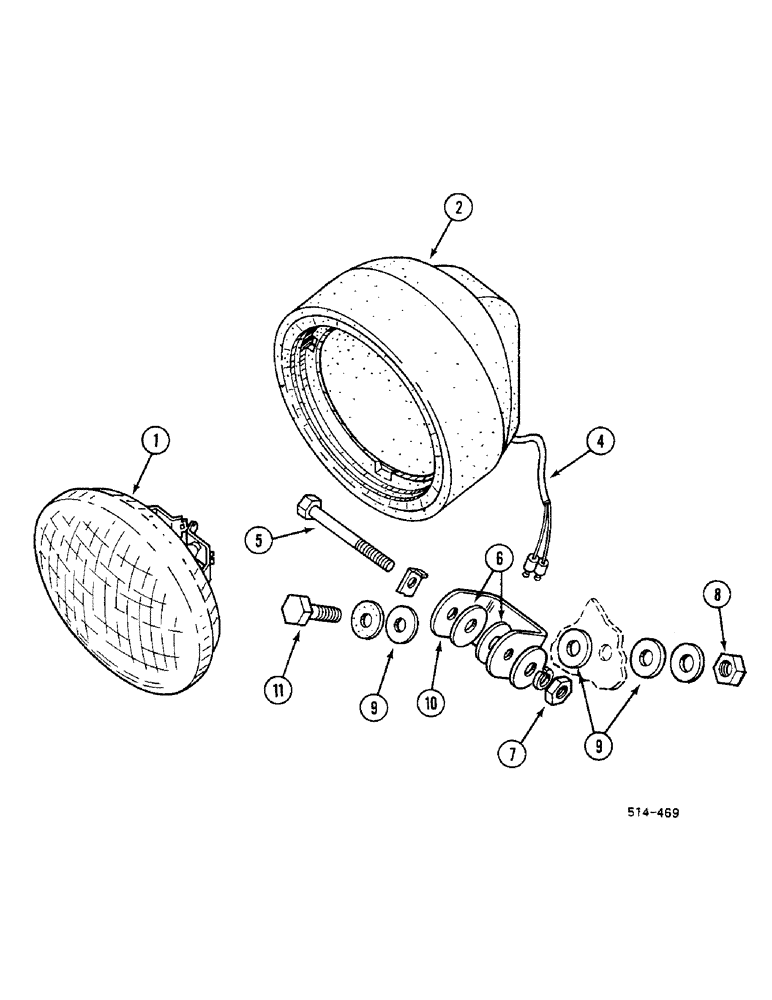

Запчасти Case IH 685 (4-210) - PLOUGH LAMP (04) - ELECTRICAL SYSTEMS

1

390756R91

LAMP

sealed beam

1шт.

2

3125880R1

HOUSING

not used

1шт.

4

HARNESS, Order P/N 3125880R1

1шт.

5

181579

SCREW,Hex, 1/4" - 28 x 2", Gr 5

BOLT

1шт.

3072945R1

WASHER

1шт.

6

3112690R1

WASHER

2шт.

7

120367

NUT,Hex, 1/4" - 28, Gr 5

1шт.

16559R1

WASHER,1/4"

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

8

231-1446

NUT,3/8" - 16, Gr 5

1шт.

120394

WASHER,3/8", SAE

1шт.

9

3112401R1

WASHER

3шт.

10

3108515R1

SUPPORT

BRACKET

1шт.

11

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

120394

WASHER,3/8", SAE

1шт.

3125881R1

BRACKET

not illustrated

1шт.

24374R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

Version with cab, Not illustrated

4шт.

531625R1

GROMMET

cable, not illustrated

1шт.

3115463R1

GROMMET

fender, version with flat top fenders, not illustrated

2шт.
