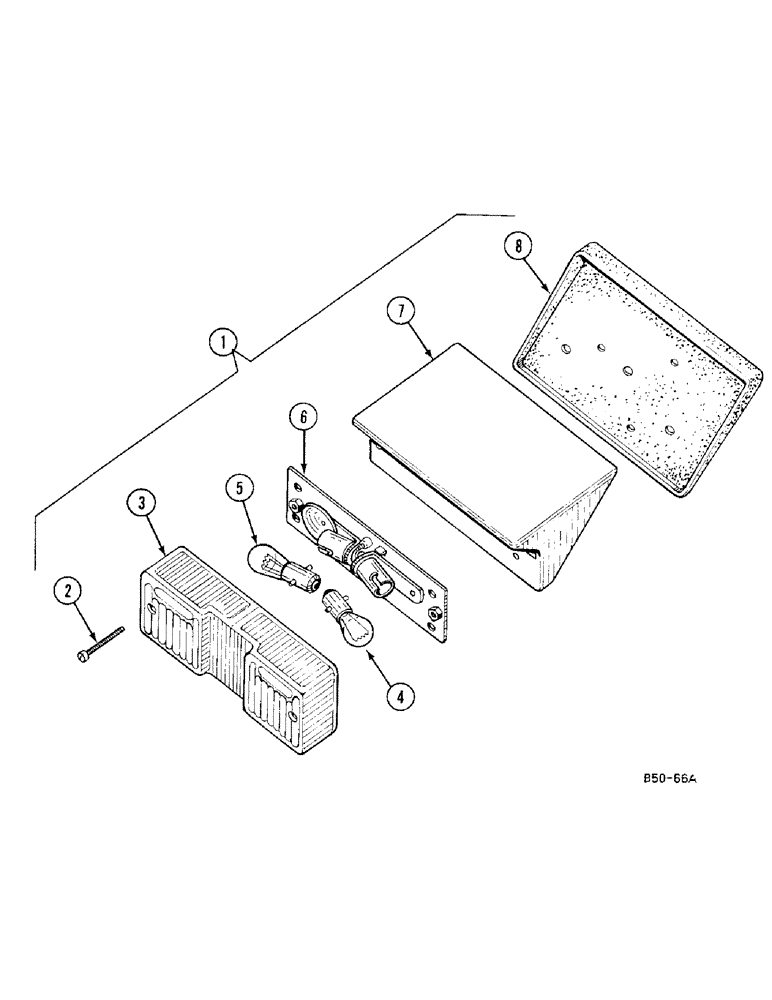

Запчасти Case IH 685 (4-204) - STOP TAIL AND FLASHER LIGHTS, VERSION WITH CAB, VERSION WITH FLAT TOP FENDERS DE-LUXE LIGHTING (04) - ELECTRICAL SYSTEMS

1

3123163R91

LAMP, TAIL

LIGHT, TAIL left

1шт.

1

3123164R91

LAMP, TAIL

LIGHT, TAIL right, flash, stop, tail, consists of: Refs. 2 through 8

1шт.

2

3125156R1

SCREW

4шт.

3112786R1

WASHER

4шт.

3

3115359R1

LENS

LENS

2шт.

4

3025210R91

BULB

LAMP, 12V/21W

2шт.

5

894878H1

BULB

LAMP, 12V 21/5W

2шт.

6

NSS

NOT SOLD SEPARAT

PLATE, order P/N 3123163R91, 3123164R91

2шт.

3125157R1

WASHER

4шт.

3125158R1

NUT

6шт.

121801

LOCK WASHER,Int Tooth, #10

2шт.

7

NSS

NOT SOLD SEPARAT

HOUSING, order P/N's 3123163R91, 3123164R91

2шт.

8

3125154R1

CUSHION

left

1шт.

8

3125155R1

CUSHION

right

1шт.
