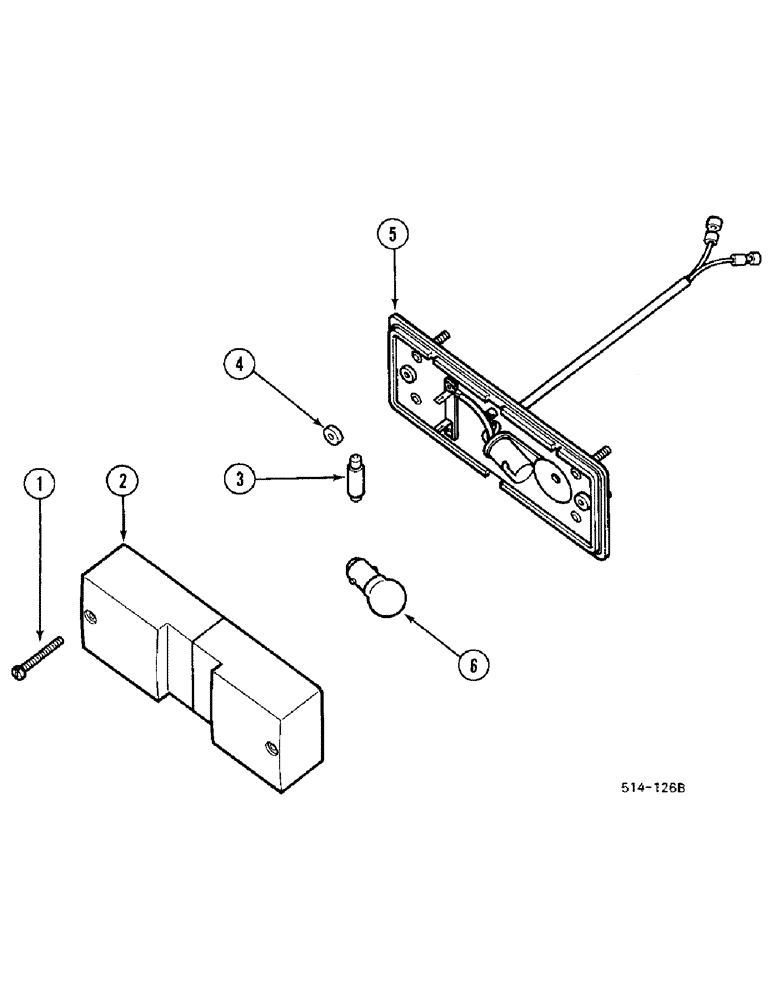

Запчасти Case IH 685 (4-200) - FENDER WIRING AND SIDE/FLASHER LIGHTS, VERSION W/CAB, VERSION W/FLAT TOP FENDERS DE-LUXE LIGHTING (04) - ELECTRICAL SYSTEMS

1502201C91

LIGHT

ASSEMBLY, Includes: Ref. 1 - 6

2шт.

1

3112785R1

SCREW

4шт.

2

3113395R1

LENS

2шт.

3

710196R1

BULB,C5W, 12V, 5W

2шт.

4

3112786R1

WASHER

4шт.

5

3125160R1

CUSHION

HOLDER ASSEMBLY

2шт.

120614

NUT,Hex, #10 - 32

8шт.

120217

LOCK WASHER,#10

8шт.

6

3025210R91

BULB

LAMP, 12V/21W

2шт.

1502204C1

HARNESS

not illustrated

1шт.

3125876R1

HARNESS

version with cab, not illustrated

1шт.

751627R1

CLIP

not illustrated

2шт.

3113661R1

GROMMET

not illustrated

2шт.

705897R1

CONNECTOR, ELEC

CONNECTOR right, not illustrated

2шт.

705897R1

CONNECTOR, ELEC

CONNECTOR for number plate light, not illustrated

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR version with cab, not illustrated

4шт.
