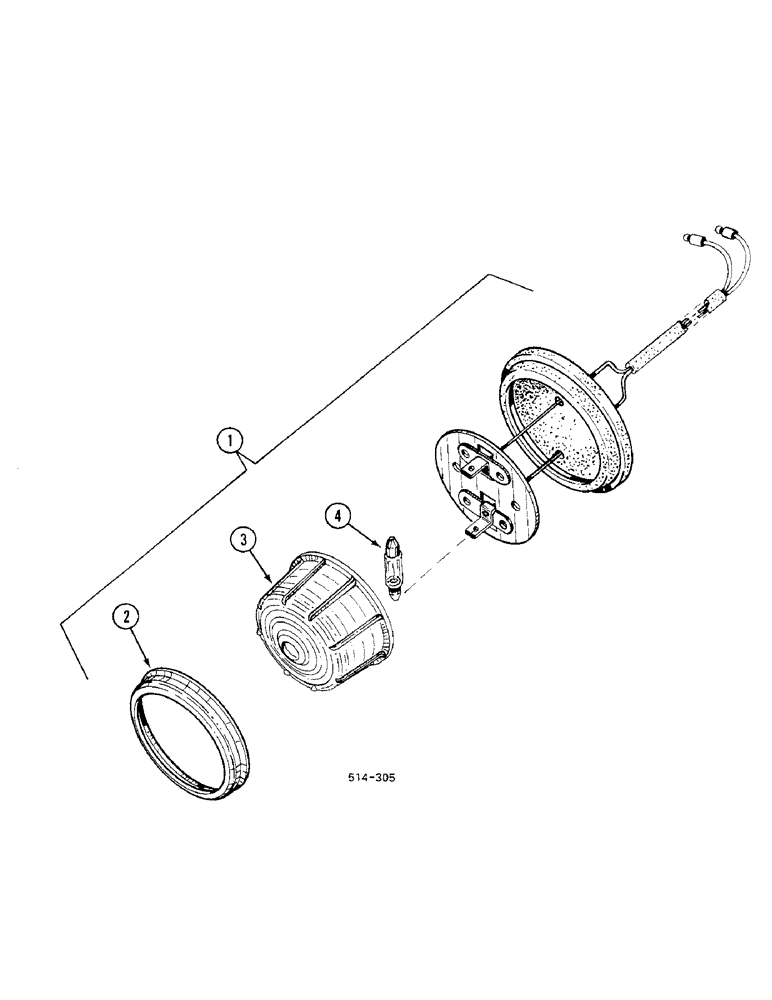

Запчасти Case IH 685 (4-196) - FENDER WIRING AND SIDE LIGHTS, VERSION WITH FLAT TOP FENDERS (04) - ELECTRICAL SYSTEMS

1

3123172R91

INDICATOR LIGHT

2шт.

263-5658

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

Includes: Refs. 2 - 4

4шт.

2

3118023R1

BEZEL

1шт.

3

3118022R1

LENS

1шт.

4

710196R1

BULB,C5W, 12V, 5W

1шт.

3113661R1

GROMMET

not illustrated

2шт.

3123187R1

HARNESS

not illustrated

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR left, not illustrated

4шт.

705897R1

CONNECTOR, ELEC

CONNECTOR right, not illustrated

6шт.

705897R1

CONNECTOR, ELEC

CONNECTOR for number plate light, not illustrated

1шт.

705896R1

CONNECTOR, ELEC

CONNECTOR for number plate light, not illustrated

1шт.

3112888R1

PLUG

blanking, 13 mm, not illustrated

2шт.

3113657R1

PLUG

blanking, not illustrated

4шт.
