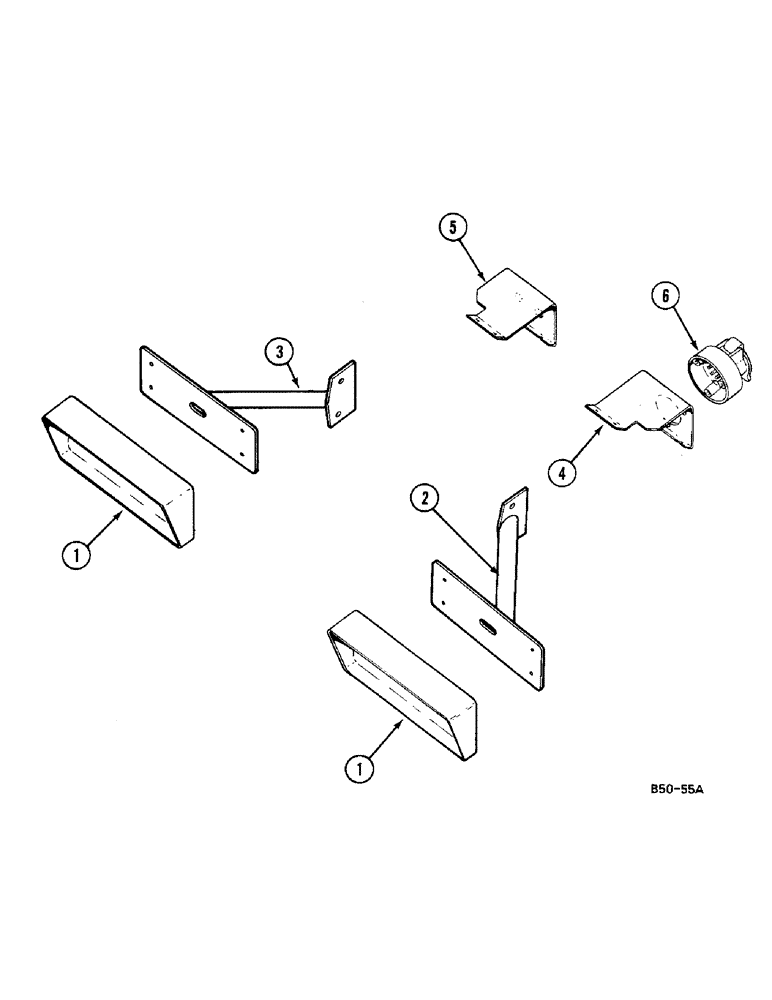

Запчасти Case IH 685 (4-192) - CAB LIGHT SUPPORTS AND 7 PIN SOCKET (04) - ELECTRICAL SYSTEMS

1

3123140R1

COVER

1шт.

2

1502202C1

SUPPORT ASSY.

left

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120423

LOCK WASHER,Int Tooth, 0.267" ID x 0.478" OD x 0.028"

2шт.

3

1502205C1

SUPPORT ASSY.

right

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120423

LOCK WASHER,Int Tooth, 0.267" ID x 0.478" OD x 0.028"

2шт.

4

3123184R1

BRACKET

left

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

4шт.

120217

LOCK WASHER,#10

Not Used

4шт.

6

3112294R91

SOCKET/RECEPTACLE

1шт.

27683R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/4"

3шт.

3123171R1

NUT

3шт.
