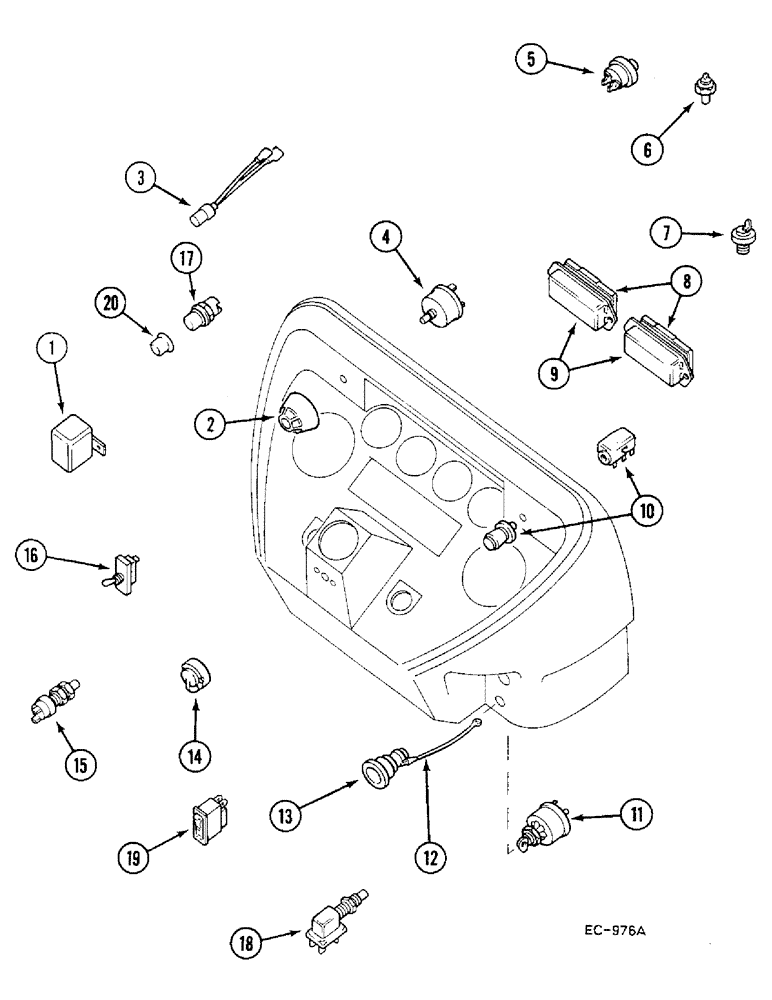

Запчасти Case IH 685 (4-186) - ELECTRICAL SWITCHES AND FUSES (04) - ELECTRICAL SYSTEMS

1

3118909R2

FLASHER UNIT

1шт.

2

1502379C1

KNOB

light switch with horn

1шт.

3

3125984R2

FLASHER UNIT

parking brake warning

1шт.

539015R1

CLIP

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

1шт.

4

107200C2

LIGHT SWITCH

light, with horn

1шт.

5

3224405R91

RESTRICTION SWITCH

air cleaner service

1шт.

6

3073787R91

TRANSMITTER

AC Delco, water temp.

1шт.

6

3127956R1

TEMPERATURE SENDER

Icknield, water temp.

1шт.

7

91450C1

SWITCH, PRESSURE

PRESSURE SWITCH ASSY, Engine oil

1шт.

8

3123157R1

COVER

fuse box

2шт.

9

3129948R1

BOX, FUSE

PACKAGE

1шт.

159929

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

4шт.

120217

LOCK WASHER,#10

4шт.

3118918R1

FUSE

10 amp

4шт.

142630

FUSE

5 amp, optional

4шт.

3115813R1

FUSE

35 amp

6шт.

3121403R1

FUSE

35 amp, optional

6шт.

10

3118917R92

FLASHER SWITCH

hazard warning

1шт.

11

3107556R92

SWITCH ASSY

1шт.

11

K962338

KEY

1шт.

534211R1

SPRING WASHER

1шт.

12

92090C1

HARNESS

CABLE ASSEMBLY, ground

1шт.

131222C1

FUSE

10 amp

1шт.

13

3121407R92

LIGHTER, CIGARETTE

1шт.

14

3072070R91

FLASHER SWITCH

1шт.

182-48

SCREW,Sl Pan Hd, #6 - 32 x 3/4"

SCREW

2шт.

3121717R1

LOCK NUT

2шт.

15

92161C2

PARK BRAKE SWITCH

Mesmer, parking brake warning

1шт.

16

3125854R1

SWITCH

1шт.

16

3121406R1

SWITCH

plough light, optional

1шт.

496-21047

WASHER

WASHER

1шт.

17

705266R91

HORN

HORN

1шт.

18

83907C1

SWITCH

2 speed power shift

1шт.

19

245909C1

SWITCH ASSY

30 kh/h, for 4 wheel drive tractors

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

82525C1

DECAL

SYMBOL

1шт.

20

1288026C1

COVER

horn switch

1шт.
