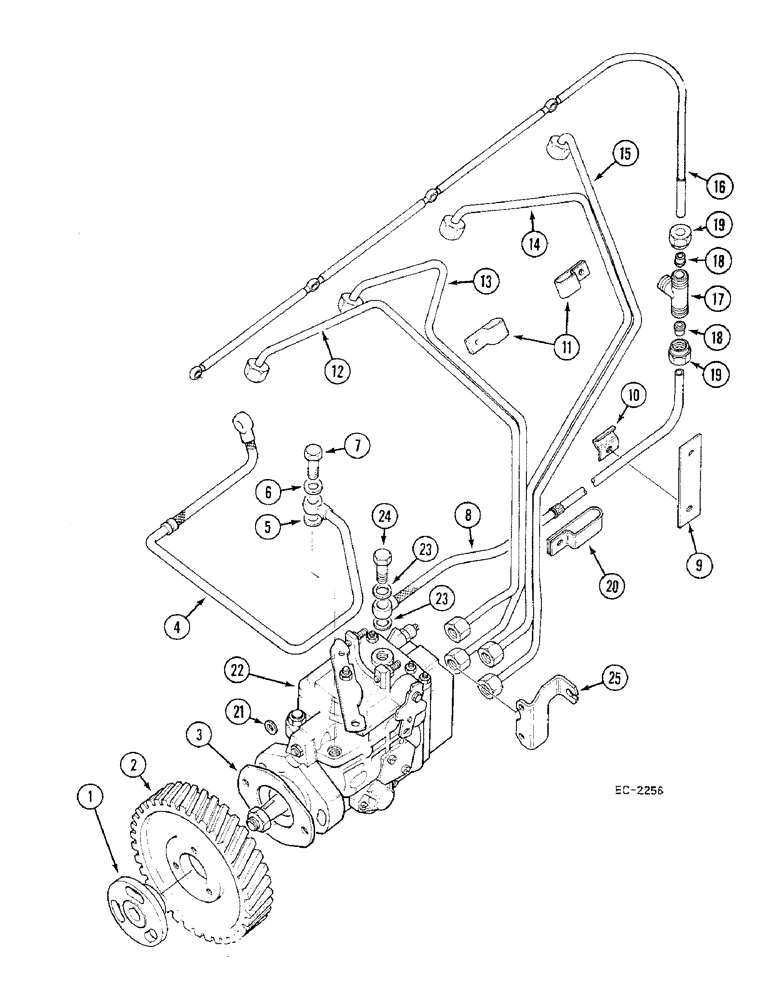

Запчасти Case IH 685 (3-126) - FUEL INJECTION TUBES AND PUMP GEAR (03) - FUEL SYSTEM

1

3055067R2

HUB

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

BOLT, 5/16 x 3/4 inch

1шт.

30183R1

WASHER,M8 x 21.5 x 2.5, HT

5/16 inch

1шт.

2

3056885R3

PINION

GEAR

1шт.

3

3055384R1

GASKET

1шт.

4

3228005R1

HOSE

1шт.

Version With VA Injection Pump

1шт.

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

hollow

1шт.

933610R1

SEALING RING,M14 x 18 x 1.8

1шт.

3132052R1

CLIP

CLAMP

1шт.

4

3132324R1

HOSE,8mm ID x 275mm L

flexible

1шт.

Version With VE Injection Pump

1шт.

5

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

6

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

1шт.

7

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

hollow

1шт.

8

3144382R1

TUBE ASSY.

PIPE

1шт.

Version With VA Injection Pump

1шт.

8

1329112C1

TUBE

PIPE

1шт.

Version With VE Injection Pump

1шт.

9

3132174R1

LINK

PLATE

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

1шт.

10

3055386R1

CLAMP

CLIP

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

3052189R1

BELLEVILLE WASHER

1шт.

11

3132770R1

COLLAR

1шт.

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

12

3218154R1

INJECTION PIPE

TUBE

1шт.

12

3218486R1

INJECTION PIPE

TUBE

1шт.

13

3218155R1

INJECTION PIPE

TUBE

1шт.

13

3218487R1

INJECTION PIPE

TUBE

1шт.

14

3218156R1

INJECTION PIPE

TUBE

1шт.

14

3218228R1

INJECTION PIPE

TUBE

1шт.

15

3218157R1

INJECTION PIPE

TUBE

1шт.

15

3218229R1

INJECTION PIPE

TUBE

1шт.

16

3218124R1

HOSE

flexible

1шт.

3218130R1

BANJO BOLT,Hex, M6 x 133.02mm

hollow

1шт.

933696R1

SEALING RING,M6 x 10 x 1

1шт.

17

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

1шт.

18

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

Ferrule

1шт.

19

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

1шт.

20

3132768R1

CLAMP

1шт.

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

21

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

1шт.

22

3144496R91

PUMP

see fuel injection pump

1шт.

Version With VA Injection Pump

1шт.

1329105C1

BOLT,M6 x 8mm, Cl 8.8

BOLT

1шт.

3050129R1

LOCK WASHER

WASHER lock, 5/16 inch

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

933981R1

NUT,M12 x 1.75, Cl 5

1шт.

933834R1

LOCK WASHER,M12

12 mm

1шт.

22

1329128C1

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY

1шт.

Version With VE Injection Pump

1шт.

1329163C1

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY

1шт.

1329105C1

BOLT,M6 x 8mm, Cl 8.8

BOLT

1шт.

3050129R1

LOCK WASHER

WASHER lock, 5/16 inch

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

933981R1

NUT,M12 x 1.75, Cl 5

1шт.

933834R1

LOCK WASHER,M12

12 mm

1шт.

23

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

1шт.

24

3059086R1

BANJO BOLT

SCREW hollow

1шт.

25

3228735R1

SUPPORT

1шт.

930679R1

HEX SOC SCREW,M6 x 25mm, Cl 8.8

1шт.

905176R1

WAVE WASHER,M6.4 ID x 11 OD x .5 Thk

1шт.
