(3-114) - TWIN FUEL FILTER - BOSCH, FOR TRACTORS WITH ENGINE S/N:-685 : 679147 885 : -063520

Запчасти Case IH 685 (3-114) - TWIN FUEL FILTER - BOSCH, FOR TRACTORS WITH ENGINE S/N:-685 : 679147 885 : -063520 (03) - FUEL SYSTEM

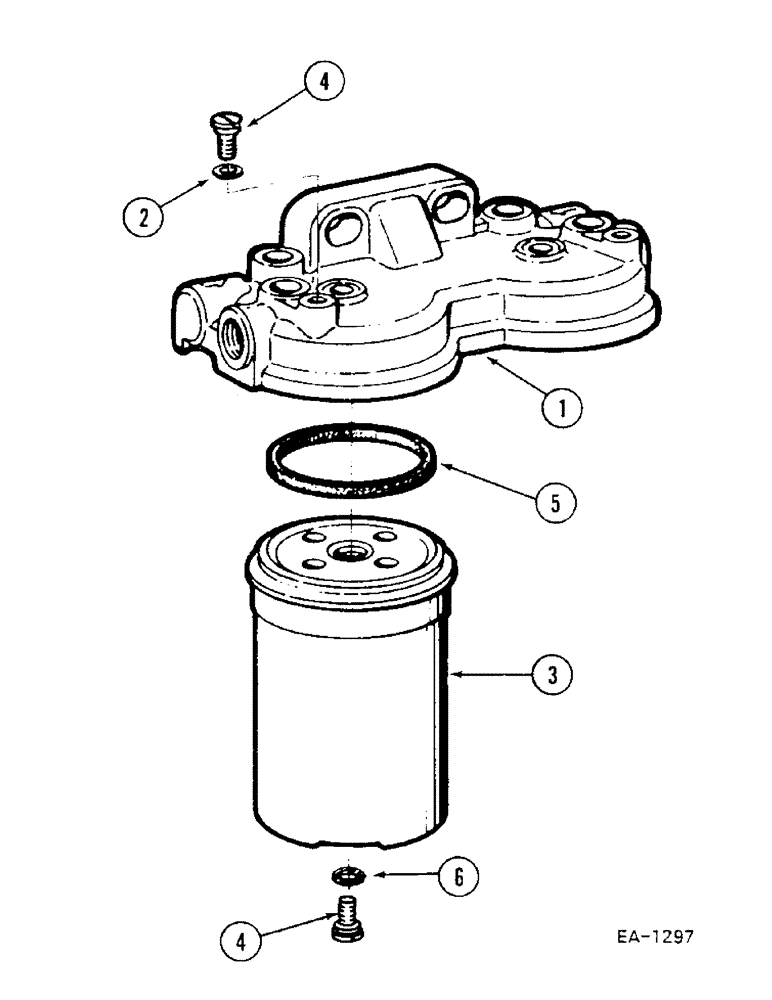

Схема запчастей Case IH 685 - (3-114) - TWIN FUEL FILTER - BOSCH, FOR TRACTORS WITH ENGINE S/N:-685 : 679147 885 : -063520 (03) - FUEL SYSTEM
4
1
6
3
4
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3218705R92

FILTER

FILTER ASSEMBLY

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

2шт.

1

3218898R1

HEAD

1шт.

2

757760R1

RING

2шт.

3

3218794R91

FILTER

ELEMENT

2шт.

4

3144780R1

SCREW

4шт.

5

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

sealing

2шт.

6

933696R1

SEALING RING,M6 x 10 x 1

2шт.
