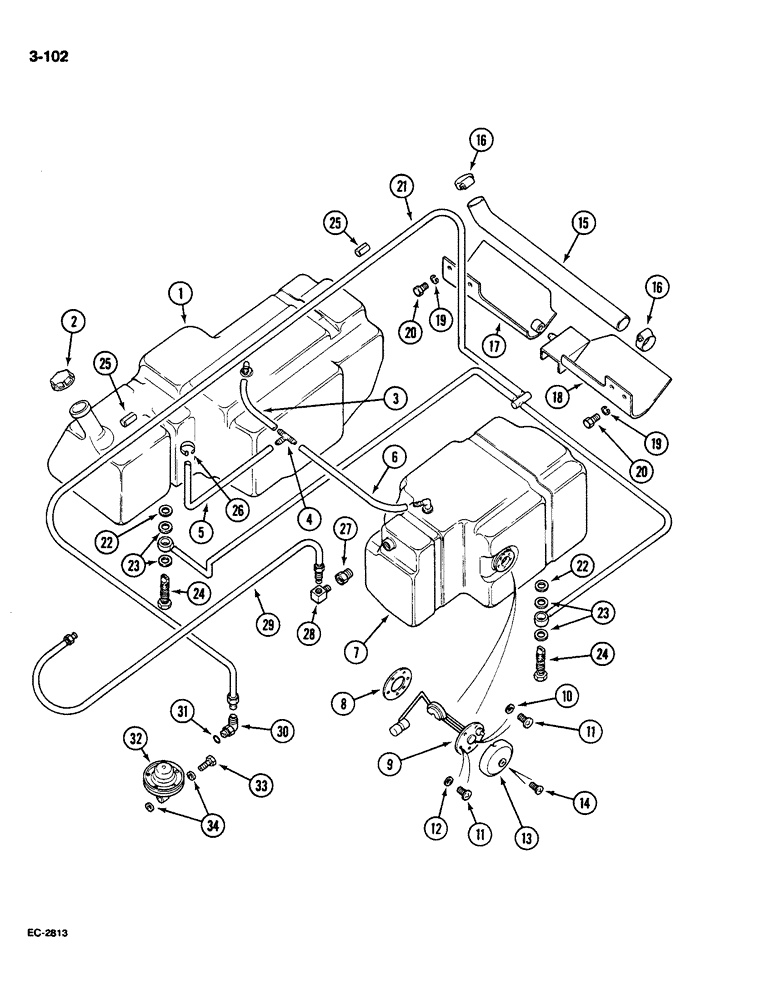

Запчасти Case IH 685 (3-102) - FUEL TANK AND PIPING (03) - FUEL SYSTEM

1

1500252C92

TANK

fuel, right, complete, Includes: Ref. 2

1шт.

There is no fuel filter neck extension for this tank. It can be bent by heating with a heat gun then bending. This is when a 2255 Front End Loader is installed.

1шт.

2

1500254C1

CAP

fuel filler

1шт.

The gasket for this cap is P/N 140756A1.

1шт.

Oversized cap, P/N 255345A1

1шт.

3

1500291C1

HOSE

breather, right tank

1шт.

4

1500292C1

UNION

TEE hose, barbed

1шт.

5

1500288C1

HOSE

breather

1шт.

6

1500290C1

HOSE

breather, left tank

1шт.

7

1500251C1

FUEL TANK

TANK fuel, left

1шт.

8

528359R1

GASKET

sending unit

1шт.

9

1500494C91

FUEL GAUGE

TRANSMITTER sender, fuel level

1шт.

10

796002R1

COPPER WASHER

WASHER copper, sending unit ground

1шт.

11

160052

SCREW,Cross Pan Hd, #10 - 32 x 5/8"

pan, cross recess, No. 10 x 5/8 inch

5шт.

12

533199R1

SEALING WASHER

sending unit cover

4шт.

13

528360R2

COVER

sending unit

1шт.

14

159908

GASKET

pan, cross recess, No. 10 x 3/8 inch

1шт.

15

1500325C1

FUEL HOSE,30.00 mm ID x 410.00 mm, SAE 30R1

Fuel Tank Balance 30.00 mm ID x 410.00 mm, SAE 30R1

1шт.

16

704288R91

CLAMP

hose

2шт.

17

82721C1

GUARD

SHIELD fuel balance pipe, right

1шт.

18

82723C1

GUARD

SHIELD fuel balance pipe, left

1шт.

19

934309R1

LOCK WASHER,M8

WASHER lock, M8

4шт.

20

931829R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

21

99795C1

PIPE

fuel feed to fuel filter

1шт.

22

933610R1

SEALING RING,M14 x 18 x 1.8

2шт.

23

1282576C1

RING

sealing, 14 x 22 mm

4шт.

24

1500329C1

BOLT,74mm

banjo

2шт.

25

673171C1

RUBBER BUSHING

SLEEVE rubber

2шт.

26

289862C1

CABLE TIE,3/16" x 7"

STRAP cable, 1.75 max bundle

1шт.

27

1500333C1

ADAPTER,3/8"-18 NPT Fem x M14 x 1.5 Male

fuel return pipe

1шт.

28

528929R1

CHECK VALVE

VALVE check

1шт.

29

99871C1

PIPE

fuel return

1шт.

30

9410975

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, O-Ring

90 degree, adjustable straight, 5/16 inch tube

1шт.

32

1202938C92

FEED PUMP

PUMP hand primer

1шт.

33

1203398C1

BANJO BOLT

BOLT, BANJO

1шт.

34

1203399C1

SEALING WASHER

sealing

2шт.

31

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube, class 6

1шт.
