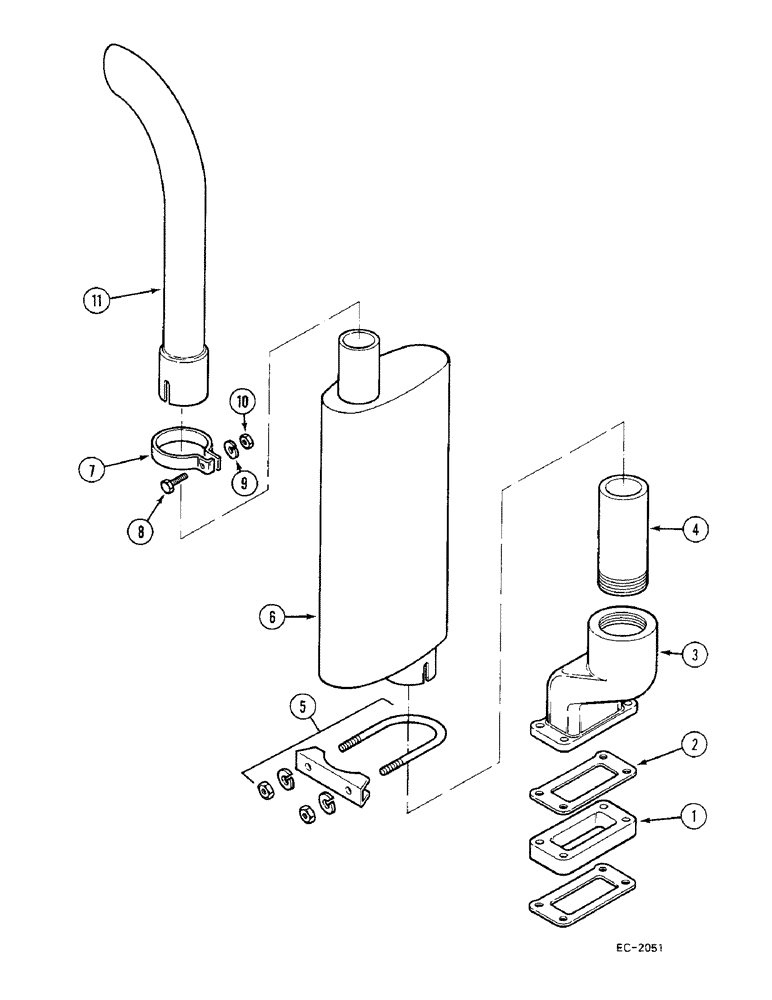

Запчасти Case IH 685 (2-108) - VERTICAL EXHAUST (02) - ENGINE

1

Not used

1шт.

2

3136248R1

MANIFOLD GASKET,0.5mm Thk

1шт.

3

3136668R1

ELBOW

1шт.

NLS

NO LONGER SERVICED

4шт.

103321

LOCK WASHER,3/8"

4шт.

4

80547C1

TUBE

PACKAGE service for exhaust pipes, 96-196 mm

1шт.

5

1502294C1

CLAMP

1шт.

6

83027C1

MUFFLER

Burgess

1шт.

6

83028C1

MUFFLER

Chillcott, optional

1шт.

6

84738C1

MUFFLER

1шт.

6

82713C1

MUFFLER

for version with low profile roof

1шт.

7

1282808C1

CLAMP

1шт.

8

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

9

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

10

120377

NUT,3/8" - 16, Gr 5

1шт.

11

84754C1

PIPE

short

1шт.

11

84755C1

PIPE

long

1шт.

3136066R12

MANIFOLD ASSY

not illustrated

1шт.

3055663R1

STUD

not illustrated

4шт.

20285H

WASHER

not illustrated

8шт.

103026

NUT,3/8"-24, G5

Not Illustrated

8шт.

3132434R1

MANIFOLD GASKET,0.5mm Thk

not illustrated

4шт.
