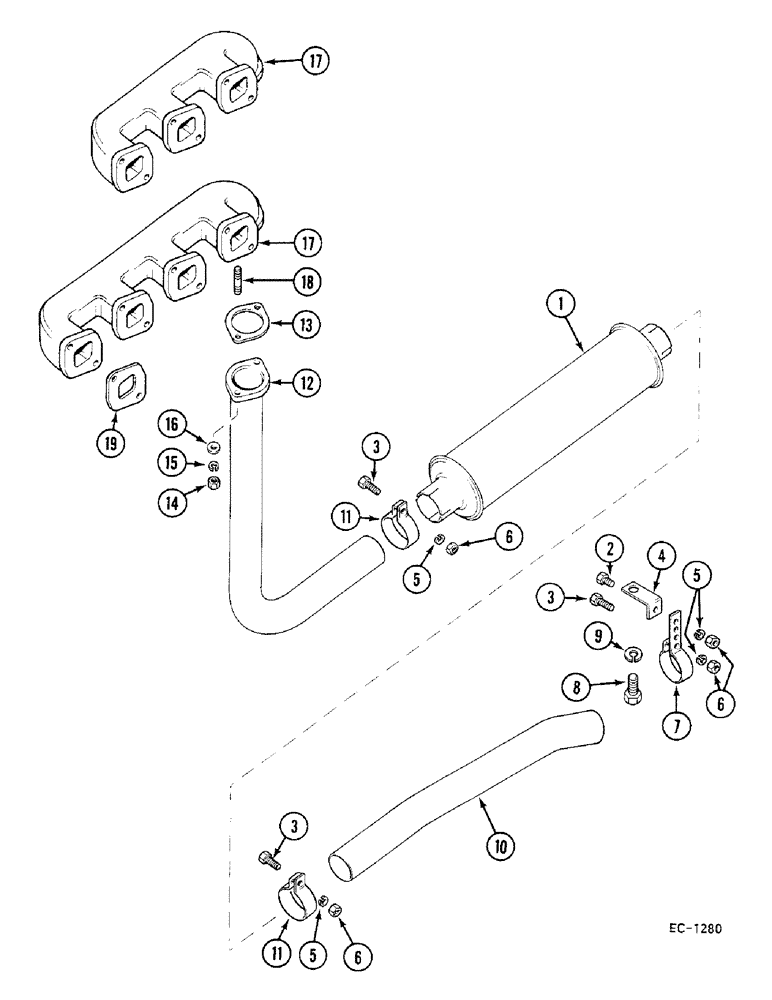

Запчасти Case IH 685 (2-106) - UNDERSLUNG EXHAUST, 685 : 18001-, 885 : 18001- (02) - ENGINE

1

401489R2

MUFFLER

1шт.

2

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

7/8 inch

1шт.

3

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

BOLT, 1-1/8 inch

1шт.

4

90156C1

GUARD

BRACKET

1шт.

5

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

6

120377

NUT,3/8" - 16, Gr 5

2шт.

7

90157C1

SUPPORT

1шт.

8

271714

BOLT,Hex, 5/8" - 11 x 7/8", Gr 5

1шт.

9

492-11062

BEARING WASHER,5/8"

1шт.

10

96155C1

EXHAUST SYSTEM PIPE

PIPE

1шт.

11

67672C1

CLAMP

2шт.

12

82864C1

TUBE,546.5 mm Length

PIPE

1шт.

13

401486R1

MANIFOLD GASKET

1шт.

14

103026

NUT,3/8"-24, G5

10шт.

15

103321

LOCK WASHER,3/8"

2шт.

16

20285H

WASHER

8шт.

17

3005276R12

MANIFOLD

ASSEMBLY

1шт.

18

3055663R1

STUD

2шт.

19

3132434R1

MANIFOLD GASKET,0.5mm Thk

4шт.
