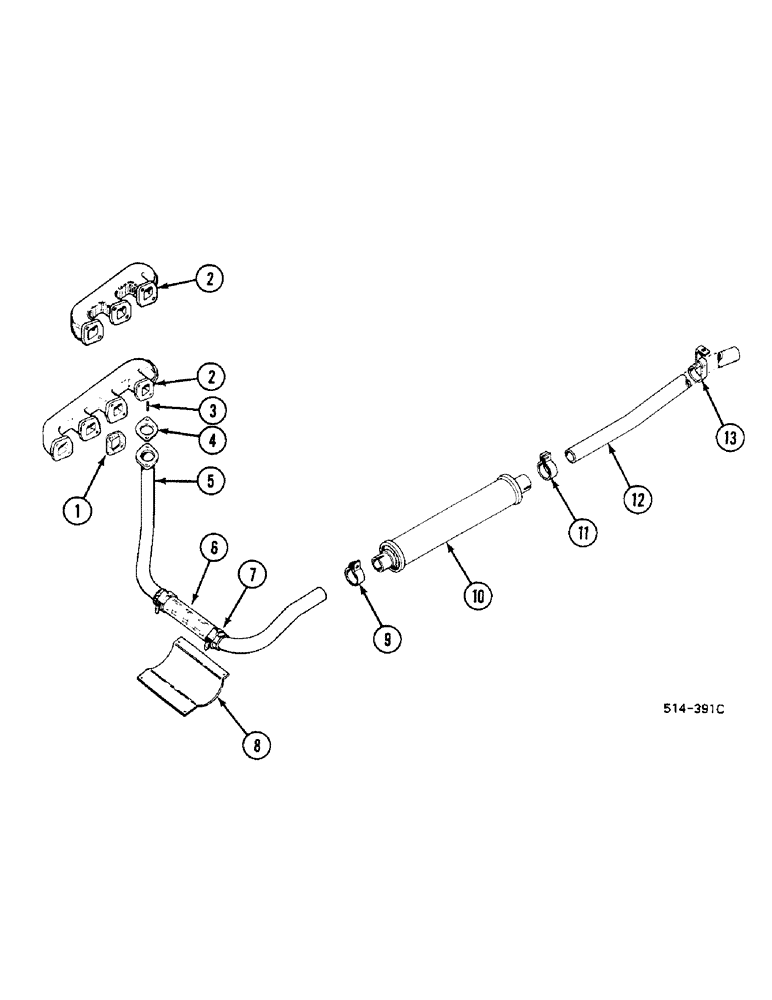

Запчасти Case IH 685 (2-104) - UNDERSLUNG EXHAUST, 685 : -13595, 885 : -3401 (02) - ENGINE

1

3132434R1

MANIFOLD GASKET,0.5mm Thk

4шт.

2

3055276R12

MANIFOLD ASSY

1шт.

3

3055663R1

STUD

2шт.

103026

NUT,3/8"-24, G5

10шт.

103321

LOCK WASHER,3/8"

2шт.

20285H

WASHER

8шт.

4

401486R1

MANIFOLD GASKET

1шт.

5

401485R12

PIPE ASSY.

1шт.

6

114614C1

SHIELD

1шт.

7

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

2шт.

8

401488R1

GUARD

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

103321

LOCK WASHER,3/8"

4шт.

9

67672C1

CLAMP

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

BOLT, 1-1/8 inch

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

10

401489R2

MUFFLER

1шт.

11

67672C1

CLAMP

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

BOLT, 1-1/8 inch

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

12

401490R2

PIPE

1шт.

13

3125262R1

SUPPORT

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

BOLT, 1-1/8 inch

1шт.

271714

BOLT,Hex, 5/8" - 11 x 7/8", Gr 5

1шт.

492-11062

BEARING WASHER,5/8"

1шт.
