(2-098) - AIR CLEANER - COOPERS, WITH SAFETY ELEMENT

Запчасти Case IH 685 (2-098) - AIR CLEANER - COOPERS, WITH SAFETY ELEMENT (02) - ENGINE

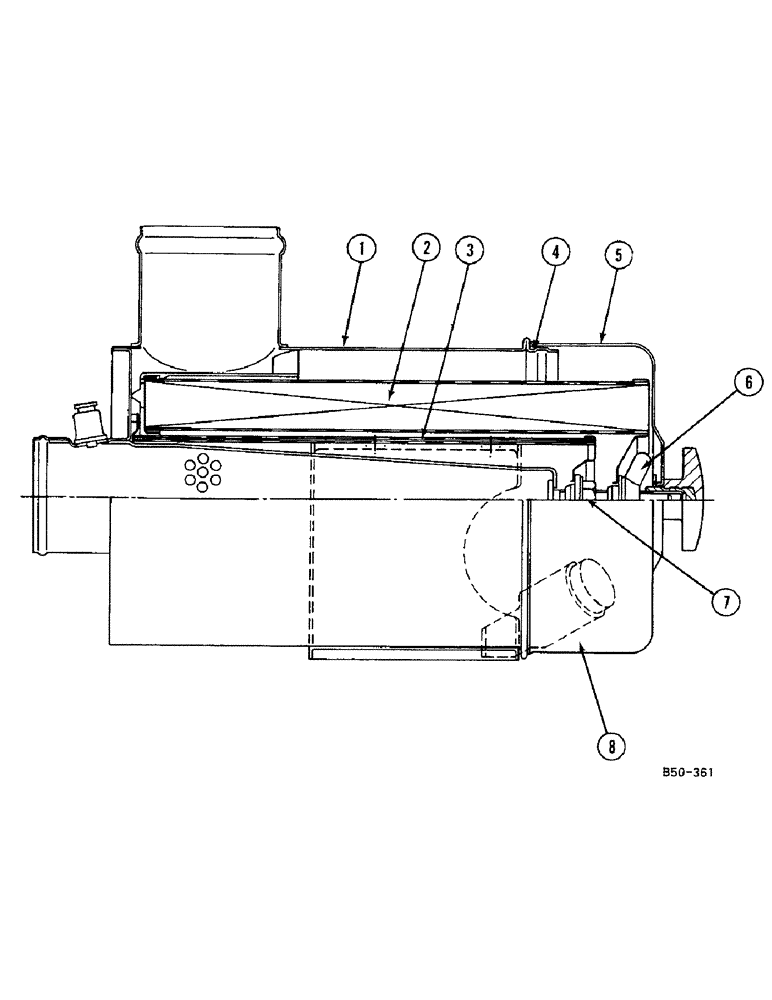

Схема запчастей Case IH 685 - (2-098) - AIR CLEANER - COOPERS, WITH SAFETY ELEMENT (02) - ENGINE
4
7
3
1
2
5
8
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3125248R94

AIR CLEANER

Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY, order: P/N 3125248R94

1шт.

2

3125199R2

AIR FILTER

ELEMENT filter, main

1шт.

3

3115569R2

AIR FILTER

ELEMENT filter, safety

1шт.

4

1900091C1

GASKET

O-RING

1шт.

5

3125200R2

COVER ASSY

1шт.

6

3124435R1

NUT

with gasket

1шт.

7

3124434R1

NUT

with gasket

1шт.

8

3124432R1

DUST VALVE

1шт.
