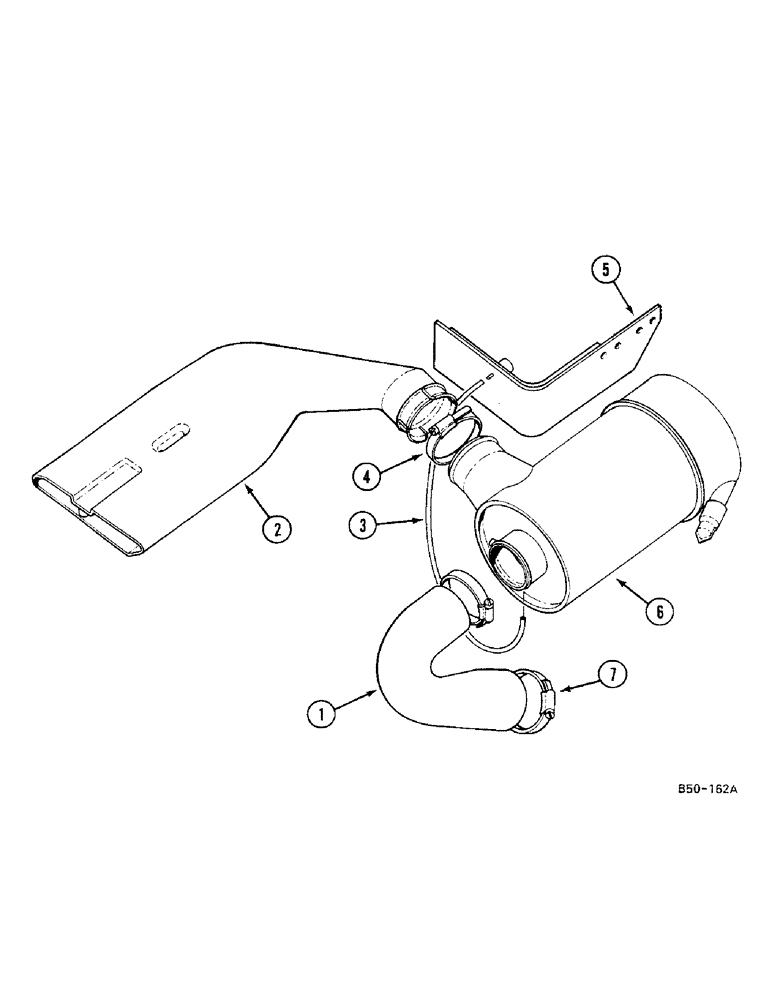

Запчасти Case IH 685 (2-092) - AIR CLEANER AND CONNECTIONS (02) - ENGINE

1

402622R1

INTAKE AIR HOSE,69.80 mm ID x 194.30 mm

1шт.

1

3125121R3

INTAKE AIR HOSE,70.00 mm ID, 88.90 mm ID x 255.00 mm

1шт.

For Ambient Temp, Above 100 Fahrenheit, See Radiator - High Ambient Temp

1шт.

2

529864R1

DUCT

1шт.

2

99657C1

DUCT

1шт.

For Ambient Temp, Above 100 Fahrenheit, See Radiator - High Ambient Temp

1шт.

3

3123825R2

TUBE

1шт.

4

279029R91

HOSE CLAMP,#48, 2.56/3.50 Type F Worm

1шт.

4

985851R91

HOSE CLAMP,#64, 3.56/4.50 Type F Worm

1шт.

For Ambient Temp, Above 100 Fahrenheit, See Radiator - High Ambient Temp

1шт.

5

1502064C1

SUPPORT

BRACKET

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

3116918R1

CABLE CLIP

1шт.

6

NSS

NOT SOLD SEPARAT

AIR CLEANER, see air cleaner

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

7

539994R1

CLAMP

2шт.

7

894005H1

CLAMP

1шт.

For Ambient Temp, Above 100 Fahrenheit, See Radiator - High Ambient Temp

1шт.
