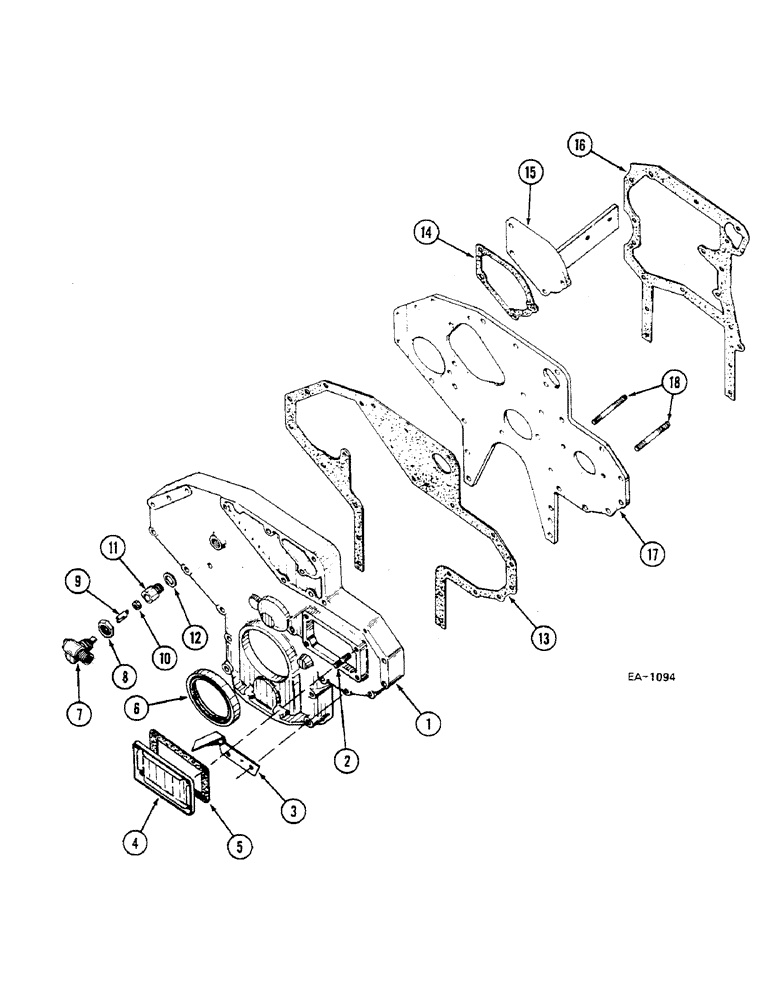

Запчасти Case IH 685 (2-088) - CYLINDER BLOCK FRONT COVER (02) - ENGINE

1

3136057R14

COVER ASSY

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

6шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

6шт.

3050129R1

LOCK WASHER

WASHER lock, 5/16 inch

4шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16")

6шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

103320

LOCK WASHER,5/16"

2шт.

2

3055242R1

STUD

5/16 x 30 mm

4шт.

3

3136040R21

ADJUSTER

INDICATOR

1шт.

3

3136325R2

INDICATOR

1шт.

4

3055140R1

COVER

1шт.

80681

LOCK WASHER,5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

131402H

WASHER

4шт.

5

3138640R1

GASKET

1шт.

6

3228133R93

SEAL KIT

PACKAGE, consists of: 1 Retainer and 1 Seal

1шт.

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

932681R1

DOWEL,4mm OD x 24mm L

Pin

1шт.

932224R1

DOWEL,M4 x 32, Oval

1шт.

932652R1

DOWEL,4mm OD x 28mm L

MANUAL

1шт.

7

3055982R93

DRIVE, ANGLE

1шт.

8

3132116R1

NUT

1шт.

9

3056986R1

SUPPORT

COUPLING VDO

1шт.

10

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

1шт.

11

3055983R1

REDUCER FITTING

SPACER

1шт.

12

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

13

3055994R1

GASKET

1шт.

14

3132541R1

GASKET

1шт.

15

3136049R1

COVER ASSY

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

4шт.

103320

LOCK WASHER,5/16"

3шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

(5/16")

1шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

16

3055239R1

GASKET

1шт.

17

3055996R11

PLATE ASSY.

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

7шт.

3050129R1

LOCK WASHER

WASHER lock, 5/16 inch

7шт.

18

3055065R1

STUD

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.
