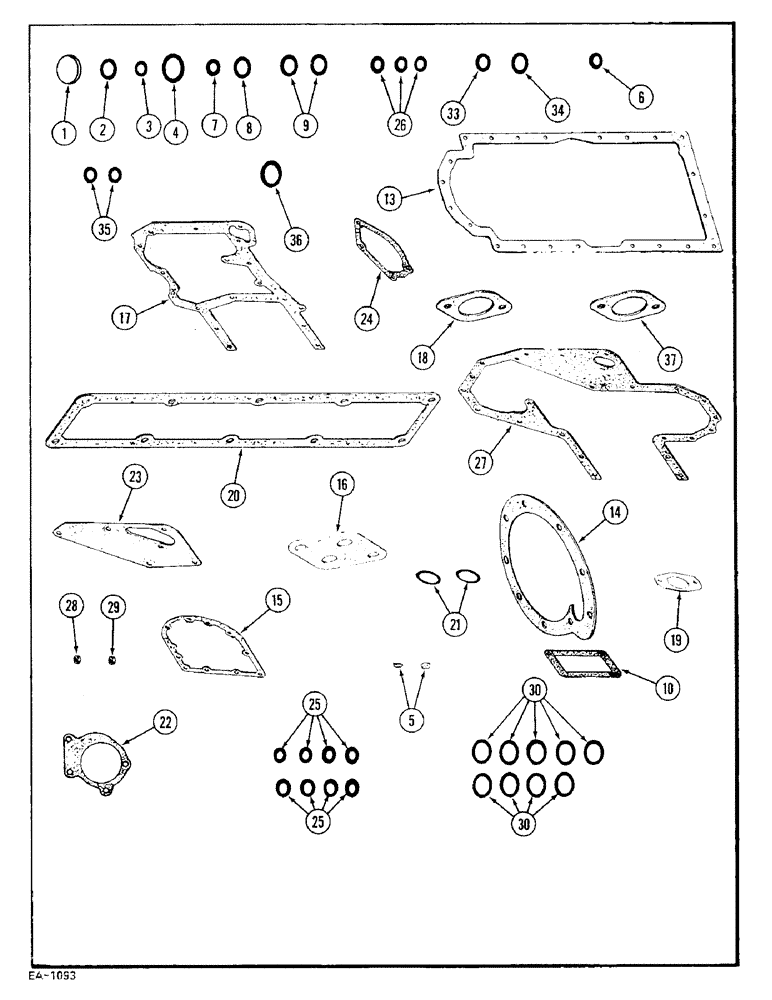

Запчасти Case IH 685 (2-084) - SERVICE KITS (02) - ENGINE

3136813R99

GASKET KIT

PACKAGE

1шт.

1

41-3044

PLUG,Exp, 2 3/4"

1шт.

2

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

3

710097R2

SEALING RING,14mm ID x 18mm OD x 1.5mm Thk

Package

1шт.

4

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

5

714868R1

SEALING STRIP

2шт.

6

717222R1

O-RING

1шт.

7

933087R2

SEALING RING,10mm ID x 13.5mm OD x 1mm Thk

1шт.

8

933608R1

SEALING RING,M26 x 31 x 2

1шт.

9

3138687R1

RING

2шт.

10

3138640R1

GASKET

1шт.

13

3055161R1

GASKET

1шт.

14

3055177R1

GASKET

1шт.

15

3055215R1

GASKET

1шт.

16

3055237R1

GASKET

1шт.

17

3055239R1

GASKET

1шт.

18

3138639R1

GASKET

1шт.

19

3055384R1

GASKET

1шт.

20

3055393R3

GASKET

1шт.

21

3055952R2

O-RING

2шт.

22

3055961R1

GASKET

1шт.

23

3055999R1

GASKET

1шт.

24

3132541R1

GASKET

1шт.

25

933610R1

SEALING RING,M14 x 18 x 1.8

8шт.

26

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

3шт.

27

3055994R1

GASKET

1шт.

28

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

optional, with P/N 784162R91

1шт.

29

784162R91

SEALING RING

optional, with P/N 3052295R91

1шт.

30

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

9шт.

33

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

34

3055389R2

O-RING,2.5mm Thk x 32mm ID, 70 Duro

1шт.

35

3132869R1

O-RING

2шт.

36

933155R1

SEALING RING,M16 x 20 x 1.5

1шт.

37

3136406R1

GASKET

1шт.

3144657R91

PACKAGE

fuel feedline, Consists of: 1, Tube, 1 Hose, 1 Clamp, 1 Clip, 1 plate, 1 Bolt and 4 rings, not illustrated

1шт.
