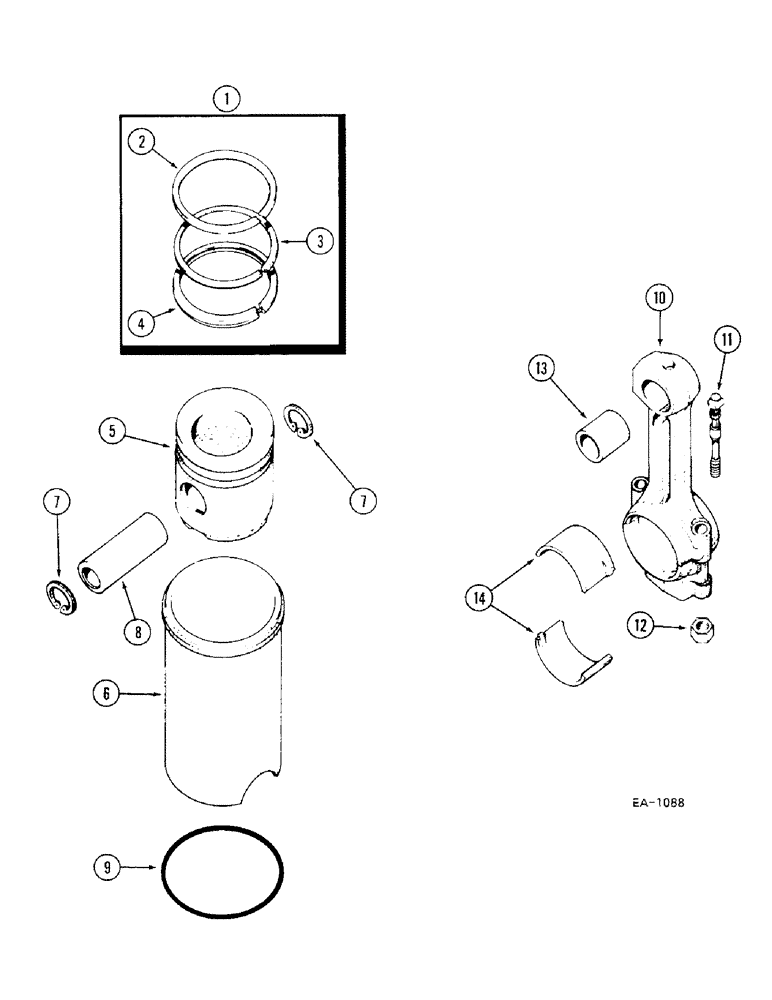

Запчасти Case IH 685 (2-070) - CONNECTING ROD, PISTONS AND SLEEVE (02) - ENGINE

1

3139594R91

PISTON RING

4шт.

1

3218669R91

PISTON RING SET

1шт.

1

3144977R91

PISTON RING SET

1шт.

2

NSS

NOT SOLD SEPARAT

RING

1шт.

3

NSS

NOT SOLD SEPARAT

RING

1шт.

4

NSS

NOT SOLD SEPARAT

RING

1шт.

5

3139591R96

PISTON & RINGS KIT

4шт.

5

3144683R96

SLEEVE

PISTON

1шт.

5

3218461R95

SLEEVE ASSY

PISTON, with: Ref. 6

1шт.

6

3139592R4

SLEEVE CYLINDER

1шт.

6

3144682R3

SLEEVE CYLINDER

1шт.

7

933327R1

SNAP RING,M36, Int

retaining

8шт.

7

3228245R1

RING, SNAP

RING SNAP optional

8шт.

8

3055217R2

PISTON PIN

4шт.

9

3228348R1

RING,4.75mm Thk x 109.16mm ID

4шт.

10

3055030R24

ROD, CONNECTING

ASSEMBLY

4шт.

10

3055029R24

CONNECTING ROD

ASSEMBLY, with: Ref. 11-13

1шт.

11

3055033R11

BOLT

2шт.

12

NSS

NOT SOLD SEPARAT

NUT

1шт.

13

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

1шт.

14

3055351R91

BEARING ASSY

ASSEMBLY, standard

4шт.

14

3056834R11

BEARING ASSY

undersize, 0.25 mm

4шт.

14

3056879R11

BEARING ASSY

undersize, 0.50 mm

4шт.
