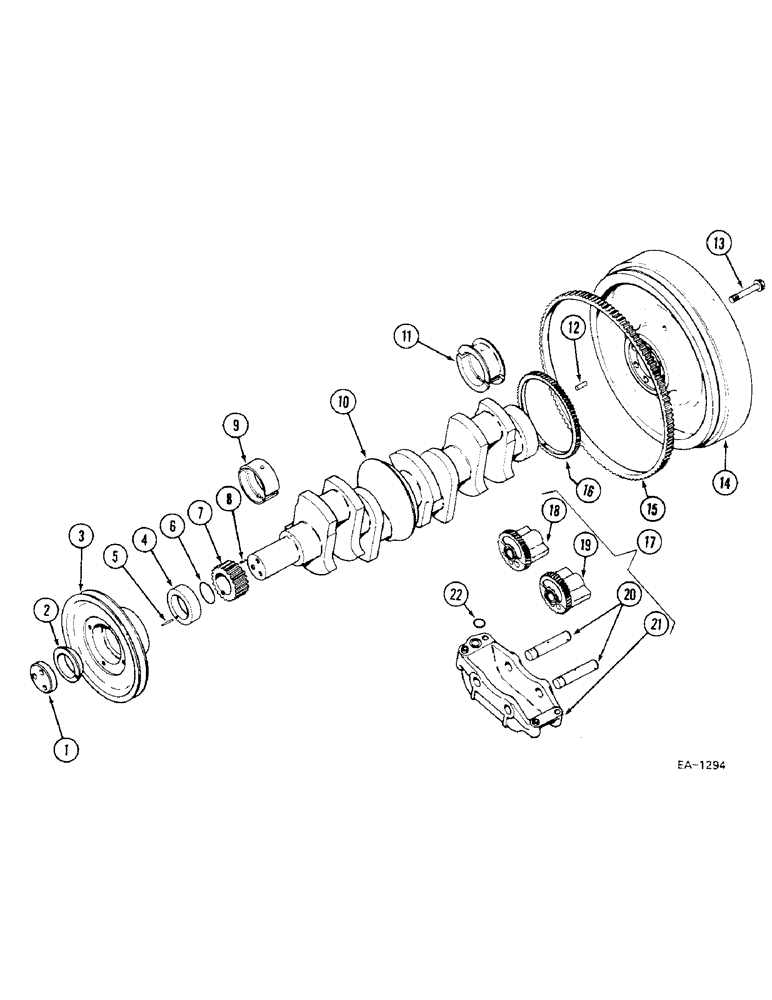

Запчасти Case IH 685 (2-064) - CRANKSHAFT, FLYWHEEL AND BEARINGS (02) - ENGINE

1

3055154R1

WASHER

1шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

3шт.

2

3138874R1

BEARING WASHER

1шт.

3

3138838R3

PULLEY

1шт.

4

NSS

NOT SOLD SEPARAT

RING ASSEMBLY, order P/N 3228133R93

1шт.

5

932681R1

DOWEL,4mm OD x 24mm L

Pin

1шт.

6

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

7

3055028R1

PINION

GEAR

1шт.

8

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

9

3055130R21

CRANKSHAFT BEARING

standard

4шт.

9

3056832R21

BEARING ASSY

undersize (0.25 mm)

4шт.

10

3144626R92

CRANKSHAFT BEARING

with P/N's 3055028R1, 3136237R1, 141242, 932169R1, 3055129R21, 3055130R21, and 305351R91

1шт.

3055028R1

PINION

GEAR

1шт.

3136237R1

PINION

GEAR

1шт.

37-2614

DOWEL,3/8" x 7/8"

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

3055129R21

CRANKSHAFT BEARING

4шт.

3055130R21

CRANKSHAFT BEARING

4шт.

3055351R91

BEARING ASSY

ASSEMBLY

1шт.

10

3218861R91

CRANKSHAFT

undersize (0.25 mm), with P/N's 3055028R1, 3136237R1, 141242, 932169R1, 3056820R11, 3056832R21, and 3056834R11

1шт.

3055028R1

PINION

GEAR

1шт.

3136237R1

PINION

GEAR

1шт.

37-2614

DOWEL,3/8" x 7/8"

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

3056820R11

BEARING ASSY

undersize (0.25 mm)

1шт.

3056832R21

BEARING ASSY

undersize (0.25 mm)

4шт.

3056834R11

BEARING ASSY

undersize (0.25 mm)

4шт.

11

3055129R21

CRANKSHAFT BEARING

standard

1шт.

11

3056820R11

BEARING ASSY

undersize (0.25 mm)

1шт.

12

37-2614

DOWEL,3/8" x 7/8"

1шт.

13

3218037R1

BOLT,Hex, 1/2" - 20 x 58.5mm

Used with P/N 3136044R41

7шт.

13

3144213R1

BOLT,Hex, 1/2" - 20 x 53mm

Used with P/N 1808412C91

7шт.

14

1808412C91

FLYWHEEL

for tractors with 12 inch clutch

1шт.

For D-239 Engine

1шт.

15

60883H

RING GEAR

Use with Ref 14

1шт.

See Fig. 2-062, Ref 2, 3218637R1 Ring Gear 128T Before Ordering

1шт.

16

3136237R1

PINION

1шт.

17

3132874R94

HOUSING

BALANCER

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

BOLT

1шт.

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

2шт.

179869

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

1шт.

3218543R1

LOCK WASHER

3шт.

3228374R91

BALANCER

WEIGHT, consists of : Ref. 18,19

1шт.

18

NSS

NOT SOLD SEPARAT

WEIGHT, order P/N 3228374R91

1шт.

19

NSS

NOT SOLD SEPARAT

WEIGHT, order P/N 3228374R91

1шт.

20

3132878R11

PIN,23mm OD x 93mm L

SHAFT ASSEMBLY

2шт.

21

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY

1шт.

932229R1

SPLIT PIN/SAFETY PIN

roll

2шт.

932299R1

LOCK PIN,M2.5 x 20, Slotted

2шт.

3055174R1

BUSHING

2шт.

22

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

3228133R93

SEAL KIT

PACKAGE crankshaft oil seal, consists of : (1) retainer, (1) seal , not illustrated

1шт.

713778R1

O-RING,3mm Thk x 55mm ID

not illustrated

1шт.

932681R1

DOWEL,4mm OD x 24mm L

Pin, Manual , Not Illustrated

1шт.

932224R1

DOWEL,M4 x 32, Oval

Not Illustrated

1шт.
