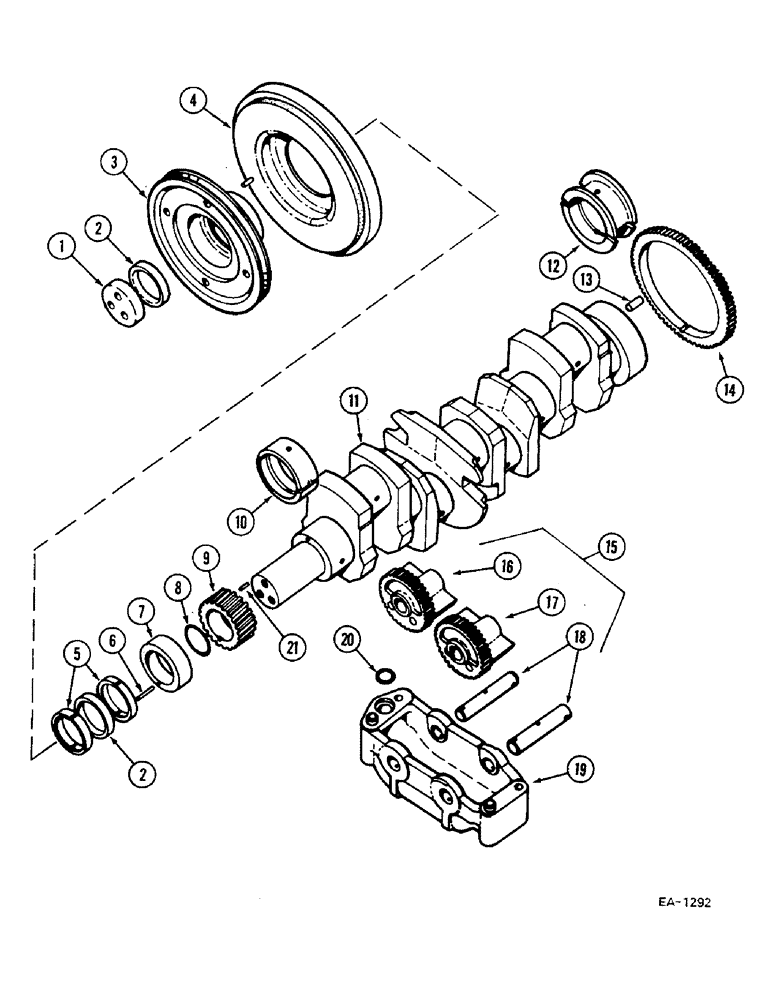

Запчасти Case IH 685 (2-056) - CRANKSHAFT AND BALANCER (02) - ENGINE

1

3055154R1

WASHER

1шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

1шт.

2

3055153R1

SPACER,56.64mm ID x 61.72mm OD x 10.16mm L

thrust

1шт.

3

3136324R11

PULLEY

1шт.

932338R1

DOWEL,M4 x 14

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

933806R1

WASHER

1шт.

4

3136283R1

DAMPER

1шт.

5

3055152R91

RING

SPRING

1шт.

6

932681R1

DOWEL,4mm OD x 24mm L

Pin, Ring assembly, Order P/N 3228133R93

1шт.

8

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

9

3055028R1

PINION

GEAR, 33T

1шт.

10

3055130R21

CRANKSHAFT BEARING

standard

1шт.

10

3056832R21

BEARING ASSY

undersize, 0.250 mm

1шт.

10

3056877R21

BEARING ASSY

undersize, 0.500 mm

1шт.

10

3055779R21

BEARING ASSY

undersize, 0.750 mm

1шт.

11

3228377R91

BEARING ASSY

undersize, 0.250 mm

1шт.

3056820R11

BEARING ASSY

1шт.

3056832R21

BEARING ASSY

1шт.

3056834R11

BEARING ASSY

1шт.

3144700R1

GEAR

1шт.

3055028R1

PINION

GEAR, 33T

1шт.

37-2614

DOWEL,3/8" x 7/8"

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

11

3228376R91

BEARING ASSY

standard with : P/N's 3056820R11, 3056832R21, 3056834R11, 3144700R1, 3055028R1, 141242, and 932169R1

1шт.

3055129R21

CRANKSHAFT BEARING

1шт.

3055130R21

CRANKSHAFT BEARING

1шт.

3055351R91

BEARING ASSY

ASSEMBLY

1шт.

3144700R1

GEAR

1шт.

3055028R1

PINION

GEAR, 33T

1шт.

37-2614

DOWEL,3/8" x 7/8"

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

11

3228378R91

BEARING ASSY

undersize, 0.0500 mm with: P/N's 3056875R11, 3056877R21, 3056879R11, 3144700R1, 3055028R1, 141242, and 932169R1

1шт.

3056875R11

BEARING ASSY

1шт.

3056877R21

BEARING ASSY

1шт.

3056879R11

BEARING ASSY

1шт.

3144700R1

GEAR

1шт.

3055028R1

PINION

GEAR, 33T

1шт.

37-2614

DOWEL,3/8" x 7/8"

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

12

3055129R21

CRANKSHAFT BEARING

standard

1шт.

12

3056820R11

BEARING ASSY

undersize, 0.250 mm

1шт.

12

3056875R11

BEARING ASSY

undersize, 0.500 mm

1шт.

12

3055776R11

BEARING ASSY

undersize, 0.750 mm

1шт.

13

37-2614

DOWEL,3/8" x 7/8"

1шт.

14

3144700R1

GEAR

1шт.

15

3144701R91

BALANCER

1шт.

3228375R91

BALANCER

SET, consists of : 16, 17 weight, order P/N 3228375R91

1шт.

18

3132878R11

PIN,23mm OD x 93mm L

SHAFT ASSEMBLY

1шт.

19

3144702R92

HOUSING

1шт.

3055174R1

BUSHING

1шт.

932229R1

SPLIT PIN/SAFETY PIN

roll, 4 x 20 mm

1шт.

932299R1

LOCK PIN,M2.5 x 20, Slotted

1шт.

179871

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

BOLT

1шт.

179872

BOLT,Hex, 7/16" - 14 x 3 1/2", Gr 5

BOLT

1шт.

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

1шт.

3218543R1

LOCK WASHER

1шт.

20

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

21

932169R2

LARGE PIN

PIN, LARGE

1шт.

3228133R93

SEAL KIT

PACKAGE crankshaft oil seal, consists of: retainer, seal , not illustrated

1шт.

713778R1

O-RING,3mm Thk x 55mm ID

Not illustrated

1шт.

932681R1

DOWEL,4mm OD x 24mm L

Pin, Not Illustrated

1шт.

932224R1

DOWEL,M4 x 32, Oval

Not Illustrated

1шт.

932652R1

DOWEL,4mm OD x 28mm L

MANUAL, Not Illustrated

1шт.
