(2-044) - ENGINE OIL FILTER, VERSION WITH PLATE TYPE OIL COOLER

Запчасти Case IH 685 (2-044) - ENGINE OIL FILTER, VERSION WITH PLATE TYPE OIL COOLER (02) - ENGINE

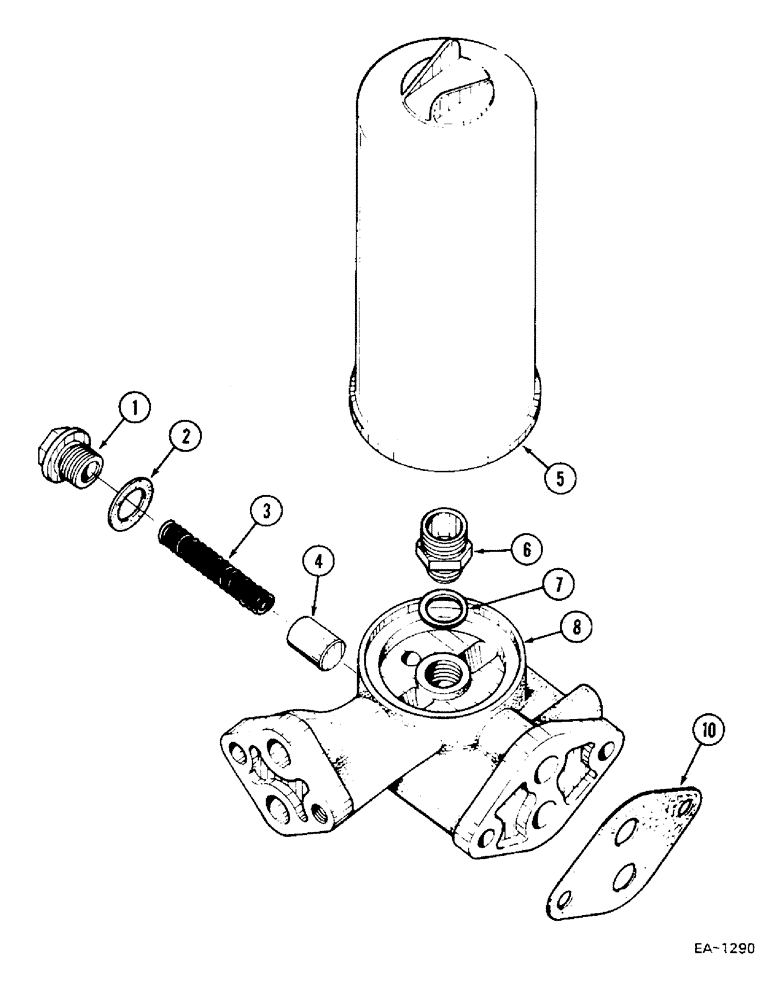

Схема запчастей Case IH 685 - (2-044) - ENGINE OIL FILTER, VERSION WITH PLATE TYPE OIL COOLER (02) - ENGINE
10
8
5
6
7
4
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3138581R1

PLUG

1шт.

2

3058431R1

COPPER WASHER

1шт.

3

279163R1

SPRING

1шт.

4

251400R1

VALVE

1шт.

5

3132737R93

FILTER, ENGINE OIL

FILTER, OIL

1шт.

6

3136308R1

CONNECTOR, ELEC

CONNECTOR ADAPTOR

1шт.

7

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

8

3144599R1

BASE

1шт.

186285

BOLT,Hex, 3/8" - 16 x 4", Gr 5

1шт.

3144513R1

SPRING WASHER

1шт.

10

3055237R1

GASKET

1шт.
