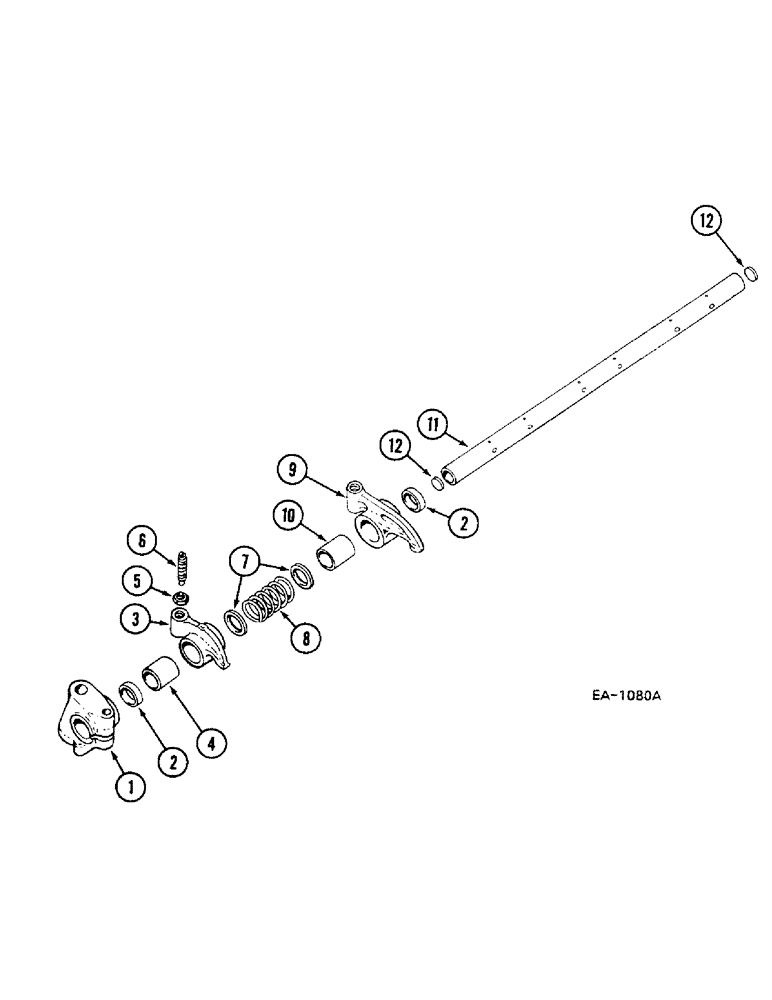

Запчасти Case IH 685 (2-028) - VALVE MECHANISM (02) - ENGINE

1

3055077R6

SUPPORT

BRACKET

5шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5шт.

3050129R1

LOCK WASHER

WASHER lock, 5/16 inch

5шт.

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

5шт.

2

3055068R1

BUSHING,22mm ID x 30mm OD x 6.8mm L

7шт.

3

3132293R92

ROCKER

ARM ASSEMBLY, exhaust

4шт.

4

3132019R1

BUSHING,21.15mm ID x 26.09mm OD x 25.4mm L

4шт.

5

3132138R1

NUT

8шт.

6

3132137R1

ADJUSTMENT SCREW

8шт.

7

3055669R1

THRUST WASHER

8шт.

8

3055075R2

SPRING

4шт.

9

3132292R92

ROCKER

ARM ASSEMBLY, inlet

4шт.

10

3132019R1

BUSHING,21.15mm ID x 26.09mm OD x 25.4mm L

4шт.

11

3055070R31

SHAFT

1шт.

12

933565R1

PLUG,M14, Conical

2шт.
