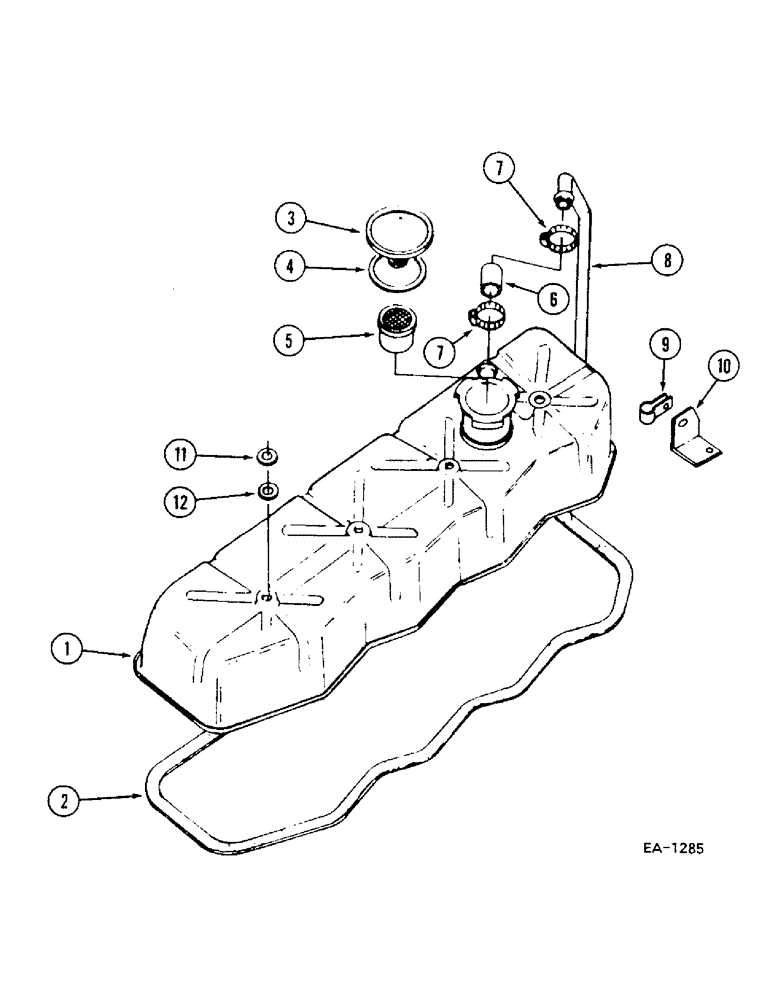

Запчасти Case IH 685 (2-026) - VALVE HOUSING COVER (02) - ENGINE

1

1806831C1

VALVE COVER

1шт.

187953

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

4шт.

2

3138642R1

GASKET

1шт.

3

3136337R91

COVER

CAP

1шт.

4

3136338R1

GASKET,45mm ID x 68mm OD x 2.3mm Thk

1шт.

5

3136336R1

FILTER

ELEMENT

1шт.

6

1806928C1

HOSE

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

7

3143364R1

CLAMP,19mm - 23mm

2шт.

8

1806992C1

TUBE,18 mm OD

1шт.

9

3144023R1

CLAMP

1шт.

181088

BOLT (SPREADER),Hex, 5/16" - 18 x 1", Gr 5

5/16 x 3 inch

1шт.

27326R1

WASHER,.344" x 11/16" x .089", HDN

2шт.

10

1806993C1

SUPPORT

BRACKET

1шт.

11

3138637R1

CUP WASHER

WASHER

4шт.

12

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

4шт.
