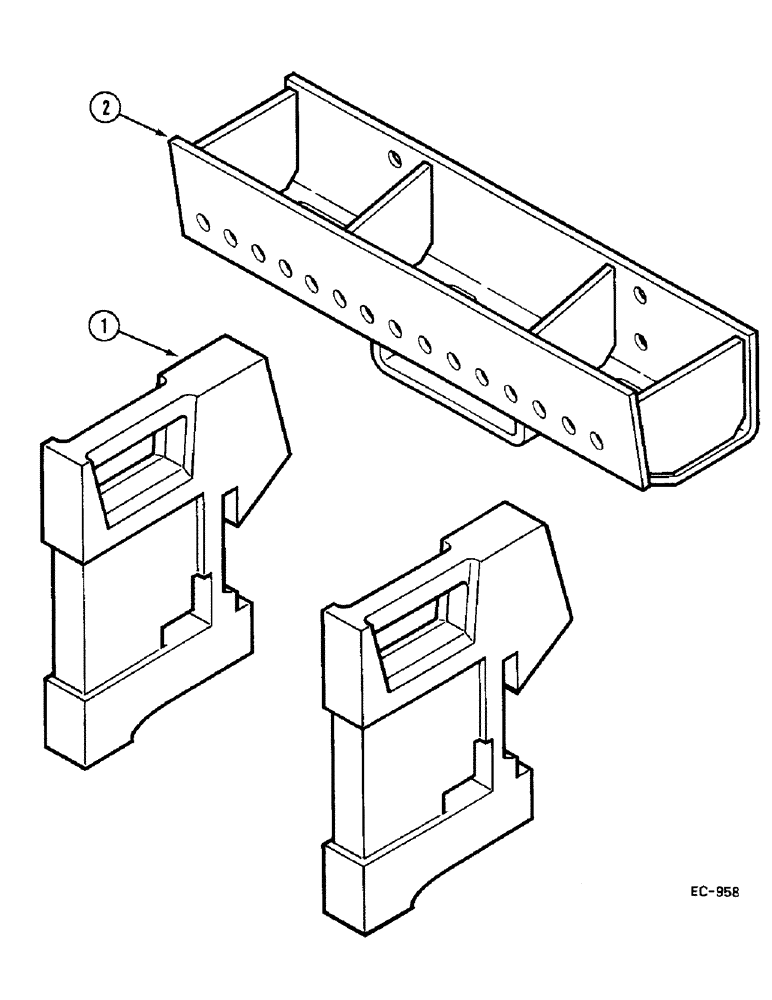

Запчасти Case IH 685 (9-828) - FRONT END WEIGHTS, (A) 685 : 18001-, (A) 885 : 18001-, (B) 685 : -13595 (B) 885 : -3401 (09) - CHASSIS/ATTACHMENTS

1

383392R2

WEIGHT

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

BOLT

1шт.

125536

SQUARE NUT

1шт.

2

99517C1

BRACKET

ASSY., for 2 wheel drive tractors

1шт.

Machine Application Consists Of 14 Weights Max.

1шт.

24887R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8

4шт.

2

99522C1

SUPPORT

BRACKET ASSY., models 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

Machine Application Consists Of 10 Weights Max.

1шт.

24887R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8

4шт.

2

3123572R1

BRACKET

ASSY., for 4 wheel drive tractors, model 685 to Use up to S/N 13595

1шт.

2

3123572R1

BRACKET

ASSY., for 4 wheel drive tractors, model 885 to Use up to S/N 3401

1шт.

Machine Application Consists Of 10 Weights Max.

1шт.

24887R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8

4шт.
