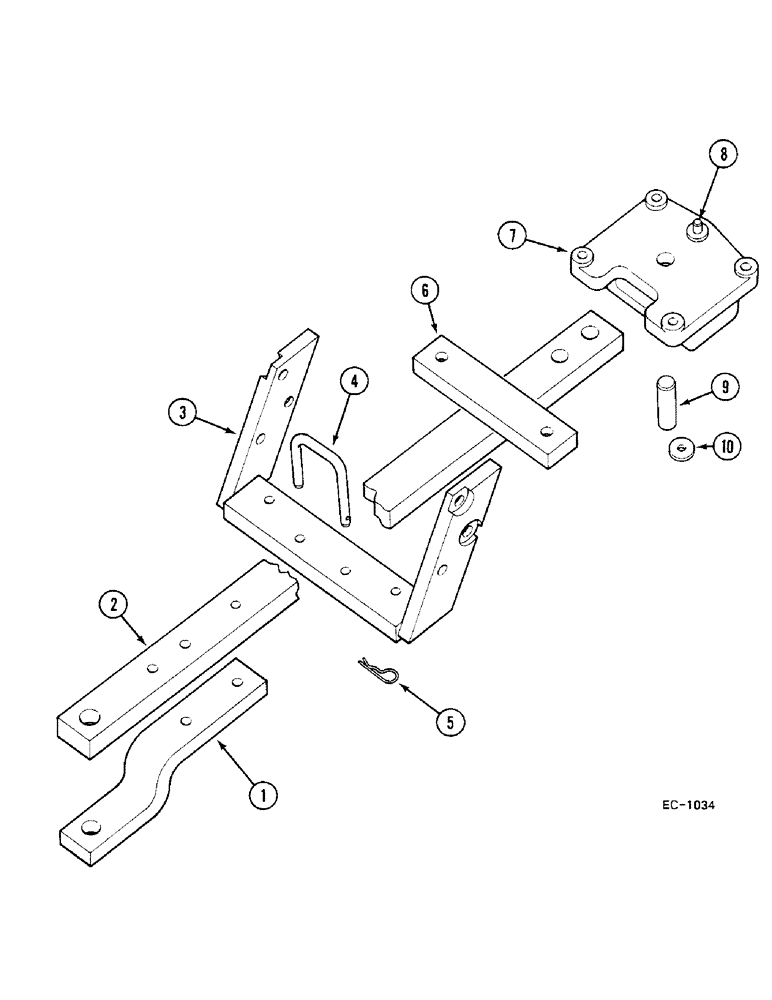

Запчасти Case IH 685 (9-826) - SWINGING DRAWBAR (09) - CHASSIS/ATTACHMENTS

1

3064333R1

DRAWBAR CLAMP

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

BOLT, 76 mm, Course Threads

2шт.

102639

NUT,5/8"-11, G5

2шт.

2

82786C1

DRAWBAR, SWINGING

models 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

2

406467R2

DRAWBAR, SWINGING

model 685 to Use up to S/N 13595

1шт.

2

406467R2

DRAWBAR, SWINGING

model 885 to Use up to S/N 3401

1шт.

3

3129483R1

DRAWBAR SUPPORT

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

4шт.

4

1502071C1

COTTER PIN,14.28mm OD

models 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

4

406470R1

AXLE PIN

BOLT U, model 685 to Use up to S/N 13595

1шт.

4

406470R1

AXLE PIN

BOLT U, model 885 to Use up to S/N 3401

1шт.

19798R1

LOCK NUT,9/16"-12, GB

1шт.

530408R1

NUT

optional

1шт.

5

720631R1

LINCH PIN

CLIP spring, models 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

6

3121227R1

BAR

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

BOLT, 5/8 x 3 inch

2шт.

7

406468R31

SUPPORT

ASSY.

1шт.

264239R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

3061325R1

WASHER

4шт.

8

19846R1

DOWEL,1/2" x 1 1/4"

1шт.

9

1502366C1

PIVOT PIN

1шт.

10

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

PLATE

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

1шт.
