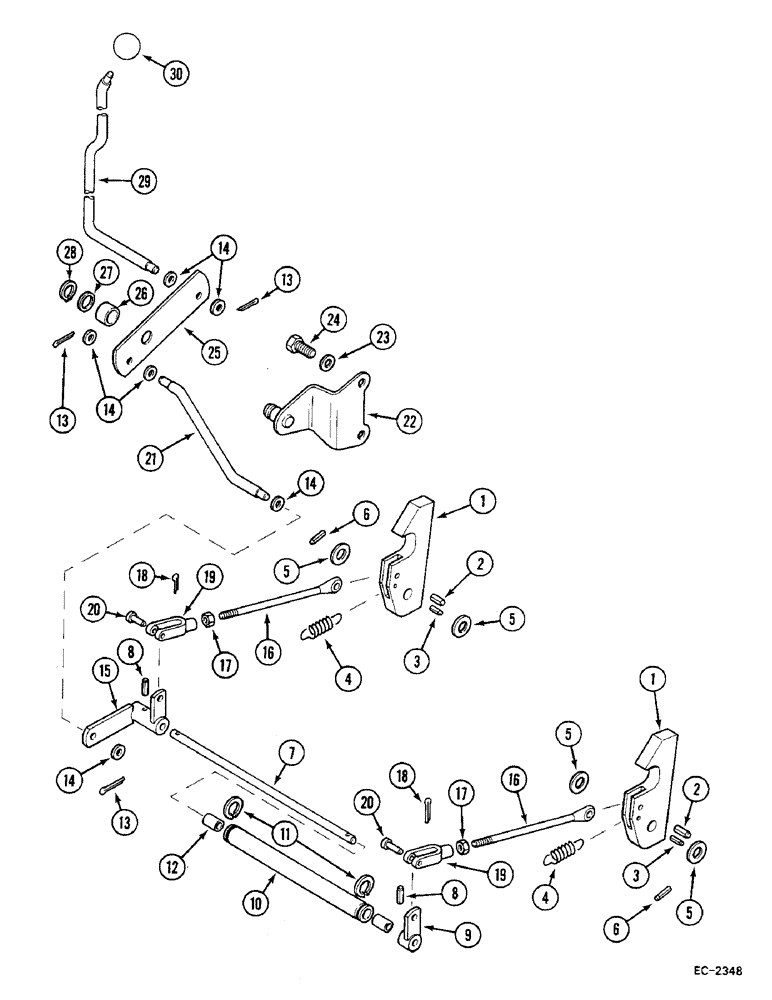

Запчасти Case IH 685 (9-818) - AUTOMATIC HITCH CONTROLS, 685 : 18001- 885 : 18001- (09) - CHASSIS/ATTACHMENTS

1

1500606C1

LATCH

2шт.

2

19328R1

LOCK PIN,3/8" x 3/4", Slotted

2шт.

3

17145R1

LOCK PIN,3/16" x 3/4", Slotted

2шт.

4

1500607C2

SPRING

2шт.

5

557273R1

WASHER

4шт.

6

576482R1

LOCK PIN,5/16" x 2", Slotted

4шт.

19355R1

LOCK PIN,3/16" x 2", Slotted

4шт.

7

90079C1

ROD

1шт.

8

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

2шт.

9

90078C1

ARM

1шт.

10

90080C1

TUBE,15.8 mm ID x 31.8 mm OD x 310 mm L

1шт.

11

3134245R1

SNAP RING,M32, Ext, Hvy

retaining

2шт.

12

3121792R1

BUSHING

2шт.

13

103385

COTTER PIN,1/8" x 1"

3шт.

14

106264

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

3шт.

15

90211C1

LATCH

ARM

1шт.

16

90076C1

ROD

2шт.

17

103026

NUT,3/8"-24, G5

2шт.

18

103373

COTTER PIN,3/32" x 3/4"

2шт.

19

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

2шт.

20

103496

CLEVIS PIN,3/8" x 1.060"

2шт.

21

1330936C1

ROD

1шт.

22

1330937C1

SUPPORT

SPARE PART models 685 and 885 Use S/N 18001 and, Years: -05-JAN-87, Start Serial: up

1шт.

22

1958508C1

SUPPORT

models 685 and 885, 01/05/1987 and after, Start Year: 05-JAN-87

1шт.

23

30186R1

WASHER,M16 x 34.5 x 5, HT

2шт.

24

22800

BOLT

2шт.

25

1330940C1

LEVER

SPARE PART models 685 and 885 Use S/N 18001 and, Years: -05-JAN-87, Start Serial: up

1шт.

25

1331096C1

LEVER

models 685 and 885, 01/05/1987 and after, Start Year: 05-JAN-87

1шт.

26

3057214R1

BUSHING

models 685 and 885, 01/05/1987 and after, Start Year: 05-JAN-87

1шт.

27

934585R1

WASHER,M26 ID x 37 OD x 1 Thk

1шт.

28

933128R1

SNAP RING,M25, Ext

retaining

1шт.

29

1330941C2

ROD

1шт.

30

3123663R1

BUTTON

KNOB

1шт.
