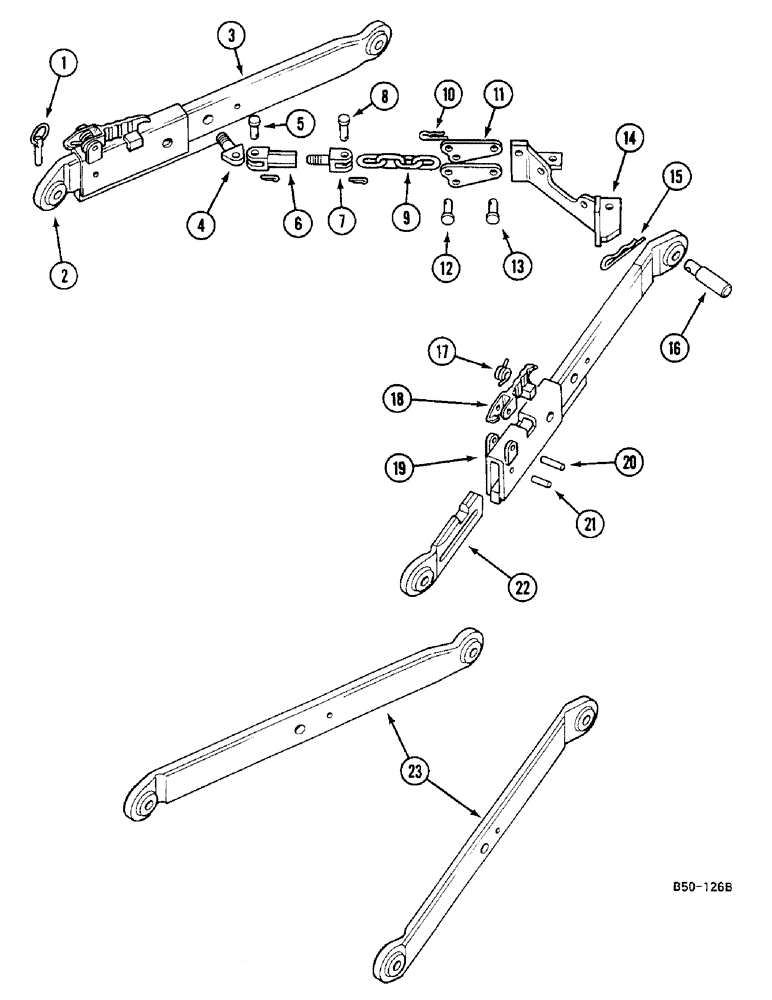

Запчасти Case IH 685 (9-800) - LOWER LINKS - THREE POINT HITCH, ROW CROP, VERSION WITH INSIDE CHECK LINKS (09) - CHASSIS/ATTACHMENTS

1

533189R1

PIN

linch

2шт.

2

403019R2

END FITTING

LINK lower, rear, L.H.

1шт.

3

527970R1

LOWER LINK

front, L.H.

1шт.

4

527985R1

EYEBOLT,Eye, 7/8" - 14 x 1.90"

BOLT, EYE

2шт.

19853R1

LOCK NUT,7/8"-14

2шт.

5

528112R2

PIN,15.77mm OD x 54.61mm L

2шт.

108630

COTTER PIN,1/8" x 7/8"

2шт.

6

527978R1

YOKE,7/8" - 14

UNIVERSAL JOINT YOKE

2шт.

7

70622C1

CLEVIS,7/8" - 14

2шт.

8

528112R2

PIN,15.77mm OD x 54.61mm L

2шт.

108630

COTTER PIN,1/8" x 7/8"

2шт.

9

403038R1

CHAIN (AG)

2шт.

10

460047R1

CLIP, SPRING

2шт.

11

403036R1

LARGE PLATE

PLATE, LARGE STRAP

4шт.

12

528112R2

PIN,15.77mm OD x 54.61mm L

2шт.

13

403043R1

PIN

2шт.

108630

COTTER PIN,1/8" x 7/8"

2шт.

14

3123737R1

BRACKET

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

5/8 x 1-1/2 inch

4шт.

15

538406R1

COTTER PIN

2шт.

16

67829C1

PIN,28.57mm OD x 108.61mm L

2шт.

17

403024R1

SPRING

2шт.

18

403023R1

LATCH

2шт.

19

527971R1

LOWER LINK

front, R.H.

1шт.

20

591261R1

PIN,3/8" x 2 1/8", Coiled

2шт.

21

19903R1

PIN,1/2" x 1 3/4", Coiled

2шт.

22

403020R2

END FITTING

LINK lower, rear, R.H.

1шт.

23

66250C1

LOWER LINK

fixed, 33 inch

2шт.
