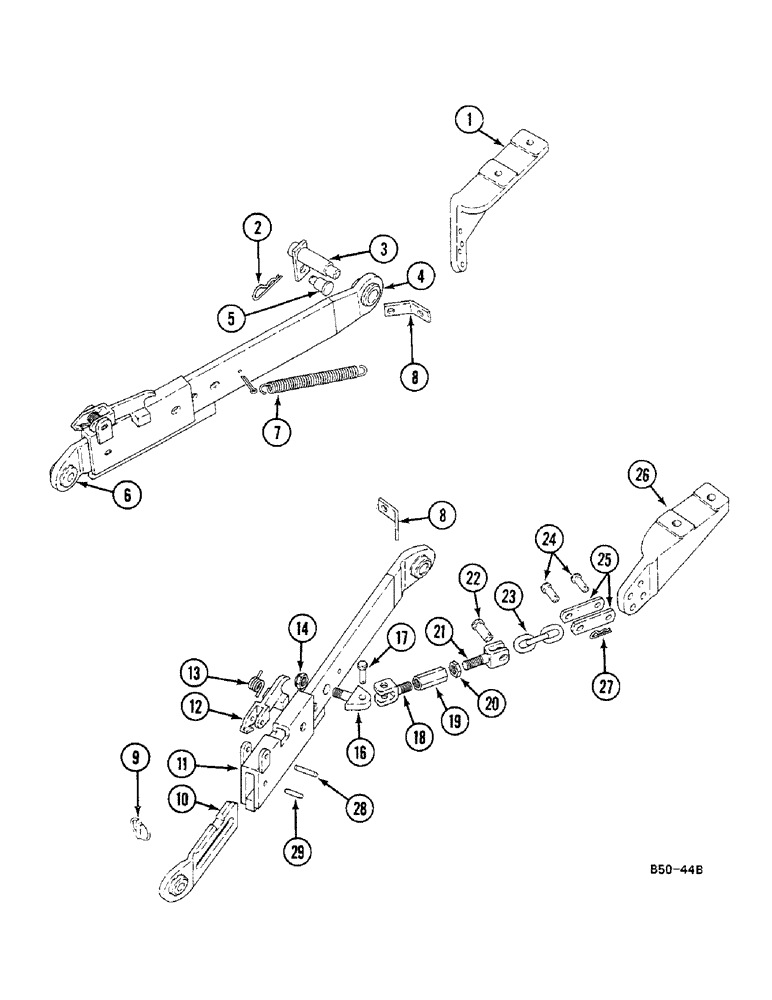

Запчасти Case IH 685 (9-794) - LOWER LINKS-3 POINT HITCH,33" TELESCOPIC, VERSION W/ OUTSIDE CHECK CHAINS,VERSION W/TELESCOPIC LINKS (09) - CHASSIS/ATTACHMENTS

1

529874R1

SUPPORT

BRACKET, left

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

51 mm

2шт.

103325

LOCK WASHER,5/8"

2шт.

2

538406R1

COTTER PIN

2шт.

3

3118060R1

PIN

ASSY.

2шт.

4

3121157R91

LOWER LINK

front, L.H.

1шт.

32-2024

COTTER PIN,5/16" x 1 1/2"

1шт.

5

3118063R1

PIN

2шт.

6

403019R2

END FITTING

LINK lower, rear, L.H.

1шт.

7

662632R1

SPRING

2шт.

8

3121228R1

BRACKET

2шт.

271554

GREASE,Hex, 5/8" - 11 x 1", Gr 5

BOLT

4шт.

9

533189R1

PIN

linch

2шт.

10

403020R2

END FITTING

LINK lower, rear, R.H.

1шт.

11

3121158R91

LOWER LINK

front, R.H.

1шт.

32-2024

COTTER PIN,5/16" x 1 1/2"

1шт.

12

403023R1

LATCH

2шт.

13

403024R1

SPRING

2шт.

14

19853R1

LOCK NUT,7/8"-14

Not used

2шт.

16

527985R1

EYEBOLT,Eye, 7/8" - 14 x 1.90"

BOLT, EYE

2шт.

17

528112R2

PIN,15.77mm OD x 54.61mm L

2шт.

108630

COTTER PIN,1/8" x 7/8"

2шт.

18

3118016R1

CLEVIS,7/8" - 14

ASSY., L.H. thread

2шт.

19

3116619R1

NUT

2шт.

20

219754

BACK-UP RING

2шт.

21

70622C1

CLEVIS,7/8" - 14

2шт.

22

528112R2

PIN,15.77mm OD x 54.61mm L

2шт.

108630

COTTER PIN,1/8" x 7/8"

2шт.

23

3113595R1

CHAIN,139.7mm L

2шт.

24

528112R2

PIN,15.77mm OD x 54.61mm L

4шт.

108630

COTTER PIN,1/8" x 7/8"

2шт.

25

3113594R1

PLATE

4шт.

26

529875R1

SUPPORT

BRACKET right

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

51 mm

2шт.

103325

LOCK WASHER,5/8"

2шт.

27

720631R1

LINCH PIN

CLIP spring

2шт.

28

591261R1

PIN,3/8" x 2 1/8", Coiled

2шт.

29

19903R1

PIN,1/2" x 1 3/4", Coiled

2шт.

1092798R3

DECAL

PRODUCT GRAPHIC, English, not illustrated

1шт.

1092799R3

DECAL

PRODUCT GRAPHIC, Francais, not illustrated

1шт.

1092800R3

DECAL

PRODUCT GRAPHIC, Espanol, not illustrated

1шт.

1092801R3

DECAL

PRODUCT GRAPHIC, Deutsch, not illustrated

1шт.

1092802R3

DECAL

PRODUCT GRAPHIC, Svenskt, not illustrated

1шт.

1092803R3

DECAL

PRODUCT GRAPHIC, Suomi, not illustrated

1шт.

1092804R3

DECAL

PRODUCT GRAPHIC, Dansk, not illustrated

1шт.

1092806R3

DECAL

PRODUCT GRAPHIC, Norge, not illustrated

1шт.
