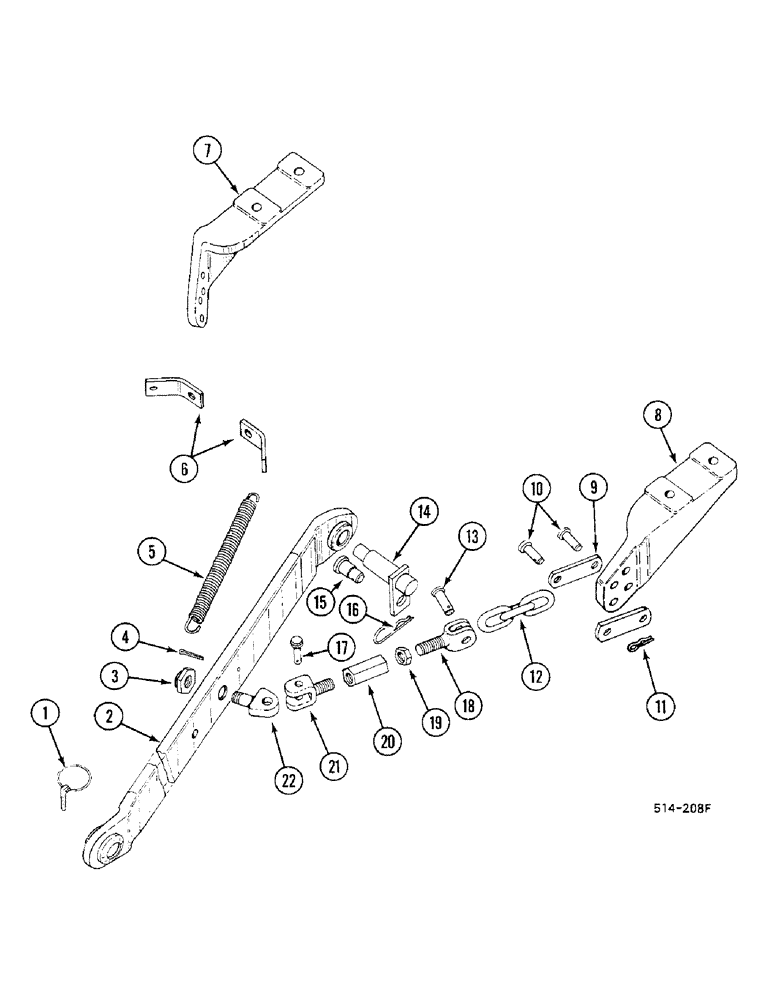

Запчасти Case IH 685 (9-790) - LOWER LINKS - THREE POINT HITCH, 33 INCH FIXED, VERSION WITH OUTSIDE CHECK CHAINS (09) - CHASSIS/ATTACHMENTS

1

533189R1

PIN

linch

2шт.

2

3118064R91

LOWER LINK

2шт.

3

19853R1

LOCK NUT,7/8"-14

2шт.

4

32-2024

COTTER PIN,5/16" x 1 1/2"

1шт.

5

662632R1

SPRING

2шт.

6

3121228R1

BRACKET

2шт.

271554

GREASE,Hex, 5/8" - 11 x 1", Gr 5

BOLT

4шт.

7

529874R1

SUPPORT

BRACKET left

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

BOLT, 51 mm

2шт.

103325

LOCK WASHER,5/8"

2шт.

8

529875R1

SUPPORT

BRACKET right

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

BOLT, 51 mm

2шт.

103325

LOCK WASHER,5/8"

2шт.

9

3113594R1

PLATE

4шт.

10

528112R2

PIN,15.77mm OD x 54.61mm L

4шт.

108630

COTTER PIN,1/8" x 7/8"

2шт.

11

720631R1

LINCH PIN

CLIP spring

2шт.

12

3113595R1

CHAIN,139.7mm L

2шт.

13

528112R2

PIN,15.77mm OD x 54.61mm L

2шт.

108630

COTTER PIN,1/8" x 7/8"

2шт.

14

3118060R1

PIN

2шт.

15

3118063R1

PIN

2шт.

16

538406R1

COTTER PIN

2шт.

17

528112R2

PIN,15.77mm OD x 54.61mm L

2шт.

108630

COTTER PIN,1/8" x 7/8"

2шт.

18

70622C1

CLEVIS,7/8" - 14

2шт.

19

219754R1

NUT

2шт.

20

3116619R1

NUT

2шт.

21

3118016R1

CLEVIS,7/8" - 14

ASSY., L.H. thread

2шт.

22

527985R1

EYEBOLT,Eye, 7/8" - 14 x 1.90"

BOLT, EYE

2шт.

1093311R1

DECAL

PRODUCT GRAPHIC, English, not illustrated

1шт.

1092798R3

DECAL

PRODUCT GRAPHIC, English, not illustrated

1шт.

1092799R3

DECAL

PRODUCT GRAPHIC, Francais, not illustrated

1шт.

1092800R3

DECAL

PRODUCT GRAPHIC, Espanol, not illustrated

1шт.

1092801R3

DECAL

PRODUCT GRAPHIC, Deutsch, not illustrated

1шт.

1092802R3

DECAL

PRODUCT GRAPHIC, Svenskt, not illustrated

1шт.

1092803R3

DECAL

PRODUCT GRAPHIC, Suomi, not illustrated

1шт.

1092804R3

DECAL

PRODUCT GRAPHIC, Dansk, not illustrated

1шт.

1092806R3

DECAL

PRODUCT GRAPHIC, Norge, not illustrated

1шт.
