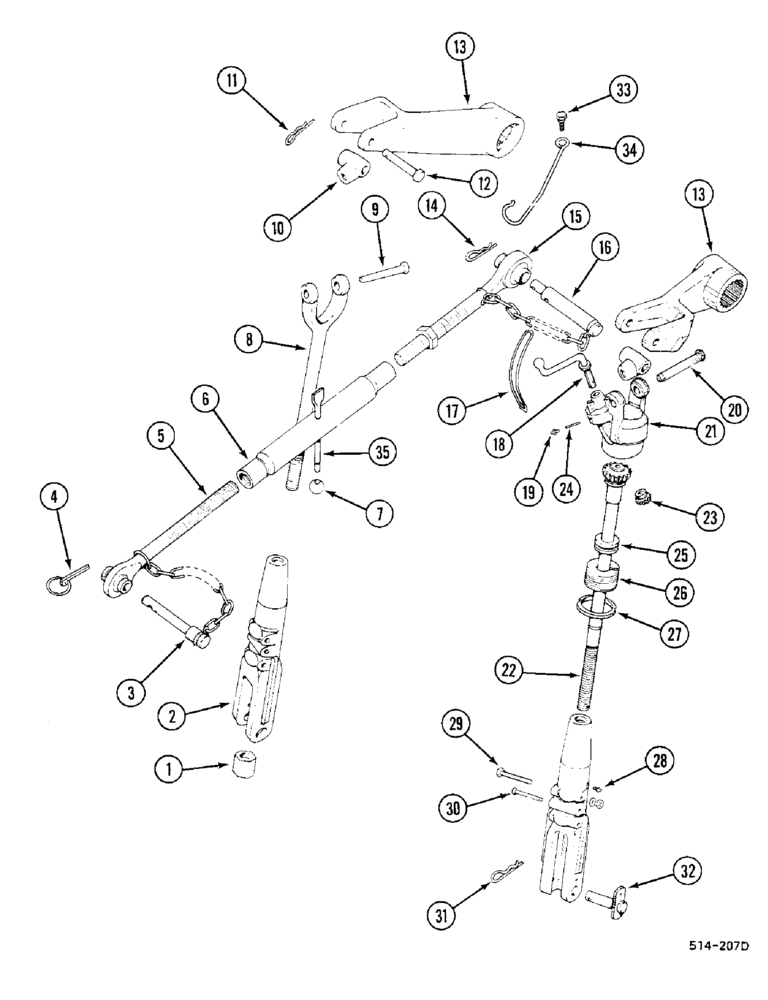

Запчасти Case IH 685 (9-782) - THREE POINT HITCH (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
527937R1
NUT
2шт.
2
3121964R1
HOUSING
2шт.
Version with and without automatic hitch.
1шт.
2
3121965R1
HOUSING
2шт.
Version with automatic hitch and with telescopic lower links
1шт.
Version without automatic hitch and with telescopic lower links.
1шт.
528079R91
UPPER LINK
Consists of: Ref. 3E - 7E, 15E, 16E, and 35E
1шт.
1328195C91
LINK
upper, consist of: Ref. 3F - 6F, 15F, and 16F
1шт.
3
528081R1
PIN ASSY.
1шт.
Link, upper Part Number 528079R91
1шт.
3
1328192C1
PIN
1шт.
Link, upper Part Number 1328195C91
1шт.
1328193C1
CHAIN (AG)
ASSEMBLY, category I
1шт.
4
533189R1
PIN
linch
1шт.
Link, upper Part Number 528079R91
1шт.
4
1328218C1
LINCH PIN,11mm OD
1шт.
Link, upper Part Number 1328195C91
1шт.
5
527996R1
SCREW
SCREW ASSEMBLY
1шт.
Link, upper Part Number 528079R91
1шт.
5
1328190C1
SCREW,M27 x 3
SCREW ASSEMBLY
1шт.
Link, upper Part Number 1328195C91
1шт.
905709R1
THIN NUT,Thin, M27 x 3
R.H. thread
1шт.
6
528003R1
TURNBUCKLE
1шт.
Link, upper Part Number 528079R91
1шт.
6
1328196C1
TRUNNION,M27 x 3
TURNBUCKLE
1шт.
Link, upper Part Number 1328195C91
1шт.
7
3048296R1
BUTTON
KNOB
1шт.
Link, upper Part Number 528079R91
1шт.
8
527948R91
CLEVIS,7/8" - 9
YOKE ASSEMBLY, left
1шт.
8
527948R91GV
LEVELLING DEVICE
Value, Yoke Assy.
1шт.
8
527935R11
CLEVIS
YOKE ASSEMBLY, right, row crop
1шт.
8
527948R91GV
LEVELLING DEVICE
Value, Yoke Assy.
1шт.
9
3044309R1
PIN
2шт.
10
539247R1
BRACKET, PIVOT
PIVOT BRACKET SWIVEL
2шт.
10
704207R3
PIVOT
SWIVEL row crop
2шт.
11
720631R1
LINCH PIN
CLIP spring
2шт.
Version without automatic hitch and with telescopic lower links.
1шт.
Version without automatic hitch
1шт.
12
3044309R1
PIN
2шт.
Version without automatic hitch and with telescopic lower links.
1шт.
Version without automatic hitch
1шт.
13
402634R2
ROCKER ARM
2шт.
14
530049R1
CLIP, SPRING
1шт.
15
527994R1
SCREW
ASSEMBLY
1шт.
Link, upper Part Number 528079R91
1шт.
15
1328189C1
SCREW,M27 x 3, LH Threads
SCREW ASSEMBLY, L.H. tread
1шт.
Link, upper Part Number 1328195C91
1шт.
272139
END PLATE
1шт.
16
528084R1
HITCH PIN
ASSEMBLY
1шт.
Link, upper Part Number 528079R91
1шт.
16
1328194C1
PIN
Assy
1шт.
Link, upper Part Number 1328195C91
1шт.
1328193C1
CHAIN (AG)
category II
1шт.
17
3072424R2
CLIP
1шт.
18
527943R1
CRANK
HANDLE
1шт.
19
109461
LUBE NIPPLE,1/8"-27 x .66 lg
1шт.
20
3069069R1
PIN
1шт.
21
3072422R2
HOUSING
1шт.
69993C91
SET SCREW
1шт.
69988C1
ADJUSTMENT SCREW
SCREW ASSEMBLY
1шт.
22
3116725R91
SCREW
1шт.
3116726R1
SCREW
right, optional
1шт.
23
3069063R1
GEAR
1шт.
24
435-1612
GROOVED PIN,3/16" x 3/4", Type A
3/16" x 3/4", Type A
2шт.
25
3044346R91
BALL BEARING
1шт.
25
3044347R91
THRUST BEARING
BEARING thrust
1шт.
25
3044348R91
BEARING, THRUST
1шт.
25
3068049R91
BALL BEARING
thrust, optional
1шт.
26
3069064R1
BEARING
BEARING
1шт.
27
3069065R1
LOCK NUT
1шт.
28
86504104
LUBE NIPPLE,1/4" x .56" lg, Drive
2шт.
29
179828
BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5
2шт.
9635082
NUT,5/16" - 18, Gr 5
2шт.
80681
LOCK WASHER,5/16"
2шт.
30
68804C1
CLEVIS PIN,7.94mm OD x 58.74mm L
2шт.
107762
WASHER,3/32" x 5/8"
2шт.
31
530049R1
CLIP, SPRING
2шт.
Version without automatic hitch
1шт.
Version with automatic hitch
1шт.
31
533189R1
PIN
linch
2шт.
Version with automatic hitch and with telescopic lower links
1шт.
Version without automatic hitch and with telescopic lower links.
1шт.
32
1502066C1
PIVOT PIN
2шт.
Version without automatic hitch
1шт.
Version with automatic hitch
1шт.
32
402645R1
PIN
2шт.
Version with automatic hitch and with telescopic lower links
1шт.
Version without automatic hitch and with telescopic lower links.
1шт.
33
391047R1
BOLT,Shldr, Hex, 3/8" - 16 x 1.18"
1шт.
23042R1
WASHER
1шт.
34
530050R3
CLIP,ELECTRICAL
HOOK
1шт.
35
65958C2
ROD
1шт.
Link, upper Part Number 528079R91
1шт.
Выбрано товаров: 95
