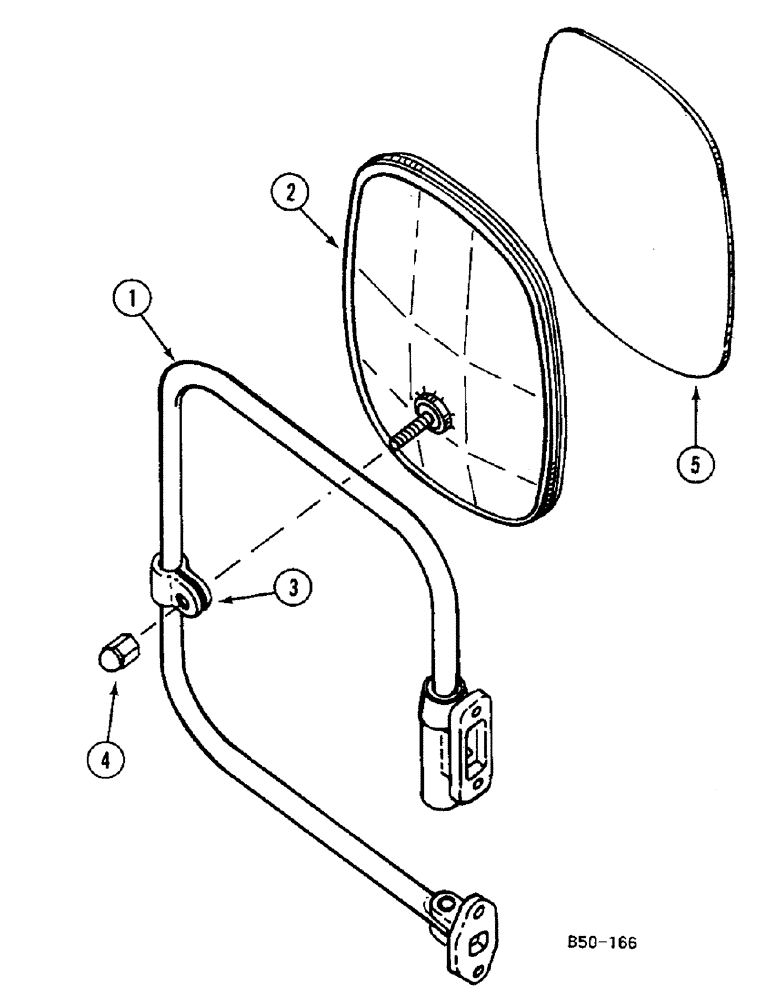

Запчасти Case IH 685 (9-748) - WING MIRROR "D" ARM (09) - CHASSIS/ATTACHMENTS

1

3125170R91

ARM

with: Ref. 3

2шт.

427712

SCREW,Cross Flat Hd, 1/4"-28 x 3/4"

4шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

4шт.

3118075R1

HEX SOC SCREW

4шт.

2

3125280R91

MIRROR ASSY.

with: Ref. 4 and 5

2шт.

3

3125300R1

CLAMP

2шт.

4

3125299R1

NUT

2шт.

5

3125298R1

GLASS

2шт.

1500619C1

PLUG

not illustrated

4шт.
