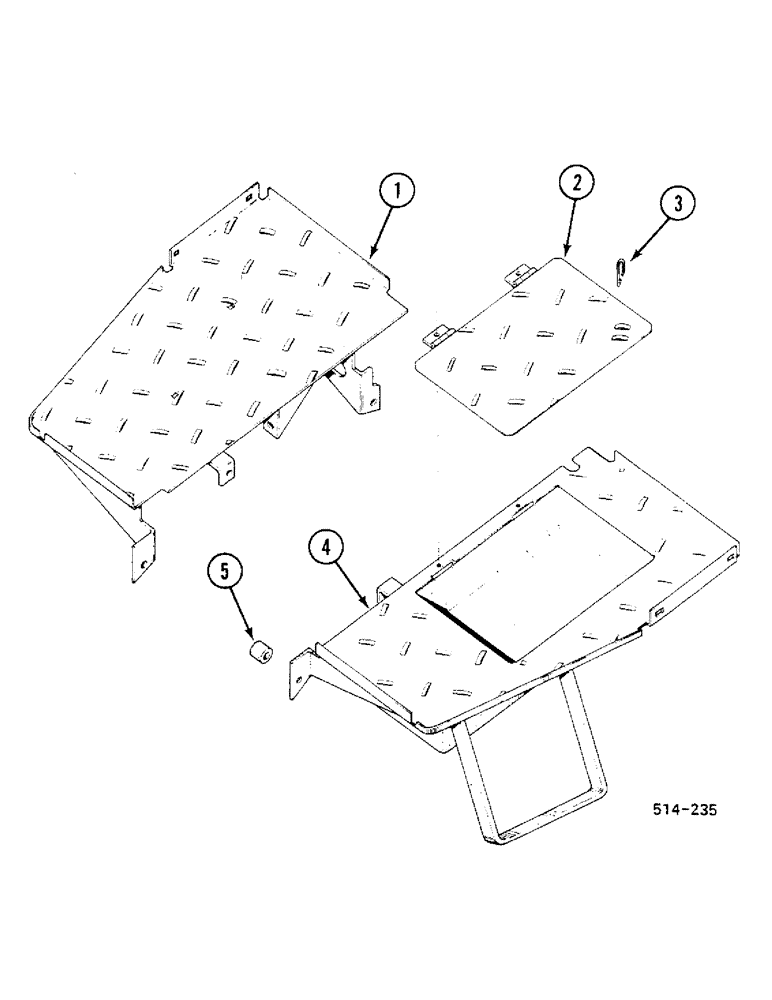

Запчасти Case IH 685 (9-746) - PLATFORM MOUNTING STEP AND TOOL BOX, VERSION WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

528523R2

STEP

PLATFORM ASSY., right

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

102635

NUT,3/8"-16, G5

2шт.

103323

LOCK WASHER,1/2"

2шт.

103321

LOCK WASHER,3/8"

3шт.

95-11041

WASHER,3/8"

2шт.

2

538421R1

COVER ASSY

1шт.

3

528917R1

RING

1шт.

4

528910R2

PLATFORM ASSY.

left

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT

2шт.

102635

NUT,3/8"-16, G5

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

103323

LOCK WASHER,1/2"

2шт.

103321

LOCK WASHER,3/8"

3шт.

95-11041

WASHER,3/8"

2шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

2шт.

492-11025

LOCK WASHER,1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

5

528909R1

SPACER

left

1шт.
