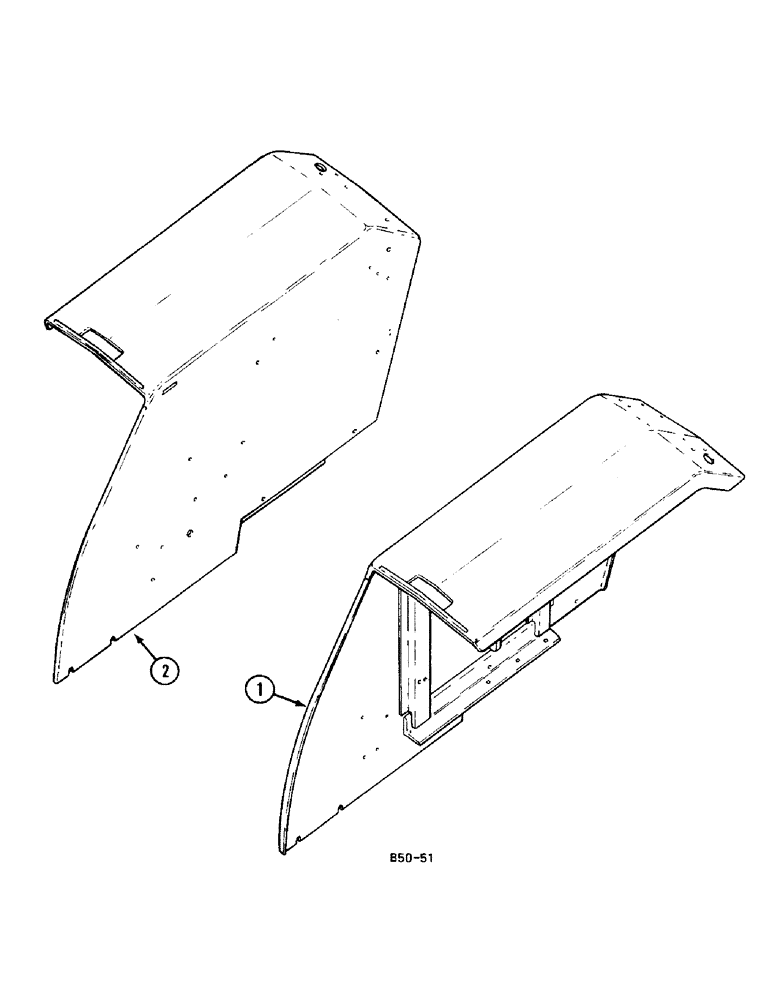

Запчасти Case IH 685 (9-740) - REAR FENDERS - FLAT TOP - (09) - CHASSIS/ATTACHMENTS

1

3123100R6

MUD DEFLECTOR

FENDER ASSY., left

1шт.

2

3123101R6

MUD DEFLECTOR

FENDER ASSY., right

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

80681

LOCK WASHER,5/16"

6шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

BOLT rear top cover

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

Transmission housing or draft housing control

2шт.

181163

SCREW,Hex, 1/2" - 13 x 1 1/4", Gr 5

BOLT

4шт.

116121

LOCK WASHER,1/2"

Axle carrier

4шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

BOLT

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

3шт.

3112888R1

PLUG

blanking, 13 mm, plough light, not illustrated

1шт.

3125820R1

SLEEVE

not illustrated

8шт.
