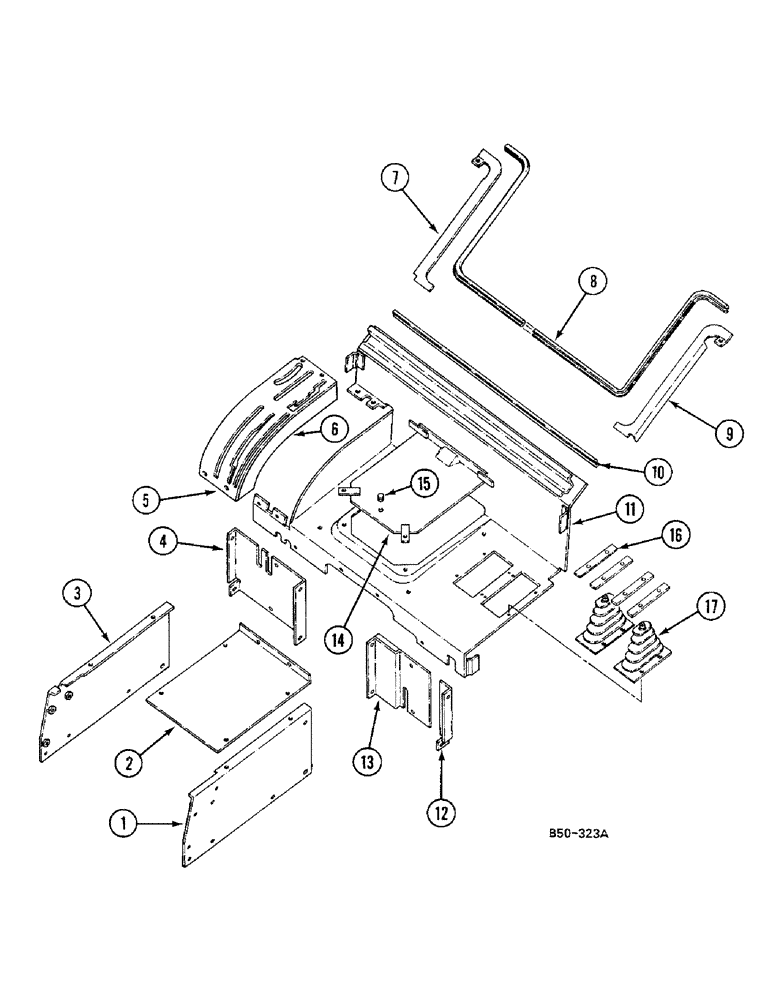

Запчасти Case IH 685 (9-730) - REAR PANELS (09) - CHASSIS/ATTACHMENTS

1

3116174R3

PLATE ASSY.

left

1шт.

3123771R1

INSULATOR

SPARE PART

1шт.

3112992R1

NUT

4шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

3шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

7шт.

103319

LOCK WASHER,1/4"

7шт.

179795

TILLAGE BLADE

4шт.

139280H1

SPACER

SPARE PART

3шт.

2

3116183R1

PLATE

1шт.

3123769R1

INSULATOR

1шт.

179795

TILLAGE BLADE

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

lock, 1/4 inch

4шт.

103319

LOCK WASHER,1/4"

4шт.

3

3116176R1

PLATE ASSY.

SPARE PART right

1шт.

3123773R1

INSULATOR

INSULATOR

1шт.

3112992R1

NUT

4шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

3шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

7шт.

103319

LOCK WASHER,1/4"

7шт.

179795

TILLAGE BLADE

4шт.

139280H1

SPACER

SPARE PART

3шт.

4

3116171R1

CHANNEL

rear, R.H.

1шт.

179795

TILLAGE BLADE

5шт.

103319

LOCK WASHER,1/4"

5шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

5шт.

109084

NUT,1/4"-20, G5

1шт.

5

1331005C1

HOUSING, models 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

5

3116173R3

HOUSING

model 685 to Use up to S/N 13593

1шт.

5

3116173R3

HOUSING

model 885 to Use up to S/N 3401

1шт.

179795

TILLAGE BLADE

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

103319

LOCK WASHER,1/4"

4шт.

6

3116807R3

INSULATOR

1шт.

7

3118650R2

SUPPORT

right

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

2шт.

120392

WASHER,1/4", SAE

lock

2шт.

23985R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

1шт.

8

1265294C1

STRIP

sealing, bulk length

1шт.

9

3118649R2

SUPPORT

left

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

2шт.

120392

WASHER,1/4", SAE

lock

2шт.

23985R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

1шт.

10

1265294C1

STRIP

sealing, bulk length

1шт.

11

3129290R3

PLATE

PLATFORM

1шт.

3118843R1

NUT

12шт.

3112951R1

NUT

4шт.

179795

TILLAGE BLADE

8шт.

109084

NUT,1/4"-20, G5

8шт.

103319

LOCK WASHER,1/4"

8шт.

120392

WASHER,1/4", SAE

lock

8шт.

12

3116810R2

CHANNEL

outer, left

1шт.

179795

TILLAGE BLADE

2шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

103319

LOCK WASHER,1/4"

2шт.

13

1500538C3

CHANNEL

inner, left

1шт.

179795

TILLAGE BLADE

2шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

2шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

103319

LOCK WASHER,1/4"

2шт.

14

3116161R1

PLATE

SPARE PART

1шт.

179795

TILLAGE BLADE

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

103319

LOCK WASHER,1/4"

4шт.

15

538239R1

PLUG

blanking

1шт.

16

1502032C1

STRIP

4шт.

24382R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/4"

8шт.

17

1502031C1

BOOT

2шт.
