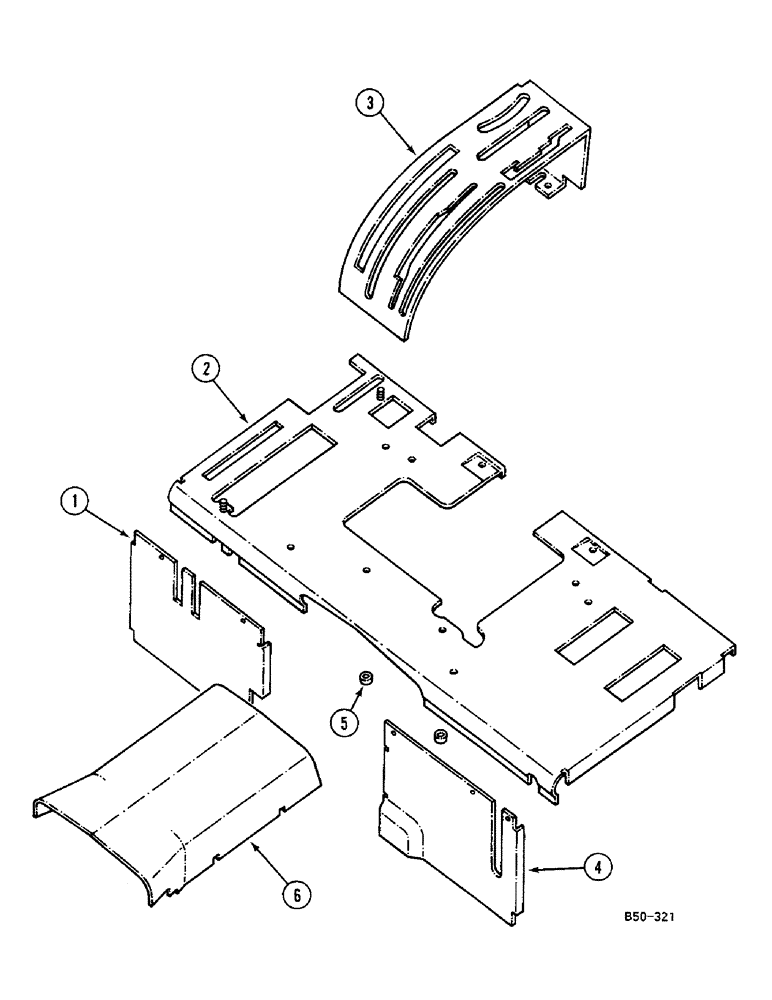

Запчасти Case IH 685 (9-726) - REAR PANELS - SYNCHROMESH -, VERSION WITHOUT A CAB (09) - CHASSIS/ATTACHMENTS

1

94161C1

PROTECTION PLATE

CHANNEL ASSY., models 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

1

527858R3

CHANNEL

ASSY., model 685 to Use up to S/N 13595

1шт.

1

527858R3

CHANNEL

ASSY., model 885 to Use up to S/N 3401

1шт.

3109296R1

BOLT

3шт.

2

99656C1

PLATFORM

COVER, models 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

2

3129233R1

COVER ASSY

model 685 to Use up to S/N 13595

1шт.

3129233R1

COVER ASSY

model 885 to Use up to S/N 3401

1шт.

120368

NUT,5/16"-24, G5

5шт.

80681

LOCK WASHER,5/16"

5шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

3

1331007C1

HOUSING

models 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

3

1331009C1

HOUSING

SPARE PART models 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

3

529457R61

COVER ASSY

model 685 to Use up to S/N 13595

1шт.

3

529457R61

COVER ASSY

model 885 to Use up to S/N 3401

1шт.

3

3121558R2

COVER ASSY

model 685 to Use up to S/N 13595

1шт.

3

3121558R2

COVER ASSY

model 885 to Use up to S/N 3401

1шт.

4

528638R2

PROTECTION PLATE

CHANNEL ASSY.

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

3шт.

5

401941R1

SPACER

2шт.

6

66290C1

COVER

ASSY.

1шт.

470-1256

SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"

4шт.

3125820R1

SLEEVE

not illustrated

6шт.

1265283C1

STRIP

SPARE PART rubber, bulk length, not illustrated

1шт.
