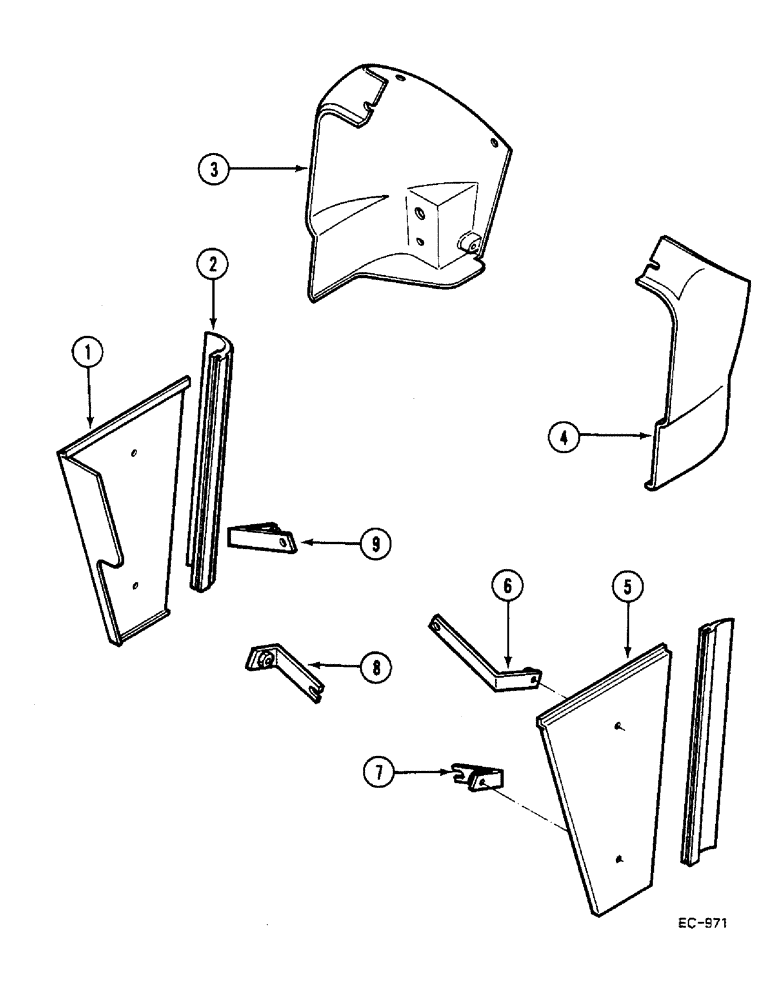

Запчасти Case IH 685 (9-690) - INSTRUMENT PANEL SIDE HOUSING, VERSION WITH CAB (09) - CHASSIS/ATTACHMENTS

1

1500098C1

PANEL

right

1шт.

3118624R1

SCREW

2шт.

2

1265280C1

SEAL

bulk length

1шт.

3

3121710R2

HOUSING

upper, R.H.

1шт.

3121715R1

SPRING NUT

3шт.

24394R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

3шт.

3114406R1

PLUG

blanking

1шт.

4

3121709R2

HOUSING

upper, L.H.

1шт.

3121715R1

SPRING NUT

3шт.

24394R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

3шт.

3114406R1

PLUG

blanking

1шт.

5

1500097C1

PANEL

left

1шт.

3118624R1

SCREW

2шт.

6

1500089C1

BRACKET

SPARE PART upper, L.H.

1шт.

102635

NUT,3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

7

1500093C1

BRACKET

SPARE PART lower, L.H.

1шт.

8

1500094C1

BRACKET

lower, R.H.

1шт.

9

1500090C1

BRACKET

SPARE PART upper, R.H.

1шт.

102635

NUT,3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

1093231R1

PRODUCT GRAPHIC

left, not illustrated

1шт.

1093232R1

PRODUCT GRAPHIC

right, not illustrated

1шт.

3112888R1

PLUG

blanking, 13 mm, not illustrated

1шт.
