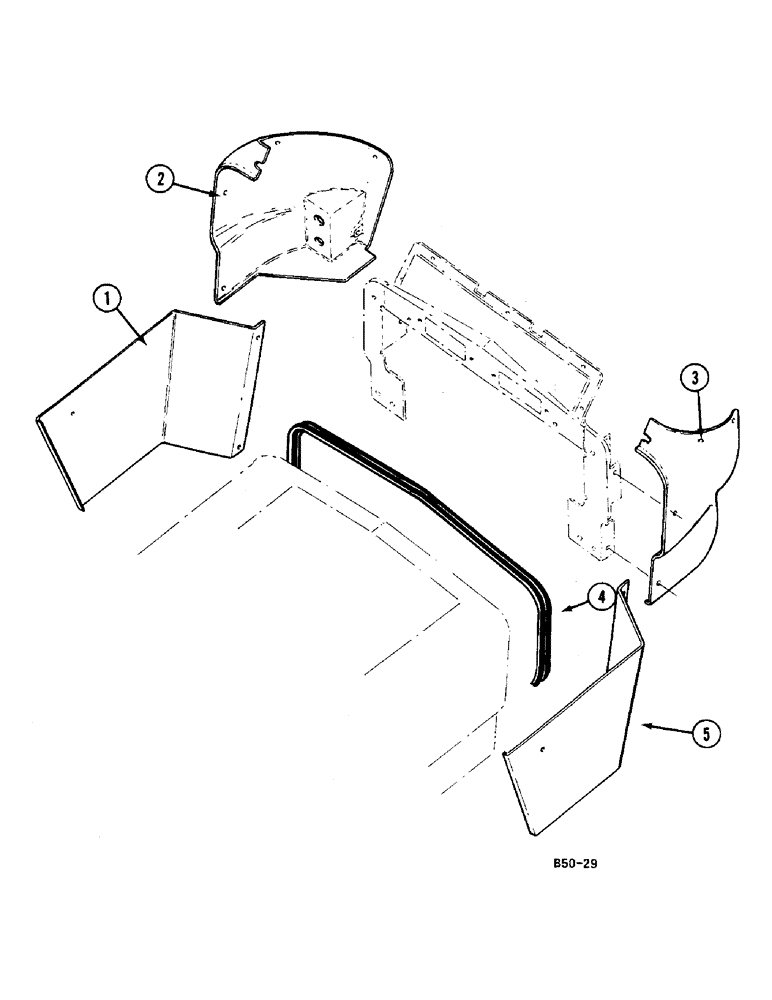

Запчасти Case IH 685 (9-688) - INSTRUMENT PANEL SIDE HOUSING, VERSION WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

3121638R1

GUARD

PANEL lower R.H.

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

3шт.

120392

WASHER,1/4", SAE

lock

3шт.

2

3121712R3

HOUSING

upper, R.H.

1шт.

3121715R1

SPRING NUT

3шт.

24394R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

3шт.

3114406R1

PLUG

blanking

1шт.

3

3121711R3

HOUSING

upper, L.H.

1шт.

3121715R1

SPRING NUT

3шт.

24394R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

3шт.

3114406R1

PLUG

blanking

1шт.

4

1265280C1

SEAL

bulk length

1шт.

5

3121637R1

GUARD

PANEL, lower L.H.

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

3шт.

1093231R1

PRODUCT GRAPHIC

left, not illustrated

1шт.

1093232R1

PRODUCT GRAPHIC

right, not illustrated

1шт.

3112888R1

PLUG

blanking, 13 mm, not illustrated

1шт.
