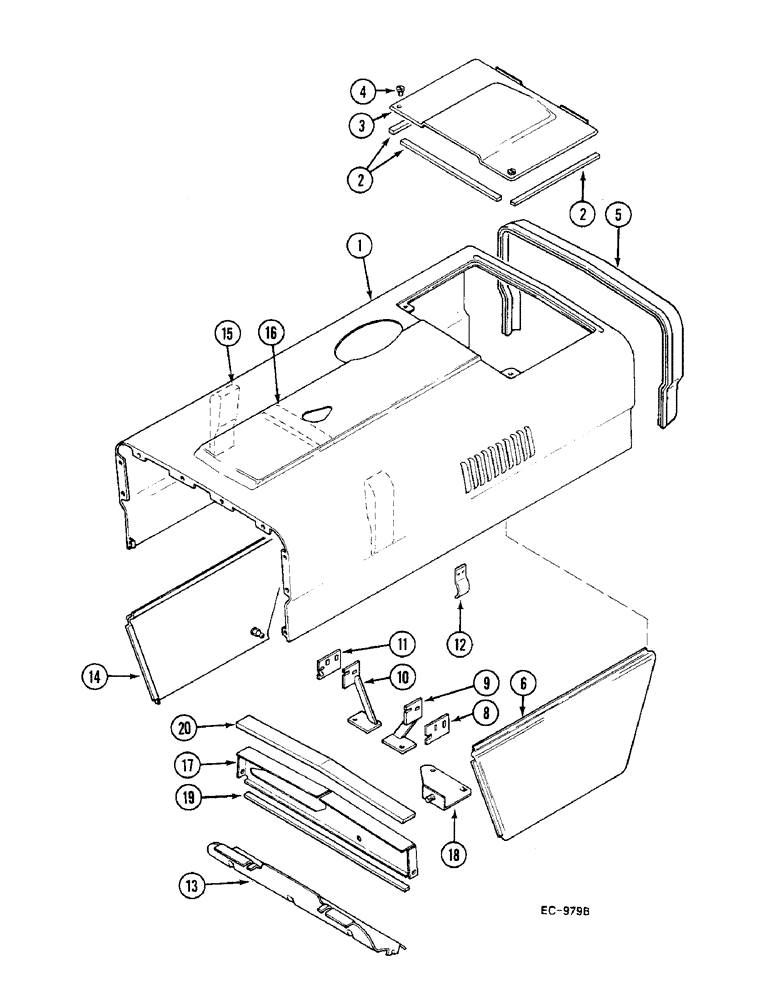

Запчасти Case IH 685 (9-670) - HOOD & PANELS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
94214C93
HOOD ASSY.
version without muffler
1шт.
1
94190C93
HOOD ASSY.
version with muffler
1шт.
1
94202C93
HOOD ASSY.
version with oil bath air cleaner
1шт.
9635082
NUT,5/16" - 18, Gr 5
2шт.
80681
LOCK WASHER,5/16"
2шт.
1502286C1
NUT
2шт.
98778C1
BOLT
4шт.
98775C1
WASHER
4шт.
2
1265282C1
STRIP
SEALING, bulk length
1шт.
3
3121393R91
COVER ASSY
1шт.
4
389872R1
THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"
2шт.
389872R1
THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"
optional
2шт.
376787R1
WASHER
2шт.
5
1265280C1
SEAL
bulk length
1шт.
6
1333168C1
PANEL
left, version with 4 wheel drive
1шт.
6
1970608C1
PANEL
left, not used
1шт.
8
99644C1
PLATE
ASSY., left, model number 685 to Use up to S/N 22375
1шт.
99644C1
PLATE
model number 785 to Use up to S/N 18003
1шт.
99644C1
PLATE
model number 885 to Use up to S/N 22044
1шт.
598794R1
CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5
BOLT
2шт.
231-4144
NUT,1/4"-20, GB
2шт.
8
1333180C1
CLIP
front, model number 685 Use S/N 22376 and, Start Serial: up
1шт.
1333180C1
CLIP
model number 785 Use S/N 18004 and, Start Serial: up
1шт.
1333180C1
CLIP
model number 885 Use S/N 22045 and, Start Serial: up
1шт.
9
99628C1
SUPPORT
left, model number 685 to Use up to S/N 22375
1шт.
99628C1
SUPPORT
model number 785 to Use up to S/N 18003
1шт.
99628C1
SUPPORT
model number 885 to Use up to S/N 22044
1шт.
9
1333184C1
SUPPORT
left, model number 685 Use S/N 22376 and, Start Serial: up
1шт.
1333184C1
SUPPORT
model number 785 Use S/N 18004 and, Start Serial: up
1шт.
1333184C1
SUPPORT
model number 885 Use S/N 22045 and, Start Serial: up
1шт.
10
99627C1
SUPPORT
right, model number 685 to Use up to S/N 22375
1шт.
99627C1
SUPPORT
right, model number 785 to Use, Start Serial: up
1шт.
99627C1
SUPPORT
right, model number 885 to Use, Start Serial: up
1шт.
10
1333183C1
SUPPORT
right, model number 675 Use S/N 22376 and, Start Serial: up
1шт.
1333183C1
SUPPORT
right, model number 775 Use S/N, Start Serial: 18
1шт.
1333183C1
SUPPORT
right, model number 885 Use S/N, Start Serial: 22
1шт.
11
99642C1
PLATE
right, model number 685 to Use up to S/N 22375
1шт.
99642C1
PLATE
model number 785 to Use up to S/N 18003
1шт.
99642C1
PLATE
model number 885 to Use up to S/N 22044
1шт.
598794R1
CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5
BOLT
2шт.
231-4144
NUT,1/4"-20, GB
2шт.
11
1333180C1
CLIP
front, model number 685 Use S/N 22376 and, Start Serial: up
1шт.
1333180C1
CLIP
model number 785 Use S/N 18004 and, Start Serial: up
1шт.
1333180C1
CLIP
model number 885 Use S/N 22045 and, Start Serial: up
1шт.
12
94367C1
SPRING
RETAINER
2шт.
30267R1
NUT,M4, Cl 8
model number 685 to Use up to S/N 22375
4шт.
30267R1
NUT,M4, Cl 8
model number 785 to Use up to S/N 18003
4шт.
30267R1
NUT,M4, Cl 8
model number 885 to Use up to S/N 22044
4шт.
12
1333181C1
CLIP
rear, model number 685 Use S/N 22376 and, Start Serial: up
2шт.
1333181C1
CLIP
model number 785 Use S/N 18004 and, Start Serial: up
2шт.
1333181C1
CLIP
model number 885 Use S/N 22045 and, Start Serial: up
2шт.
13
3121397R2
BAFFLE
1шт.
30209R1
WASHER,M6 x 13 x 2, HT
4шт.
103319
LOCK WASHER,1/4"
4шт.
30381R1
NUT,M6 x 1, Cl 10
4шт.
14
1333167C1
PANEL
right, version with 4 wheel drive
1шт.
14
1970607C1
PANEL
right
1шт.
15
98935C1
SEAL
STRIP filling, bulk length
2шт.
16
NSS
NOT SOLD SEPARAT
STRIP bulk length
1шт.
17
98906C1
DEFLECTOR
BAFFLE
1шт.
17
1333035C1
DEFLECTOR
BAFFLE, version with 4 wheel drive, model 685 Use S/N 22746 and, Start Serial: up
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
3шт.
492-11025
LOCK WASHER,1/4"
3шт.
18
98911C1
BRACKET
1шт.
18
1333026C1
BRACKET
version with 4 wheel drive, model 685 Use S/N 22746 and, Start Serial: up
1шт.
3118801R1
SPACER
1шт.
95-11034
WASHER,1/4"
1шт.
120376
NUT,5/16"-18, G5
1шт.
19
NSS
NOT SOLD SEPARAT
STRIP filling
1шт.
20
NSS
NOT SOLD SEPARAT
STRIP filling
1шт.
Выбрано товаров: 72
