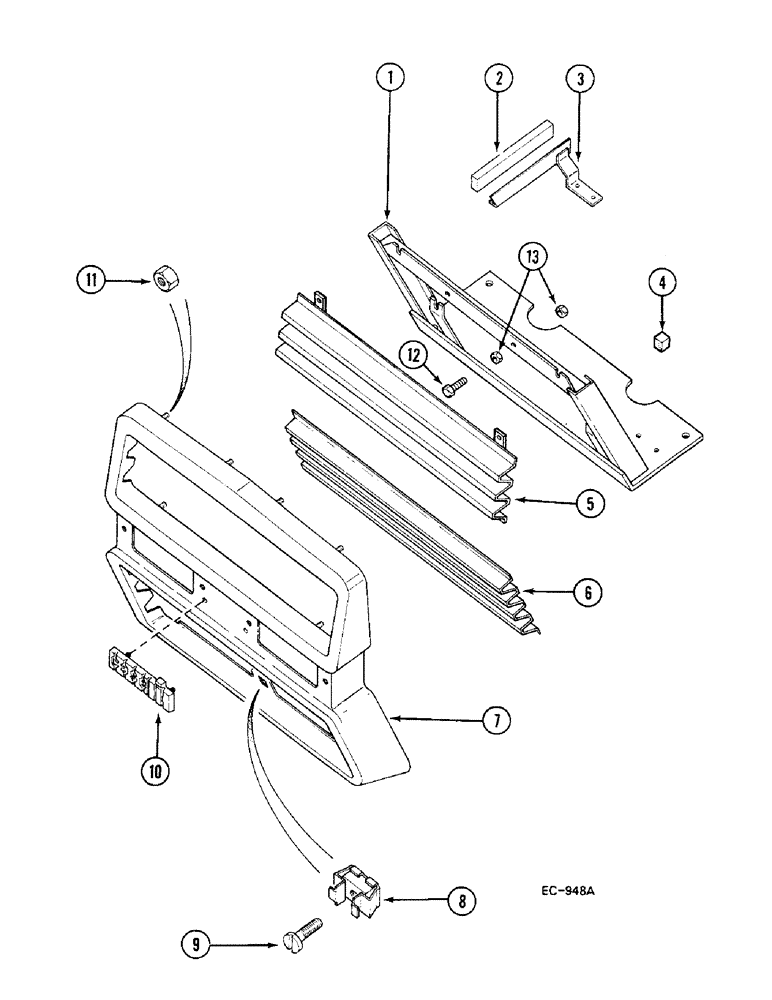

Запчасти Case IH 685 (9-666) - RADIATOR GRILLE (09) - CHASSIS/ATTACHMENTS

1

99440C3

SUPPORT

ASSY.

1шт.

1

1333015C1

SUPPORT

ASSY., version with 4 wheel drive, model number 685 Use S/N 22746 and, Start Serial: up

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

99854C1

SHIM

1шт.

2

73228C1

GASKET

STRIP filling, bulk length

2шт.

3

1970647C1

BRACKET

SUPPORT right

1шт.

3

1970648C1

BRACKET

SUPPORT left

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

120392

WASHER,1/4", SAE

lock

4шт.

4

73220C1

FILLING STRIP

SEAL, bulk length

2шт.

5

94283C1

SCREEN

filter, upper

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

120392

WASHER,1/4", SAE

lock

4шт.

6

94285C1

SCREEN

filter, lower

1шт.

7

1970623C1

GRILLE

ASSY.

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

120392

WASHER,1/4", SAE

lock

4шт.

8

99424C1

NUT

RETAINER

1шт.

9

160544

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

1шт.

10

A181523

EMBLEM CASE/IH

1шт.

131431

NUT

2шт.

11

120375

NUT,Hex, 1/4" - 20, Gr 5

10шт.

120392

WASHER,1/4", SAE

lock

10шт.

12

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

2шт.

13

120377

NUT,3/8" - 16, Gr 5

4шт.
