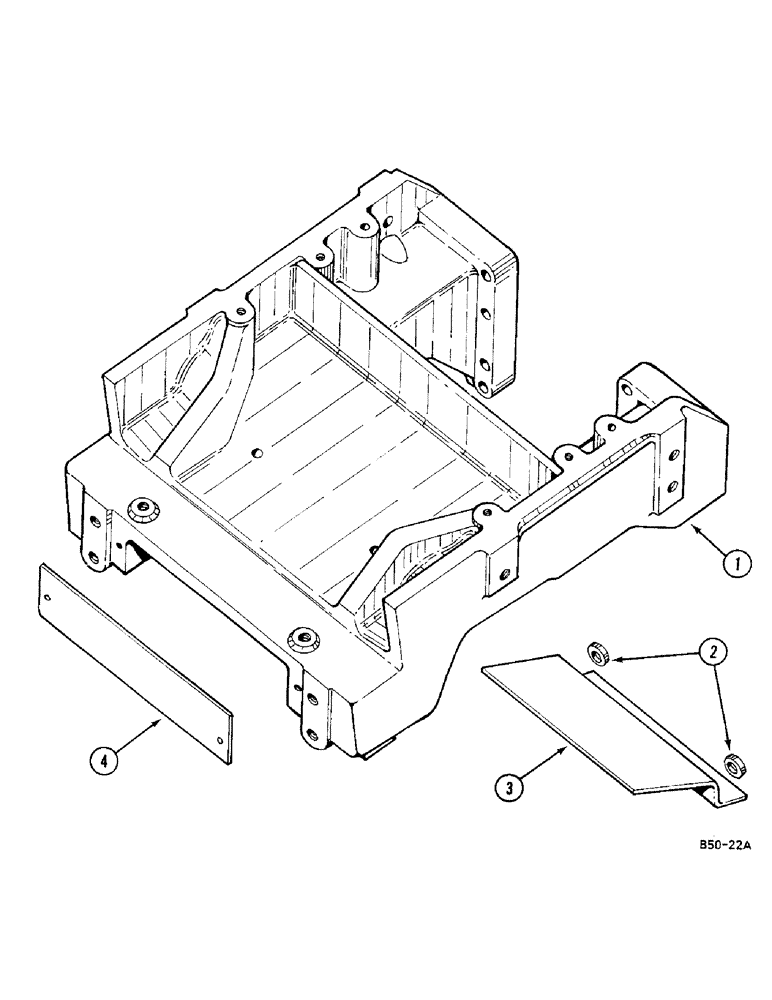

Запчасти Case IH 685 (9-664) - FRONT BOLSTER, 685 : -13595, 885 : -3401, FOR 4-WHEEL DRIVE TRACTORS (09) - CHASSIS/ATTACHMENTS

1

3121169R3

BOLSTER

1шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

6шт.

24970R1

BOLT

Optional

6шт.

2

534813R1

SPACER

1шт.

3

1500014C1

BAFFLE

1шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

BOLT, 5/8 x 3-1/4 inch, Course Threads

2шт.

369936R1

WASHER

2шт.

4

3121168R3

COVER

1шт.

20716R1

SCREW,Sl Pan Hd, 5/16" - 18 x 1/2"

2шт.

80681

LOCK WASHER,5/16"

2шт.
