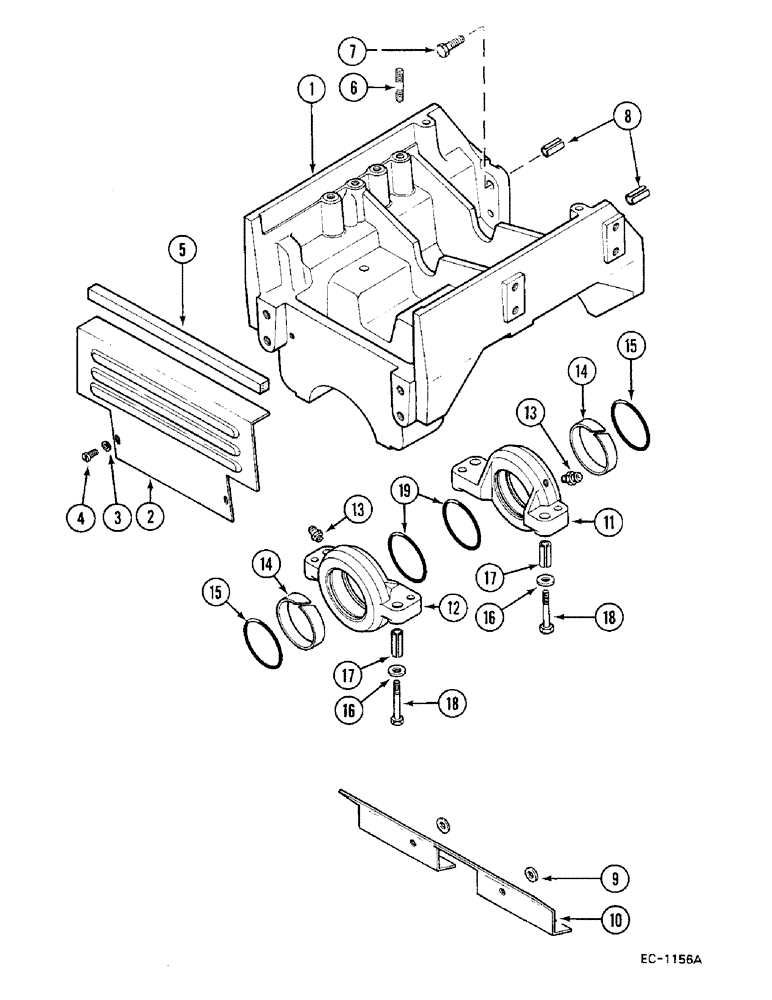

Запчасти Case IH 685 (9-660) - FRONT BOLSTER - 4 WHEEL DRIVE, 685 : 18001-, 885 : 18001- (09) - CHASSIS/ATTACHMENTS

1

94180C1

AXLE SUPPORT

1шт.

1

1333030C1

AXLE SUPPORT

BOLSTER, model number 685 Use S/N 22746 and, Start Serial: up

1шт.

2

94366C1

COVER

1шт.

2

1333024C1

COVER

BOLSTER, model number 685 Use S/N 22746 and, Start Serial: up

1шт.

3

80681

LOCK WASHER,5/16"

2шт.

4

3118624R1

SCREW

2шт.

5

73212C1

GASKET

STRIP filling

1шт.

6

99688C1

STUD

2шт.

7

24878R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8

8шт.

8

99499C1

PIN

ROLL

2шт.

9

82744C1

WASHER

2шт.

10

99513C1

BAFFLE

1шт.

11

82014C3

BEARING

BRACKET

1шт.

12

82015C3

BEARING

BRACKET

1шт.

13

933781R1

LUBE NIPPLE,M10 x 1

58 mm

2шт.

14

82011C1

BUSHING

2шт.

15

82091C1

O-RING,5mm Thk x 120mm ID, 88 Duro

2шт.

16

3141764R1

WASHER

8шт.

17

905679R1

LOCK PIN,M21 x 36, Slotted

ROLL

4шт.

18

905636R1

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9, Full Thd

Bolt, Hex, M16 x 80, 10.9

8шт.

19

90219C1

O-RING,5mm Thk x 120mm ID, 88 Duro

2шт.
