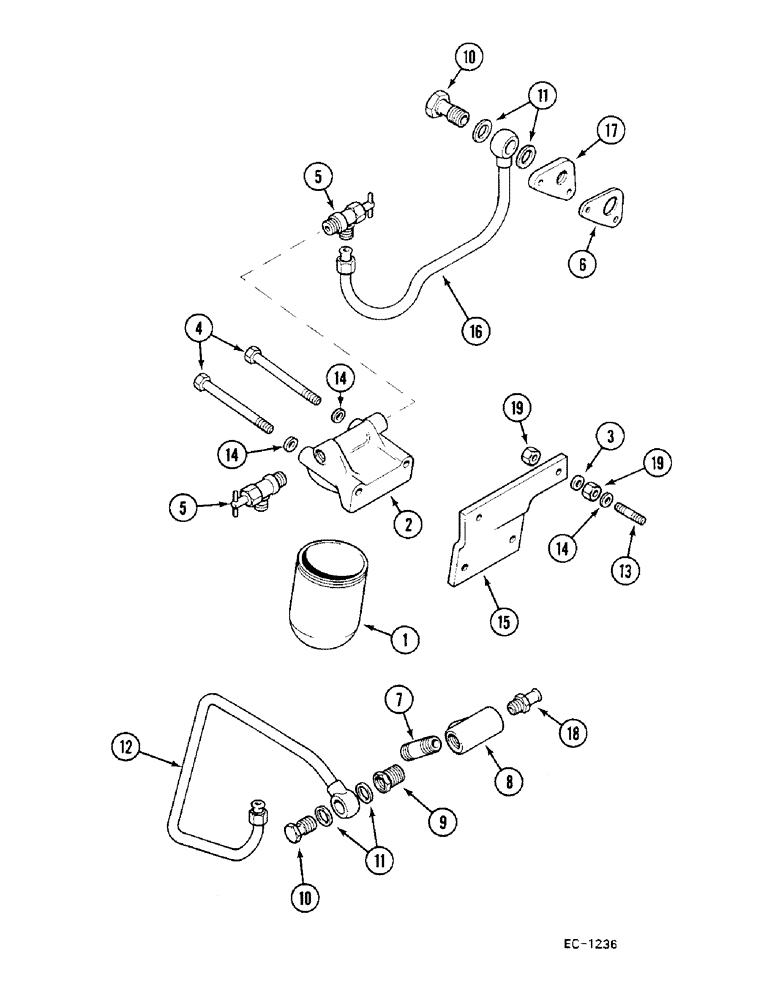

Запчасти Case IH 685 (2-012) - COOLANT FILTER (02) - ENGINE

1

1329039C1

FILTER, ELEMENT

ELEMENT, FILTER

1шт.

2

1800029C1

HEAD

1шт.

3

25534R1

WASHER

2шт.

4

186285

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

5

690191C1

COCK, DRAIN

TAP

2шт.

6

3055306R1

GASKET

JOINT

1шт.

7

191032

PIPE,Nipple, 1/2" NPT x 1 1/2", Brass

1шт.

8

144085

TEE,1/2" NPT, Fem

1шт.

9

444034

REDUCER,1/2"-14 NPTF x 3/8"-18 Fem NPTF

Adapter

1шт.

10

930241R1

BANJO BOLT,M16 x 1.5 x 36mm

hollow

2шт.

11

933155R1

SEALING RING,M16 x 20 x 1.5

4шт.

12

1329008C91

PIPE,350, 286mm L

TUBE

1шт.

3228191R1

SEALING WASHER

SLEEVE

1шт.

13

3228188R1

STUD

2шт.

14

20285H

WASHER

4шт.

15

1329062C1

SUPPORT

BRACKET

1шт.

16

1329064C91

PIPE

TUBE

1шт.

17

3218396R2

FLANGE

COVER

1шт.

18

444630

PLUG,Hex Hd, 1/2"-14

1шт.

18

1502001C1

FITTING

ADAPTOR, for version with cab

1шт.

19

103026

NUT,3/8"-24, G5

2шт.
